Solid Carbide Ball Nose End Mill, R6 1pc

Buy Now Ask a question

Buy Now

Specifications

attribute-list
SPECS	4BZ120
Φd1 (h10)	R6 mm
I2	15/16"(24mm)
I1	2 15/16"(75mm)
Φd2(h6)	1/2"(12mm)

Description

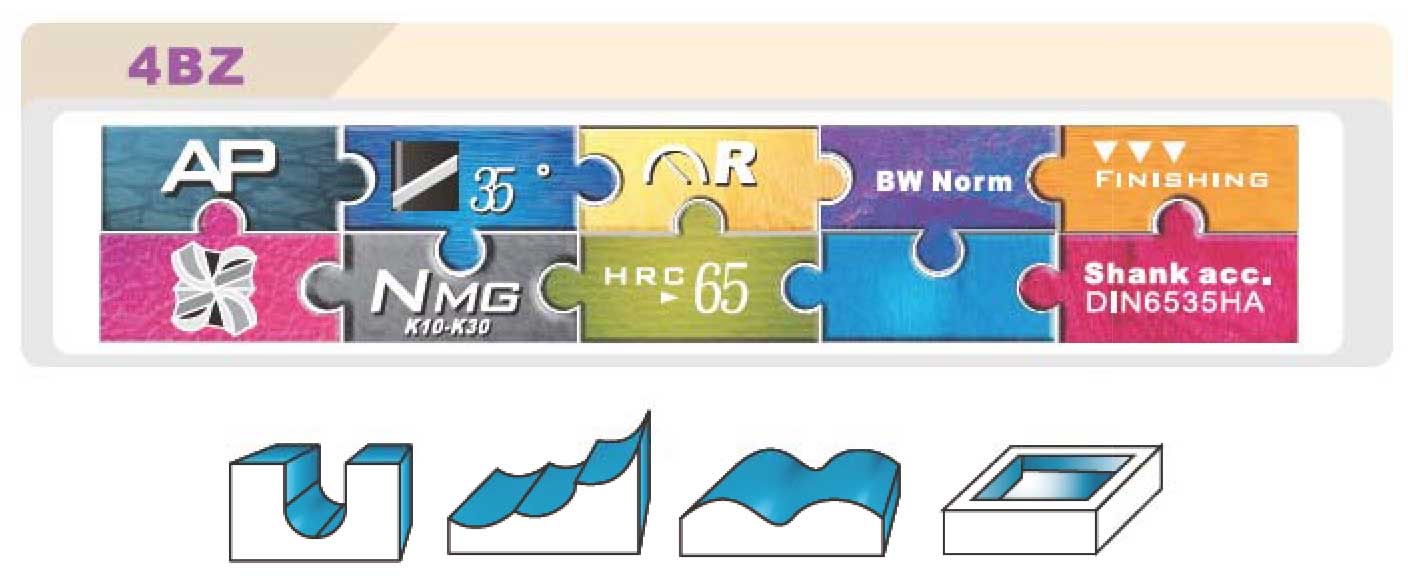

1/2" Diam. 4 Flute, Socoje Solid Carbide Ball Nose End Mill, R6 1pc

About this product

1. Chemical Data : Co(%):9/WC incl.Doping(%):91
2. Density ISO 3369 (g/cm3) : 14.3
3. Hardness HV30 ISO 3878 : 2000
4. Hardness HRA ISO 3778 : 94.1
5. Transverse Rupture Strength (N/mm2) : >4000
6. Transverse Rupture Strength (1000 psi) : >565
7. Microstructure : 0.2
8. ISO-Range: K10~K30
9. Work Material : Carbon fiber-reinforced material, Hardened steel, Titanium alloys, Graphite composite materials, Fiberglass-reinforced material

1/2" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R6, Made In China

Net Weight

0.268 Ibs

122g

Gross Weight

0.275 Ibs
125g

Packing Size

11/16" x11/16" x 3-9/16"

17 x 17 x 90 mm

Material:

Coating:

Work Material:
