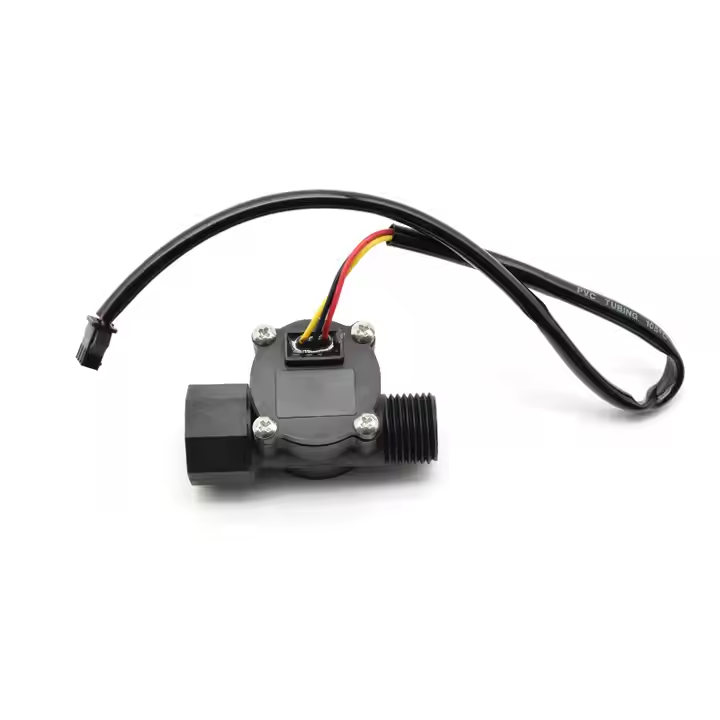

1-30L/min Nylon G1/2 Vertical Pump Flow Sensor 3-24v water heater Flow meter Sensor For Water Treatment Equipment Flow Sensor

1. Internal teeth water ingress, extemal teeth water

ingress

2, Waterproof, explosion-proof, cold and heat resistant

3. Can be used as a metering flow/water flow switch

4. Straight inlet and outlet water

5. Simple structure and convenient installation

Buy Now

Technical Parameters

Use

flow detection flowmeter

Other attributes

Mounting Type

Any direction

Description

flow rate detection

Model Number

SCJ2300127J

Type

Liquid Flow Sensor

Series

flow sensor

Place of Origin

China

Brand Name

SCJ

Theory

Hall principle

Output

Pulse signal output

Description

flow rate sensor

Using objects

Water, etc

Low temperature version

≤60℃

High temperature version

≤115℃

Optional voltage

3V, 5V, 24V

pulseDuty Ratio

50%

insulation resistance

>100MΩ

electric strength

AC500V,50Hz

Flow range

1-30L/min

pressure resistant performance

≤1.75 Mpa

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X8 cm

Single gross weight:

0.500 kg

Description

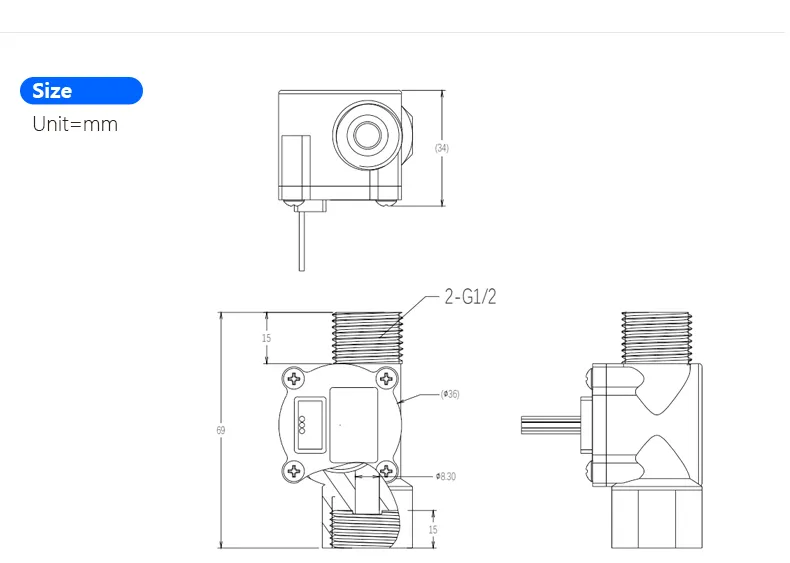

Inner tooth water inlet, outer tooth water outlet, straight line structure, nylon with fiberglass, waterproof and explosion-proof, heat-resistant and cold resistant, 4-point plastic water flow sensor, water flow meter for water vending machines, water flow sensor for water heaters, specification: 70 * 42 * 38mm, can be used as a water flow switch, and can also be used to measure flow, divided into two series.
