- Stock: In Stock
- Model: SCJ004477
- SKU: SCJ004477
Ask a Question About This Product
- Specifications
attribute-list | |
Model | MX1050VS |
Table Size(mm/inch) | 254*1270/10*50 |
Long Travel(mm/inch) | 800/31 |
Cross Travel(mm/inch) | 380/15 |
Vertical Travel(mm/inch) | 400/16 |
T-slot No. And Size(mm/inch) | 3*16/0.12*6.30 |
Ram Travel(mm/inch) | 470/19 |
Distance From Spindle Nose to Table(mm/inch) | 0-400/0-16 |
Spindle Hole Taper | R8 |
Spindle Travel(mm/inch) | 127/5 |
Spindle Speed (r.p.m) | Variable: 60-4200 |
Auto. Quill Feed | Three steps:0.04/0.08/0.15mm/r |
Head Swivel | 90° |
Head Tilting | 45° |
Dimension Of Package(mm/inch) | 1516*1550*2080/60*61*82 |
Weight(kgs/lb) | 1400/3086 |
Spindle Motor | 3HP,220v 60hz 3phase |
- Description
1. High speed milling head from China |
2. Reasonable construction and superior machining functions |
3. Spindle motor: 3HP |
4. Long travel: 31 Cross travel: 15 Vertical travel: 16 |
5. Head swivel: 90° Head tilting: 45° |
6. Table size: 10*50 |
7. Please install and commission the device according to the video |
Standard accessories:
X axis Power Feed |
Draw Bar |
Coolant system |
Working Lamp |
Lubricating |
Splash Guard |
Tools And Box |

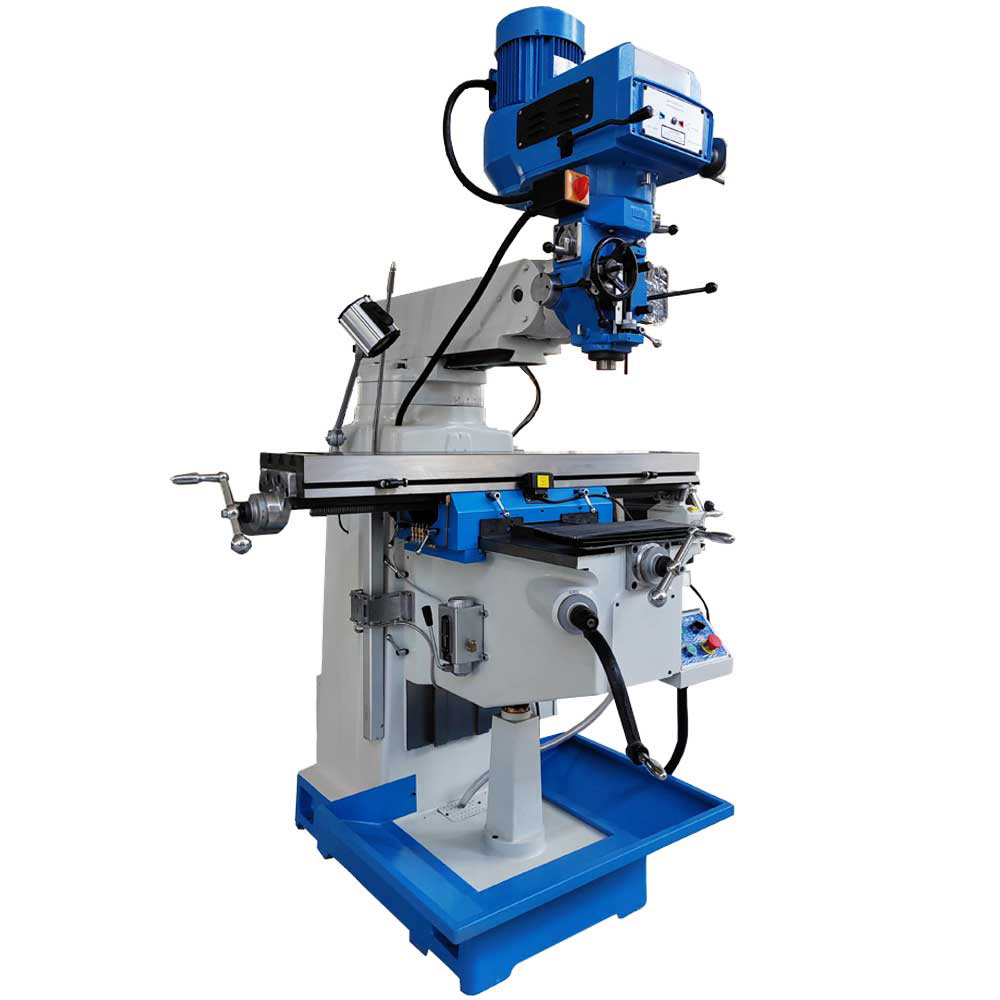

Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane,
inclined plane and slot, and such fun ctions available by use of the corresponding attachments as milling of helix slot, round
surface, rack, gear and spline
1. The electro system has been designed according to the CE standard 2.Rectangular guide way on Y axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material 3.High speed milling head from China 4.Harden the slide way and table surface 5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance 6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving 7.XYZ axis screws are made in China 8.XY screw with two nut make it easy to adjust space between the screw and nut. 9.The XY screw bracket is designed in one base, have good precision and rigidity.
