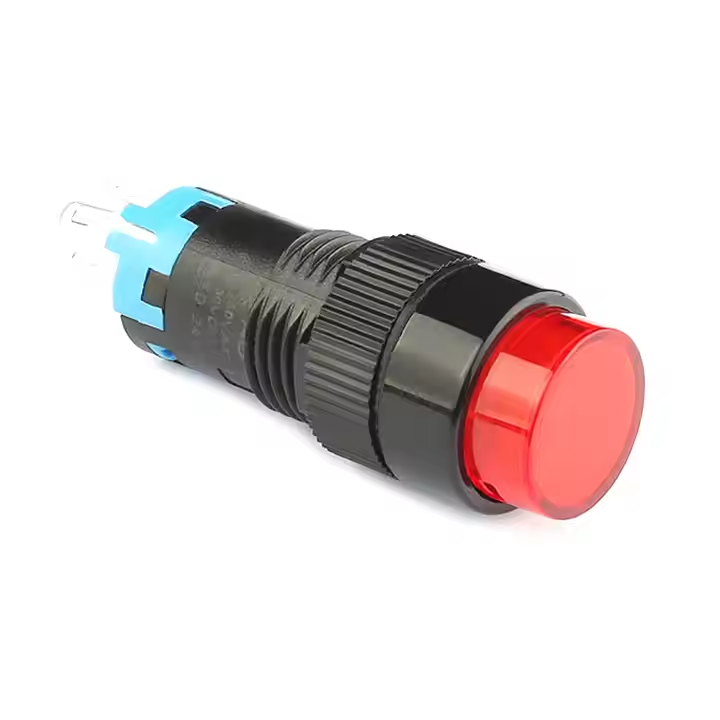

10mm red LED push button switch - micro tactile click switch with light

0 reviews - Write a review

$0.95

Ex Tax: $0.95

Stock: In Stock
Model: SCJ2630138J
Dimensions: 1.20cm x 1.20cm x 3.70cm
SKU: SCJ2630138J

Products Sold: 0

Product Views: 9

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Tiny Size
Red LED Light
Tactile Click
Durable
Easy to Install

Add to Cart

Buy Now

Technical Parameters

Max. Current: 3A

Max. Voltage: 250VAC

contact resistance: <50mΩ

insulation resistance:>100mΩ

dielectrice resistance: 1500V

mechanical life: momentary 200000,alternate 50000

electronic life:momentary 50000,alternate 25000

operating temperature:-5℃ to +75℃

IP code: IP40

button shape: round

indicator voltage: 2V,6V,12V,24V,110V,220V(selective)

LED: Yes

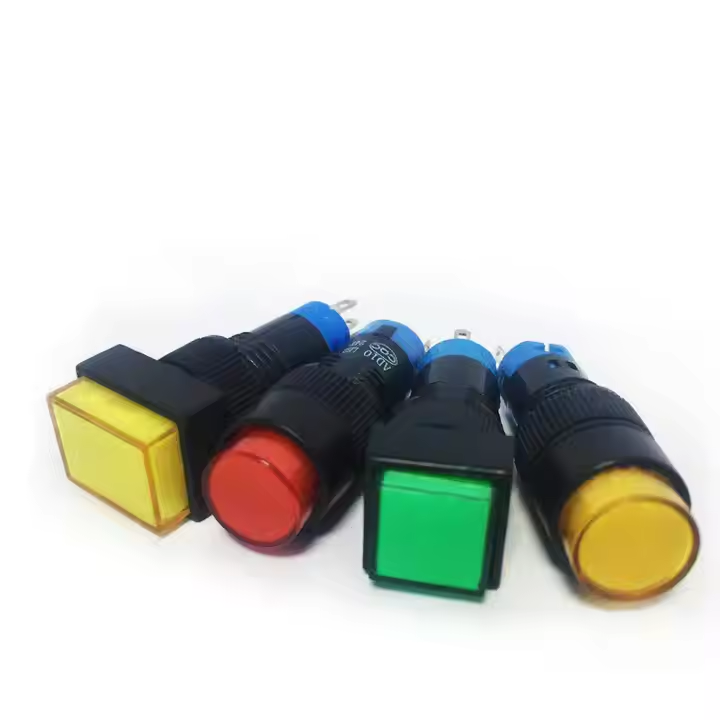

color:red,yellow,green,blue,white(selective)

Whether the smart: NO

Switch Combination: 1NO1NC

Function: 1NO 1NC

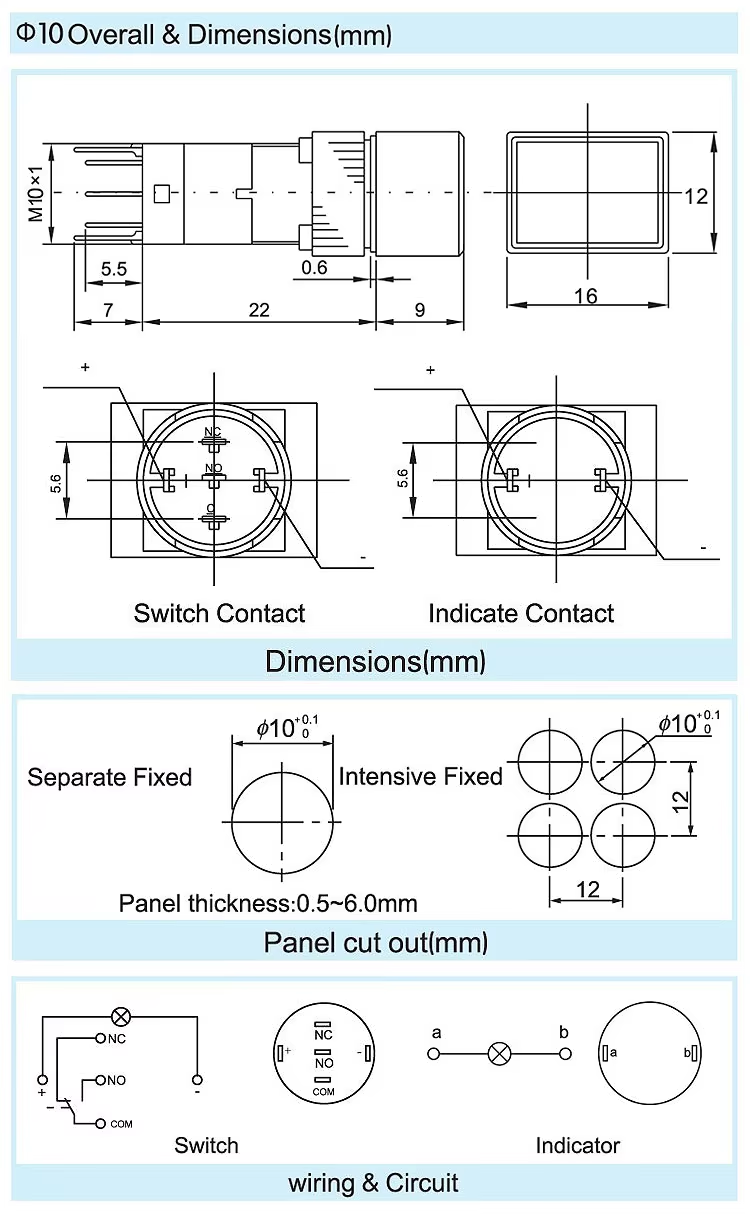

Mounting Hole Size :10mm

Electrical Life: 50,000 cycles

Certification: CQC CE

Packaging and delivery

Selling Units:

Single item

Single package size:

1.2X1.2X3.7 cm

Single gross weight:

0.006 kg

Description

This 10mm micro push button switch is perfect for small projects and devices. It has a bright red LED light that glows when pressed, making it easy to see in the dark. The tactile design gives a satisfying "click" feel, so you know it’s working. Made to fit tight spaces, it’s great for DIY electronics, toys, gadgets, and more. Simple to wire and built to last!

Applications:

Toys & Gadgets

Home Electronics

Game Controllers

DIY Projects

Display Panels
