10pcs SPDT Reed Switch 400mA 175VDC 10-15AT - RI-90
from
$26.56
Ex Tax: $26.56
10 or more $23.63
25 or more $22.31
50 or more $20.98
100 or more $19.92
- Stock: In Stock
- Model: SCJ010408
- SKU: SCJ010408
Products Sold: 0
Product Views: 20
Ask a Question About This Product
- Description

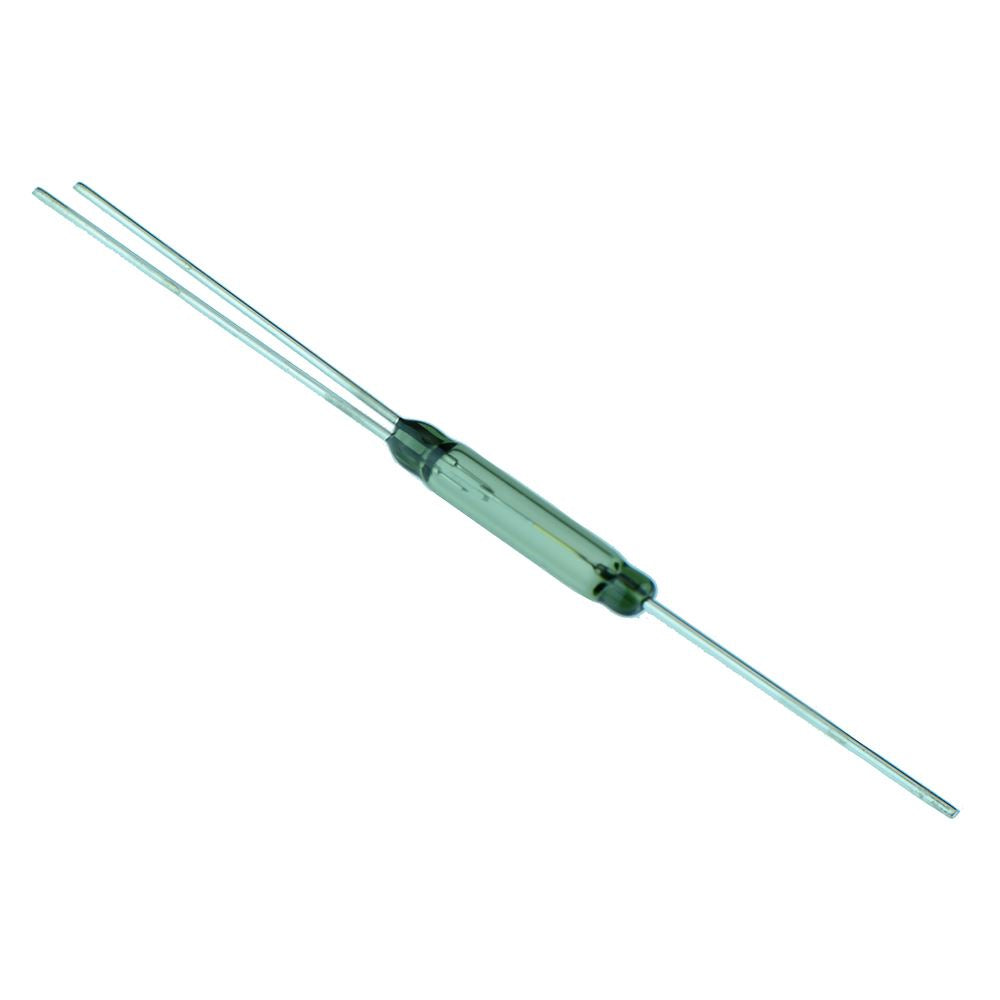

10pcs SPDT Reed Switch 400mA 175VDC 10-15AT - RI-90
The RI-90 ultra-micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open contact and a normally closed contact. The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Pack of 10 switches Ideal for ATE switching and proximity sensors Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 5W Maximum switching voltage: 175VDC, 125VAC Maximum switching current: 400mA/DC 280mA/AC Operating range: 10-15AT
The RI-90 ultra-micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open contact and a normally closed contact. The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
