12PIN PCB Type ON-ON Latching 4PDT Guitar Effect Foot Switches with 3A Max. Current for Musical Instruments
$2.00
Ex Tax: $2.00
100 or more $1.90
1000 or more $1.80
- Stock: In Stock
- Model: SCJ2310013C
- SKU: SCJ2310013C
Products Sold: 0
Product Views: 3
This product has a minimum quantity of 20
Rating 4A 125VAC 2A 250VAC 30VDC 4A
Contact Resistance 50MΩ Max
Insulation Resistance 500VDC 100MΩ Min
Dielectric Strength 1000V AC， 1 Minute
Operatiing Temperature -25ºC~+85ºC
Electrical Life 10000 cycles
Mechanical Life 40000 cycles
Circuit 4PDT
Switch function ON ON LATCHING PCB
Ask a Question About This Product
- Description
12PIN PCB Type ON-ON Latching 4PDT Guitar Effect Foot Switches with 3A Max. Current for Musical Instruments
Design and Functionality

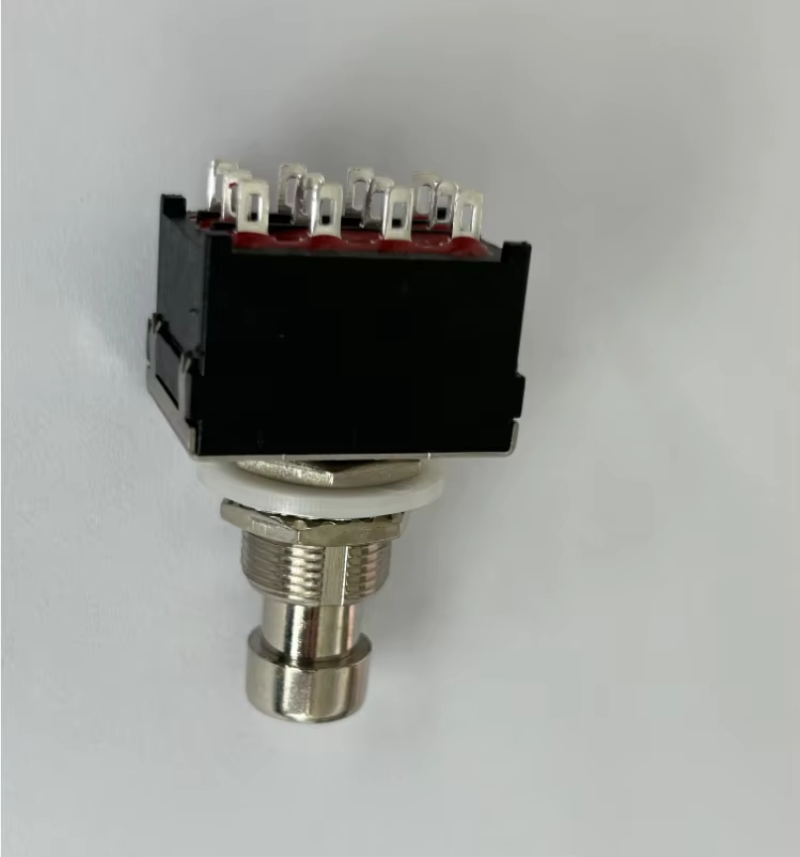

Foot switches are typically designed with a sturdy and ergonomic structure to withstand repeated use. The image above shows a foot switch featuring a robust metal housing and multiple terminals for electrical connections. This design ensures durability and reliability in demanding environments.
Applications
Foot switches are widely used in:
- Musical Instruments: Musicians use foot switches to control effects pedals, allowing hands-free operation of effects during performances.
- Medical Equipment: In medical settings, foot switches enable healthcare professionals to operate machinery without interrupting their workflow.
- Industrial Machinery: Operators can use foot switches to start or stop machines while keeping their hands free for other tasks.
- Photography: Photographers utilize foot switches for remote shutter release, providing stability and reducing camera shake.
Benefits
- Hands-Free Operation: Users can maintain focus on their primary tasks without distractions.
- Increased Safety: Foot switches can help maintain a safer working environment by reducing the need for manual controls in hazardous situations.
- Enhanced Efficiency: By enabling simultaneous operation of multiple devices, foot switches streamline workflows.
