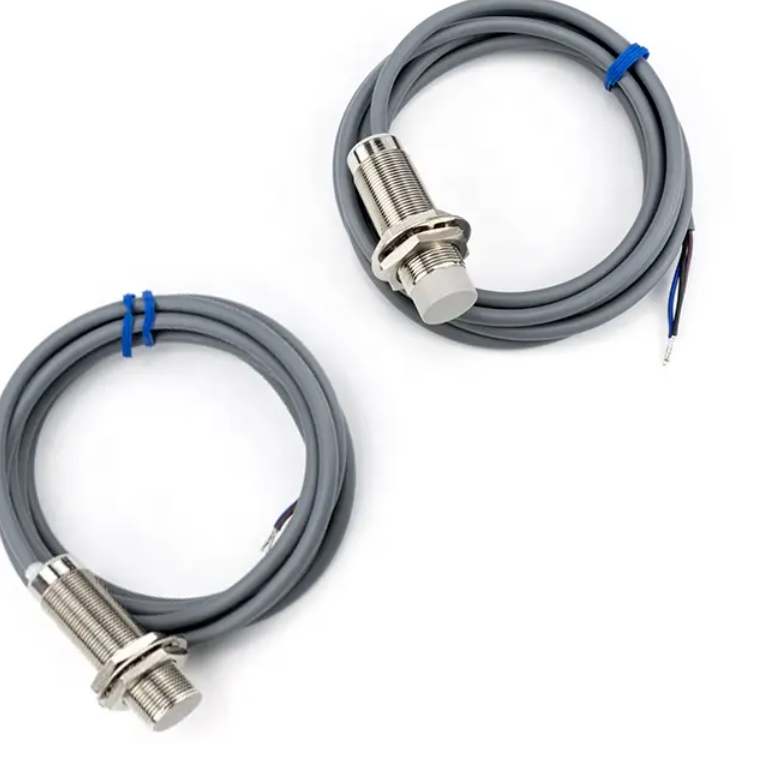

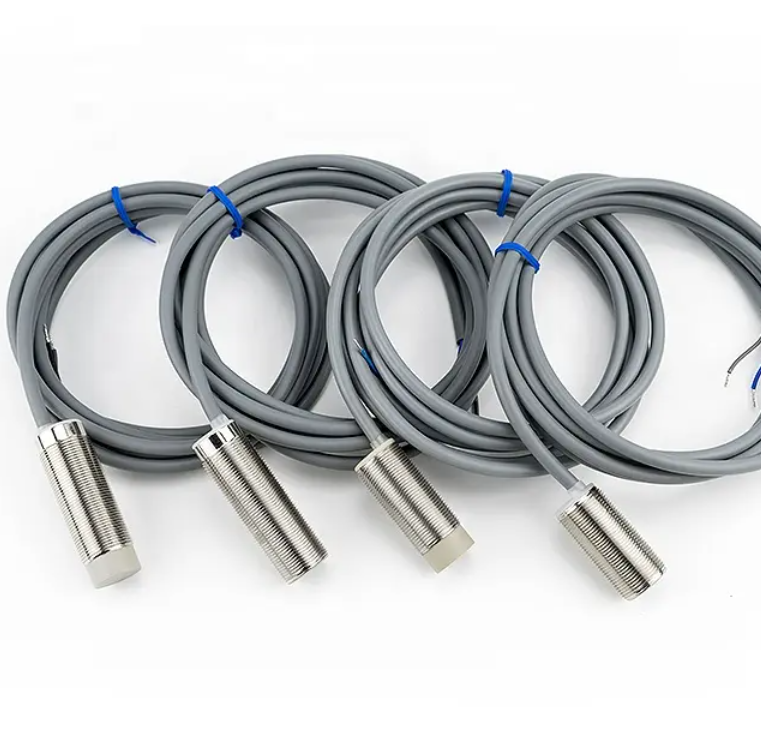

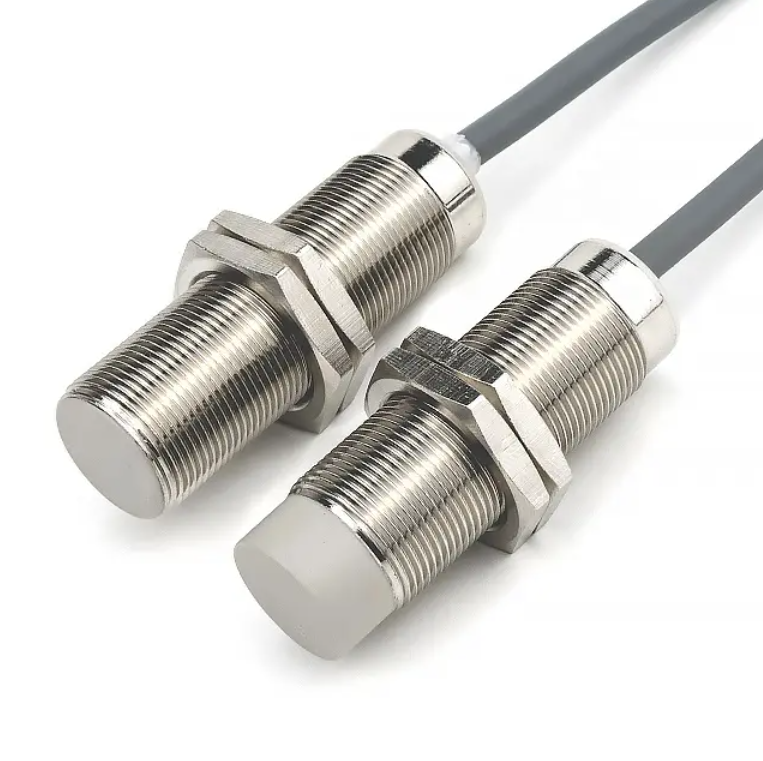

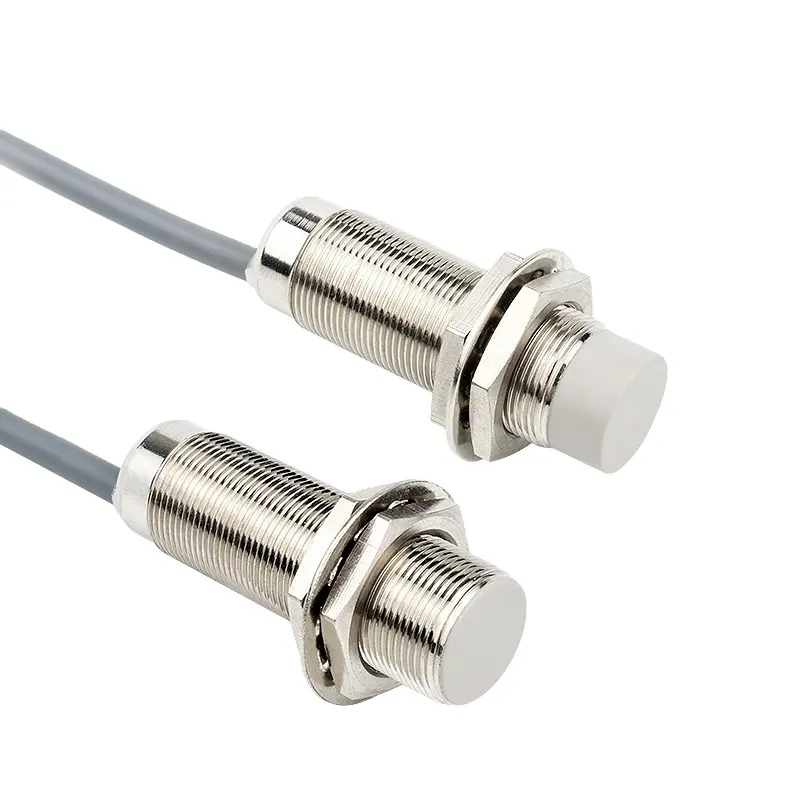

12V or 24V dc 3 wire M18 series PNP inductive proximity sensor switch

Durable Construction: This inductive proximity sensor features a robust brass housing with nickel plating, ensuring a long-lasting and corrosion-resistant performance in various environments.
Versatile Options: The product offers adjustable sensing distances of 5mm, 8mm, 12mm, 16mm, and 20mm, catering to diverse application requirements.
Easy Installation: The sensor can be mounted using a bracket installation method, making it convenient for users to integrate into their systems.
Wide Voltage Compatibility: The 12V or 24V DC 3-wire M18 series PNP inductive proximity sensor can operate within a wide voltage range of 10-30VDC.
Compliance and Warranty: This product meets CE and ROHS standards, and comes with a 12-month warranty, providing customers with peace of mind and protection for their investment.

Buy Now

Technical Parameters

Use

Position sensor

Other attributes

Mounting Type

bracket installation

Description

PNP Output

Model Number

SCJ2300119J

Type

Inductive Proximity Sensor

Series

Inductive Proximity Sensor

Features

12V or 24V dc 3 wire M18 series PNP

Place of Origin

China

Brand Name

SCJ

Theory

Magnetic sensor

Output

NPN PNP NO NC

Description

M18 proximity sensor

Product name

12V or 24V dc 3 wire M18 series PNP inductive proximity sensor

Voltage

10-30VDC

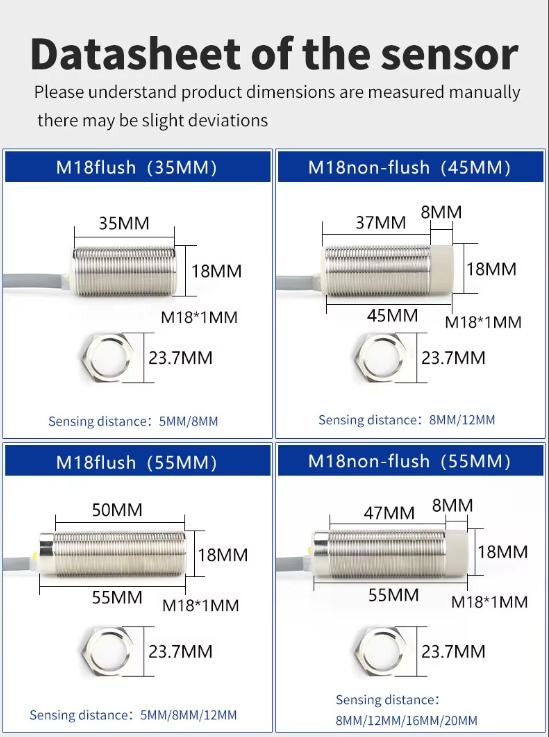

Size

M18*60mm

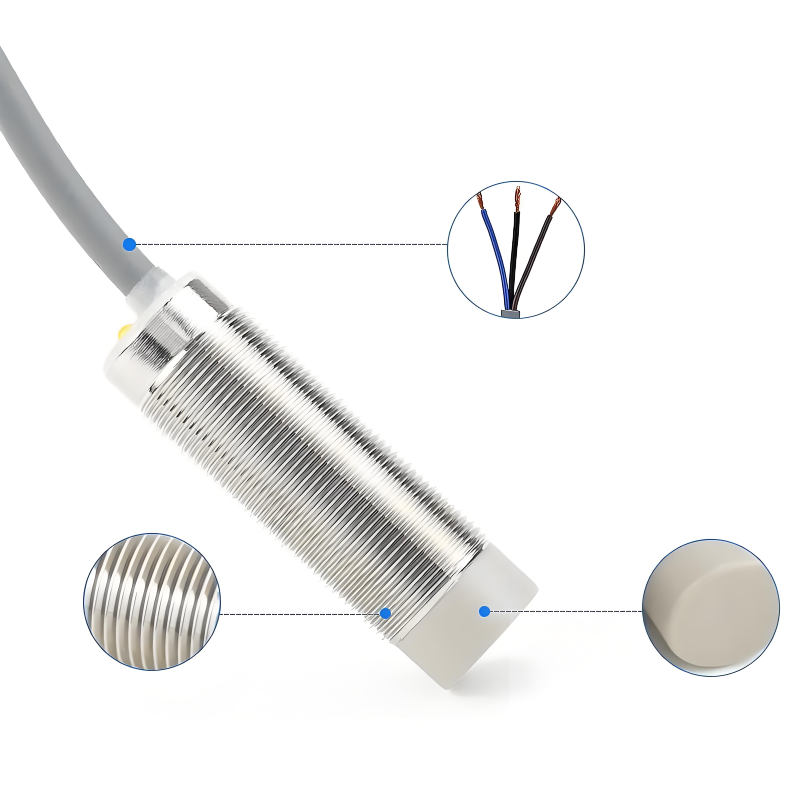

Housing material

brass with nickel

Mounting way

flush/non-flush

Distance

5mm/8mm/12mm/16mm/20mm

Output

NPN/PNP NO/NC

Cable lehgth

2M PVC

Certificates

CE RoHS

Warranty

12 months

Packaging and delivery

Selling Units:

Single item

Single package size:

15X15X5 cm

Single gross weight:

0.300 kg

Description

The sensor generates a high-frequency electromagnetic field through its sensing face. When a ‌ferrous or non-ferrous metal target‌ enters this field, eddy currents are induced on the target surface. This alters the sensor’s oscillation amplitude, triggering a switching action via internal circuitry‌
