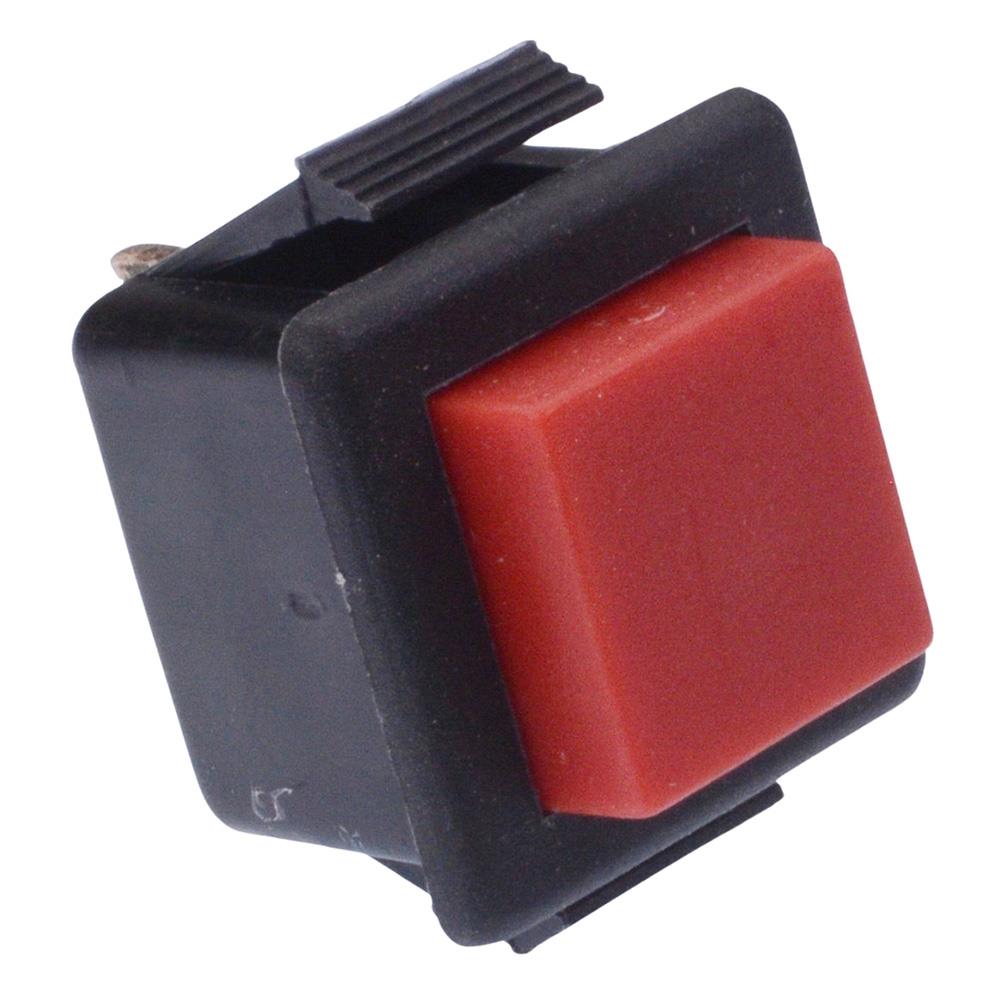

Red On-(Off) Normally Closed Momentary Push Button Switch SPST 3A 1442N

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Material	Silver Plated Copper
Contact Rating	3A 12VDC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-20°C to 55°C
Panel Cut Out	16.5 x 14.3
Panel Thickness	2mm
Product Series	1400N
Switch Operation	On-(Off)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

Red On-(Off) Normally Closed Momentary Push Button Switch SPST 3A 1442N

The 1442N is a red momentary push button switch with snap-in mounting and SPST contacts. The switch features a square plunger and PC terminals making it suitable for panel mounting and PCB applications.

SPST normally closed contacts

PC terminals

Square plunger

Rating: 3A 12VDC

Panel cut-out: 14.3 x 16.5mm

Panel thickness: 2mm max
