Red Momentary Changeover Push Button Switch SPDT 3A 1445NC

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPDT
Contact Material	Silver Plated Copper
Contact Rating	3A 12VDC
Current Rating	3A
Illuminated	No
Electrical Life	10,000 Cycles
Material	Polyamide
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-20°C to 55°C
Panel Cut Out	16.5 x 14.3
Panel Thickness	2mm
Product Series	1400N
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

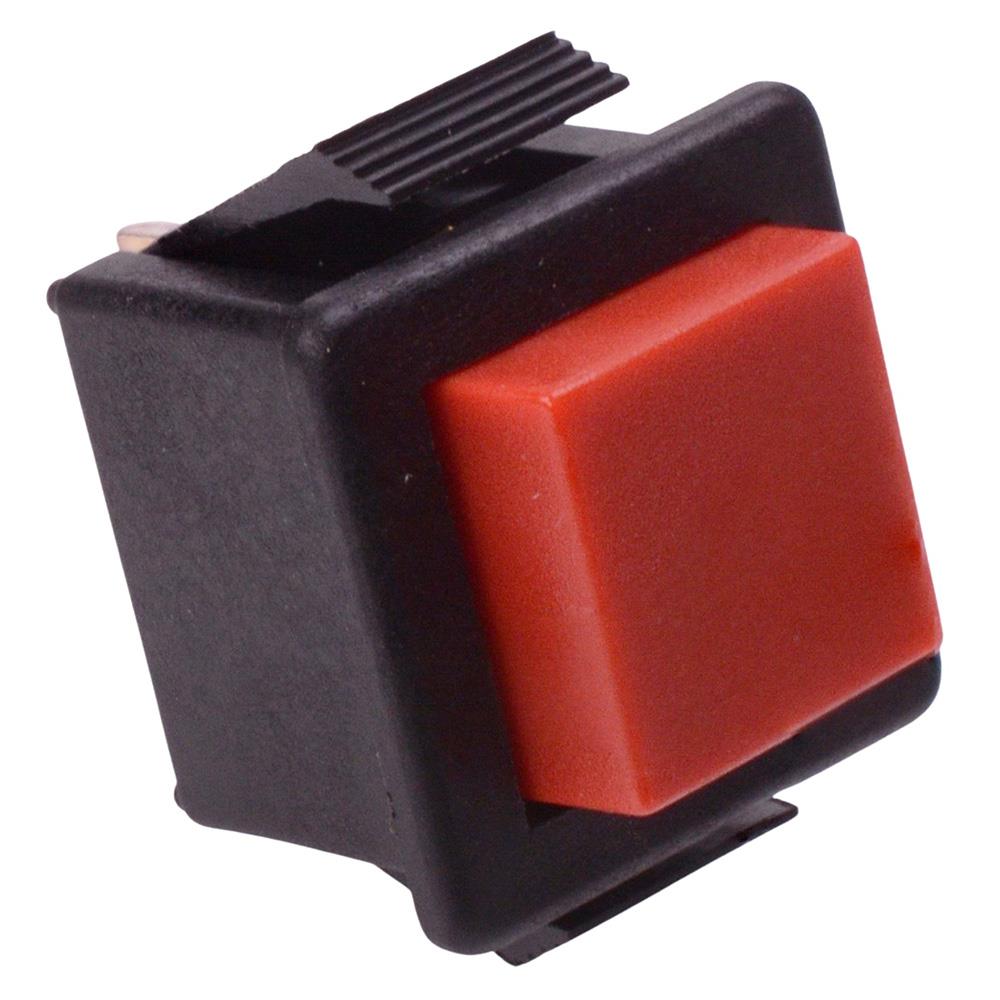

Red Momentary Changeover Push Button Switch SPDT 3A 1445NC

The 1445NC is a red momentary push button switch with snap-in mounting and changerover contacts. The switch features a square plunger and PC terminals making it suitable for panel mounting and PCB applications.

SPDT changeover contacts

PC terminals

Square plunger

Rating: 3A 12VDC

Panel cut-out: 14.3 x 16.5mm

Panel thickness: 2mm max
