150W Socoje CO2 Laser Tube 1650mm Long 80mm Dia. With Advanced Coating 10000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved 1pc
from
$450.00
Ex Tax: $450.00
2 or more $428.00
5 or more $405.00
10 or more $383.00
- Stock: In Stock
- Model: SCJ004179
- SKU: SCJ004179
Products Sold: 0
Product Views: 653
Ask a Question About This Product
- Description

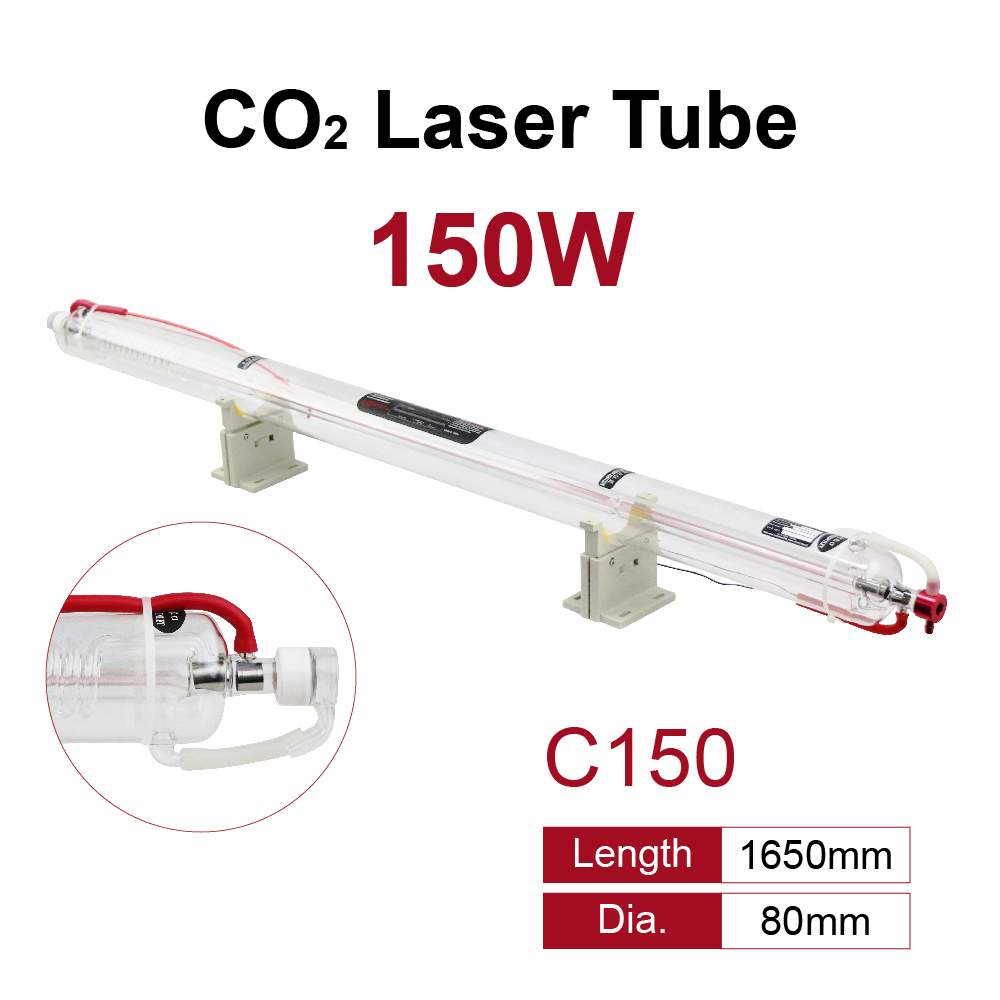

150W Socoje CO2 Laser Tube 1650mm Long 80mm Dia. With Advanced Coating 10000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved 1pc
About this product
1.Model:C150;Power:150W;Length:1650mm;Diameter:80mm;Lifespan:10000 hours.
2.Universal model, great replacement for the same power or same length laser tube.You can install it very easy per the drawing on the label of each tube.
3.Advanced manufacturing technology effectively avoids leakage and sparks;High-quality boron silicate glass material,advanced coating technology and full of catalyst in the tube, effectively improve the service life and increase the laser power.
4.In order to make the installation more convenient,the high and low voltage port have been pre-welding and also been connected by the high voltage connector.
5.150W laser tube in new design is length shortened and power keeping strong in 150W even stronger than 150W. This owes to our unique technology on catalyst using. Shorten length is very helpful to the user: to save shipping costs, to save space ect.
6.If it is damaged during transportation, please contact us to provide a new replacement free.
Model# C150
| Model# | C40 | CL80 | C80 | C100 | C130 | C150 | C170 | |
| Rated power(W) | 40 | 80 | 80 | 100 | 130 | 150 | 170 | |
| Max power(W) | 50 | 100 | 100 | 130 | 150 | 170 | 180 | |
| Length(mm) | 700 | 1600 | 1250 | 1450 | 1650 | 1650 | 1850 | |
| Diameter(mm) | 50 | 60 | 80 | 80 | 80 | 80 | 80 | |
| Catalyze or not | yes | yes | yes | yes | yes | yes | yes | |
| Wave length | 10.6um | 10.6um | 10.6um | 10.6um | 10.6um | 10.6um | 10.6um | |
| Diode current(mA) | 5 | 5 | 5 | 5 | 6 | 7 | 7 | |
| Diode voltage(KV) | 17 | 28 | 23 | 24 | 28 | 30 | 32 | |
| Working voltage | 10 | 18 | 16 | 17 | 18 | 22 | 23 |
Package Content: 1×Laser Tube
Packing size : 71.18×6.89×8.07IN
Gross weight:14.99LB
Good package : packing in double carton
FDA certificate is available
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine.
It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials.
Note: After generally working 3-4 hours, it should pause for about 30 minutes.
High warranty and long lifespan CO2 laser tube 150W (1650mm * 80mm )

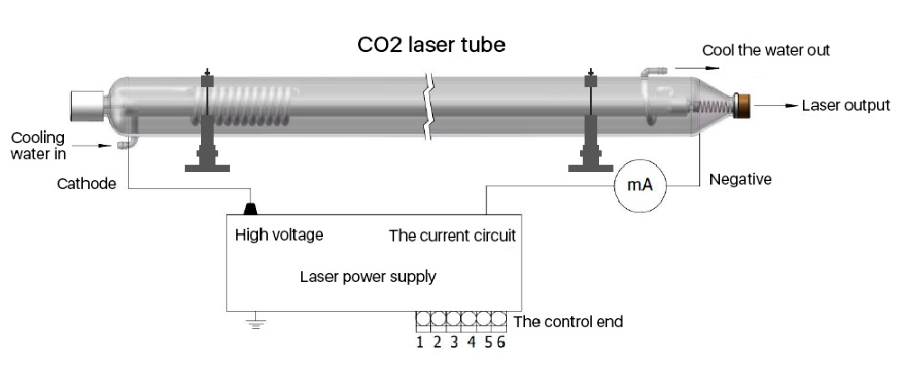

Installation Drawing
