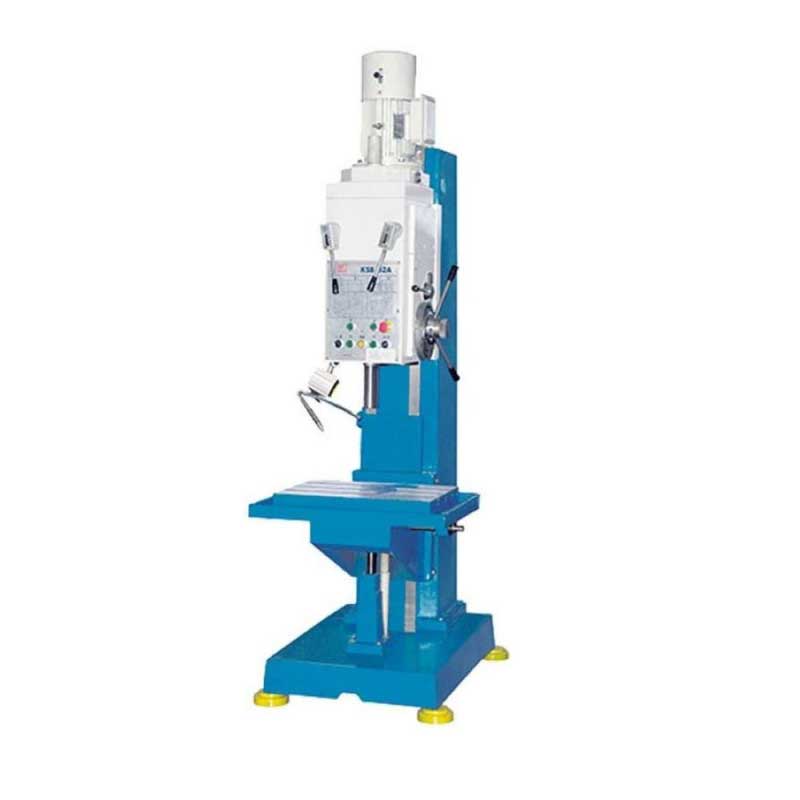

16" x 22" Socoje Box-Column Drill Press - 220Vac 60Hz 3HP KSB 32 A 1 set
About this product
-Drilling capacity 1.26 in
-Throat 11 in
-Spindle mount MT 4
KNUTH is your complete source for finding the perfect CNC machine, milling machine, lathe, drill press, or cutting machine. The KSB 32A has Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks used in the metalworking industries.
-Drilling capacity 1.26 in
-Throat 11 in
-Spindle mount MT 4
-Box-column design provides high load capacity and is torsion-proof and rigid
-Table and drill head can be moved individually for an optimum machining height
-9-step feed and speed gears, with oil-bath lubrication
-High torque across the entire speed range
-Thread-cutting unit automatically reverses upon reaching the preset depth

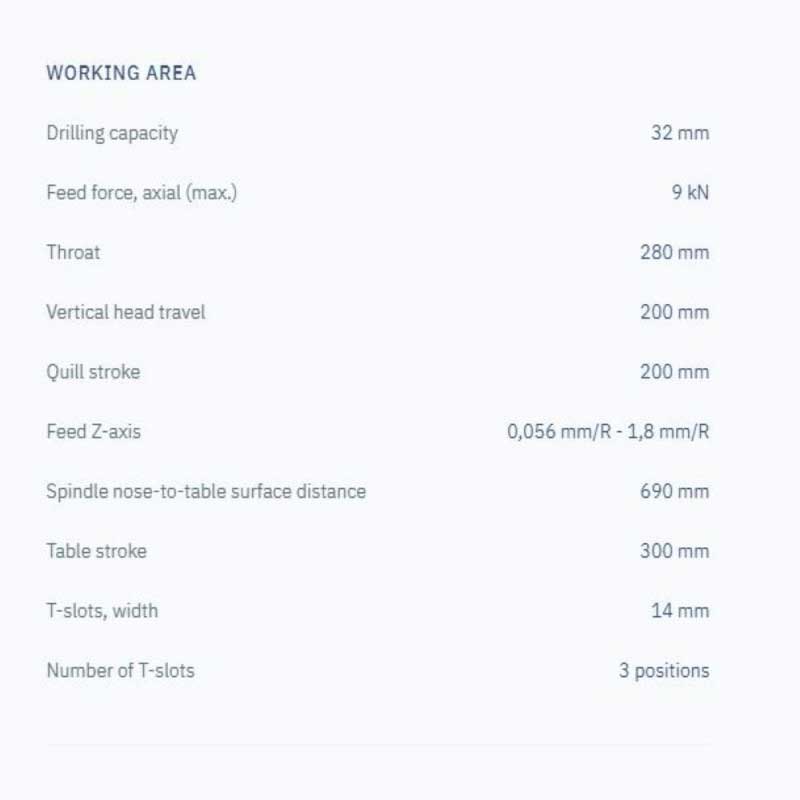

| Working Area | |
| Drilling capacity | 1.26 in |
| Feed force, axial (max.) | 9,000 kN |
| Throat | 11 in |
| Vertical head travel | 8 in |
| Quill stroke | 8 in |
| Roller speed | 234 in/min |
| Feed Z-axis | (9) 0 - 0.07 in/R |
| Spindle nose-to-table distance (max.) | 27 in |
| Table stroke | 12 in |
| Number of T-slots | 3 positions |
| Table set up area | 16x22 in |
| T-slots, width | 0.6 in |
| Headstock | |
| Headstock torque | 1,416 ft.lb. |
| Spindle mount | MT 4 |
| Spindle speed | (9) 50 - 2,000 RPM |
| Drive capacity | |
| Motor rating main drive | 3 Hp |
| Motor rating coolant pump | 0.1 Hp |
| Measures and Weights | |
| Flow rate | 6.6 gal/min |
| Overall dimensions (length x width x height) | 37.8x33.46x92.13 in |
| Weight | 2,090 lbs |
