16x16 Inch Socoje Desktop CNC Router For Aluminum Wood Processing With High Speed And Good Quality 1 set
from
$6,700.00
Ex Tax: $6,700.00
- Stock: In Stock
- Model: SCJ004035
- SKU: SCJ004035
Products Sold: 0
Product Views: 250
Ask a Question About This Product
- Specifications
attribute-list | |
Working Area | 16" x 16" x 7.9" (400mmx400mmx200mm) |
Table | T-slot |
Tbale Size | 35.4" x 35.4 " (900mmx900mm) |
Spindle power | 2.2kw |
Driving mode | ball screw on alll axis |
Cut thickness of material | ≤2" (50mm) |
Max. Working Speed | 197 IPM (5000mm) |
Spindle Speed | 0-18000rpm |
Traveling Positioning Accuracy | ±0.05mm |
Working Voltage | AC 220V Single Phase 60Hz |
Collet | ER20 0.04"-0.51" (1-13mm) |
Max. Power | 3kw |
MOTOR | Stepper Motor |
Software | Type3, Ucancam, Artcam, AutoCAD |
Command Language | G code, *uoo, *mmg, *plt, *nc |
Control System | DSP System |
Running circumstance temperature | 0 - 45°C |
Relative humidity | 30% - 75% |
warranty: | one year |
- Description
16x16 Inch Socoje Desktop CNC Router For Aluminum Wood Processing With High Speed And Good Quality 1 set
About this product
1. 3HP 220V Signle Phase
2. Max Spindle RPM: 18000 RPM
3. Controller: DSP Handle
4. Ball Screw: On All Axis
5. Machine Work Table: 16 inches X 16 inches
Application:
1. PVC materials, plastic, bamboo, acrylic, ABS, even some soft metal like aluminum will also be OK.
2. Wood: can process redwood furniture products.
3. Advertisement: advertisement label, marking made, aic cutting, mold, gifts, woodworking building model processing and production.
4. Other industries: produce exquisite relief, video sculpture, three-dimensional art works.
Details:
The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location.

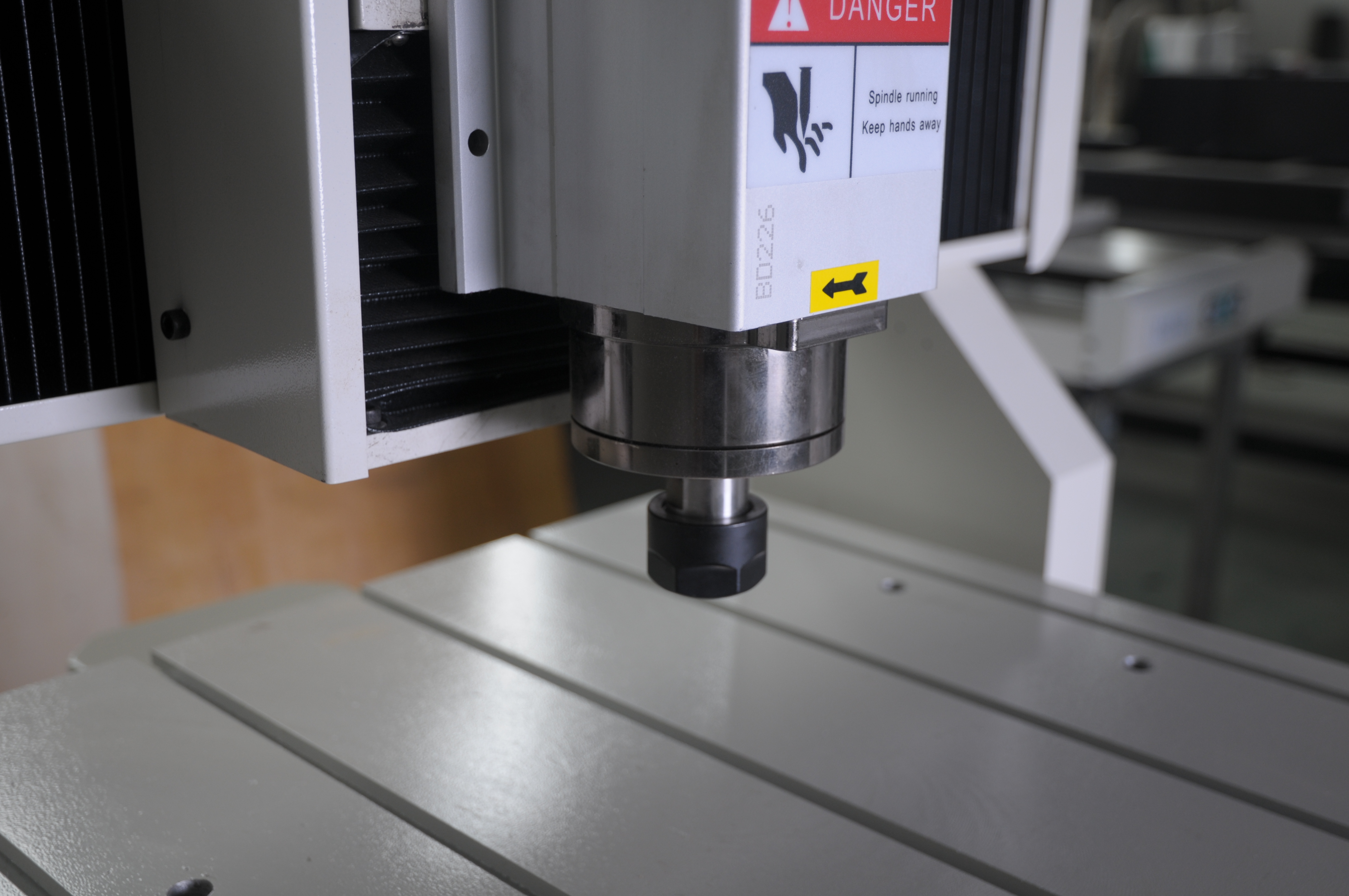

Quality 2.2W spindle, air cooling method.
ER20 Collet
The handheld controller attaches to the DSP control box that makes it easy to oversee any project from a variety of positions.
It supports NC files, TXT file and standard G Code.
The softwares we suggest are Artcam and UG, CAD is also ok.
