- Stock: In Stock
- Model: SCJ004064
- SKU: SCJ004064
Ask a Question About This Product
- Description
1. Laser Power: 180W; Engraving Area: 1300*900mm; Max. Engraving Speed: 0-1200 mm/s. Max. Cutting Speed: 0-300 mm/s. Repeat Positioning Accuracy: ±0.01mm
2. Laser Source: RECI W8 CO2 Laser Tube; Control System: Ruida DSP; Focusing Lens and Mirrors: American Ⅱ-Ⅳ and Singapore Wavelength; Stepper Motor&Driver: YAKO; Guide: PMI Linear Guide; Water Cycle Cooling: S&A Water Chiller CW5000.
3. Engraving or Cutting Materials: Acrylic, Plywood, Wood, Bamboo, Plexiglas, Crystal, Leather, Rubber, Marble, Ceramics, Nonmetals.etc.
4. File Format: plt./dst./dxf./bmp./dwg./ai./las. Support AutoCAD, CoreDraw Output Directly.
5. Customer and Technical Support. User Manual, Software CD and Video Training Enclosed.
Material | Engrave | Cut | Material | Engrave | Cut |
Wood | √ | √ | Pressboard | √ | √ |
Acrylic | √ | √ | Rubber | √ | √ |
Fabric | √ | √ | Wood Veneer | √ | √ |
Grass | √ |
| Fiberglass | √ | √ |
Coated Metals | √ |
| Painted Metals | √ |
|
Ceramic | √ |
| Tile | √ |
|
Delrin | √ | √ | Plastic | √ | √ |
Cloth | √ | √ | Cork | √ | √ |
Leather | √ | √ | Corian | √ | √ |
Marble | √ |
| Anodized Aluminum | √ |
|
Matte Board | √ | √ | Stainless steel |
|
|
Melamine | √ | √ | Brass |
|
|
Paper | √ | √ | Titanium |
|
|
Mylar | √ | √ | Bare Metals |
|
▶Adopt high-precision linear guide rail drive to make the optical path more stable, cutting and engraving better.
▶Using DSP control system, fast speed, simple operation, high-speed engraving.
▶The beam structure is made of high-strength aluminum alloy, which has the advantages of light weight, low resonance and smoother running than traditional steel frame beams.
▶Box-type exhaust device to ensure clean working environment
▶Very suitable for cutting a whole plate of MDF, acrylic and other materials

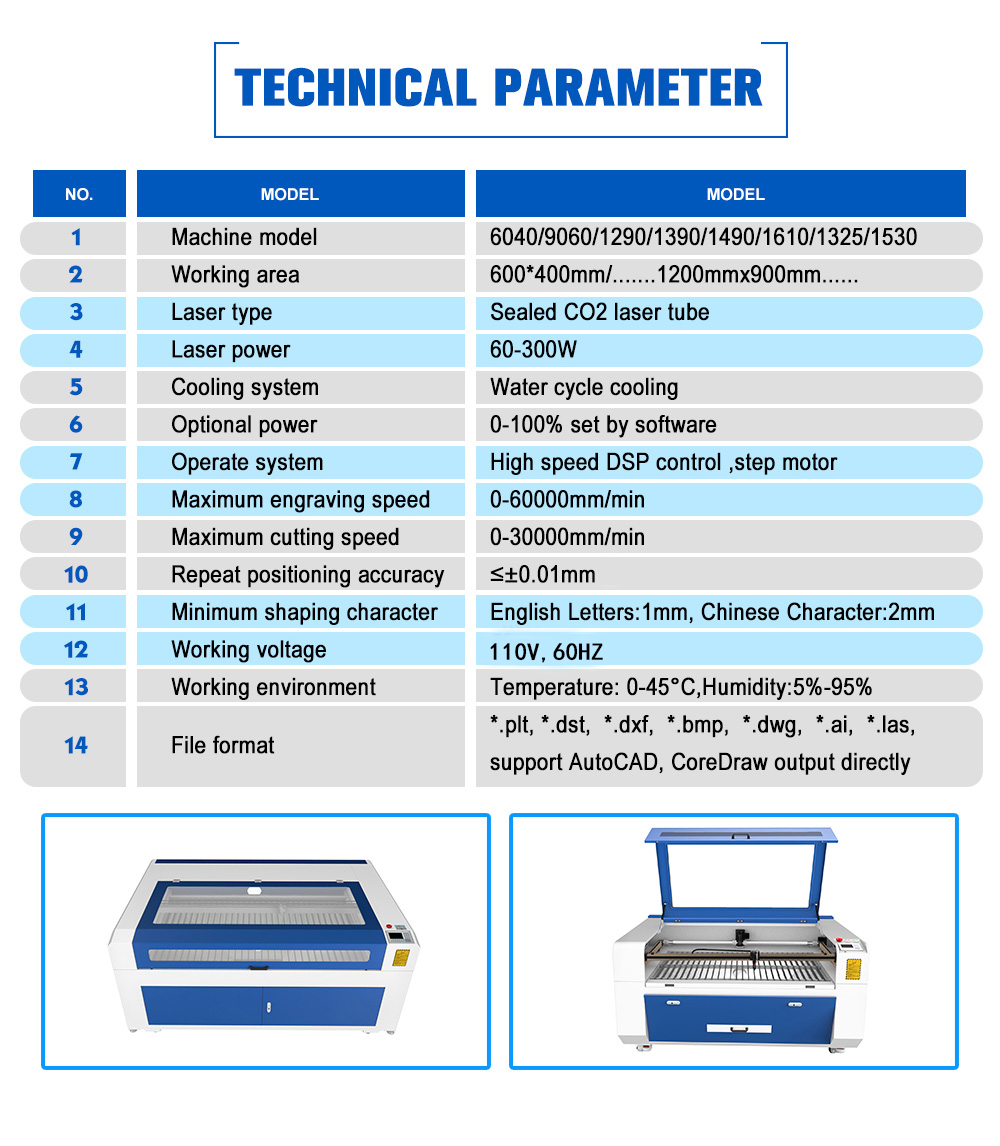

Technical Parameters:
●Laser Power: 180W
●Laser Source: RECI W8 CO2 Laser Tube
●Engraving Size: 1300*900mm
●Cutting Speed: 0-300mm/s
●Engraving Speed: 0-1200mm/s
●Min. Charactor: 1.0mm*1.0mm
●Control System: Ruida DSP System
●Cooling Way: Water Cycle Cooling(S&A Water Chiller CW-5200)
●Input Voltage: 110V, 60Hz
●File Format: .plt .dxf .dst .ai .bmp .las. CAD,CoreDraw,etc.
●Overrall Size: 1840*1420*1050mm
●Packing Size: 1950*1930*1270mm
●G.W: 430 Kg
This Listing Include:
●Laser Cutter Machine(Pass Through Doors)
●RECI W8 CO2 Laser Tube
●Blade Type Workbench 1300*900mm
●S&A Water Chiller CW-5200
●Exhaust Fan

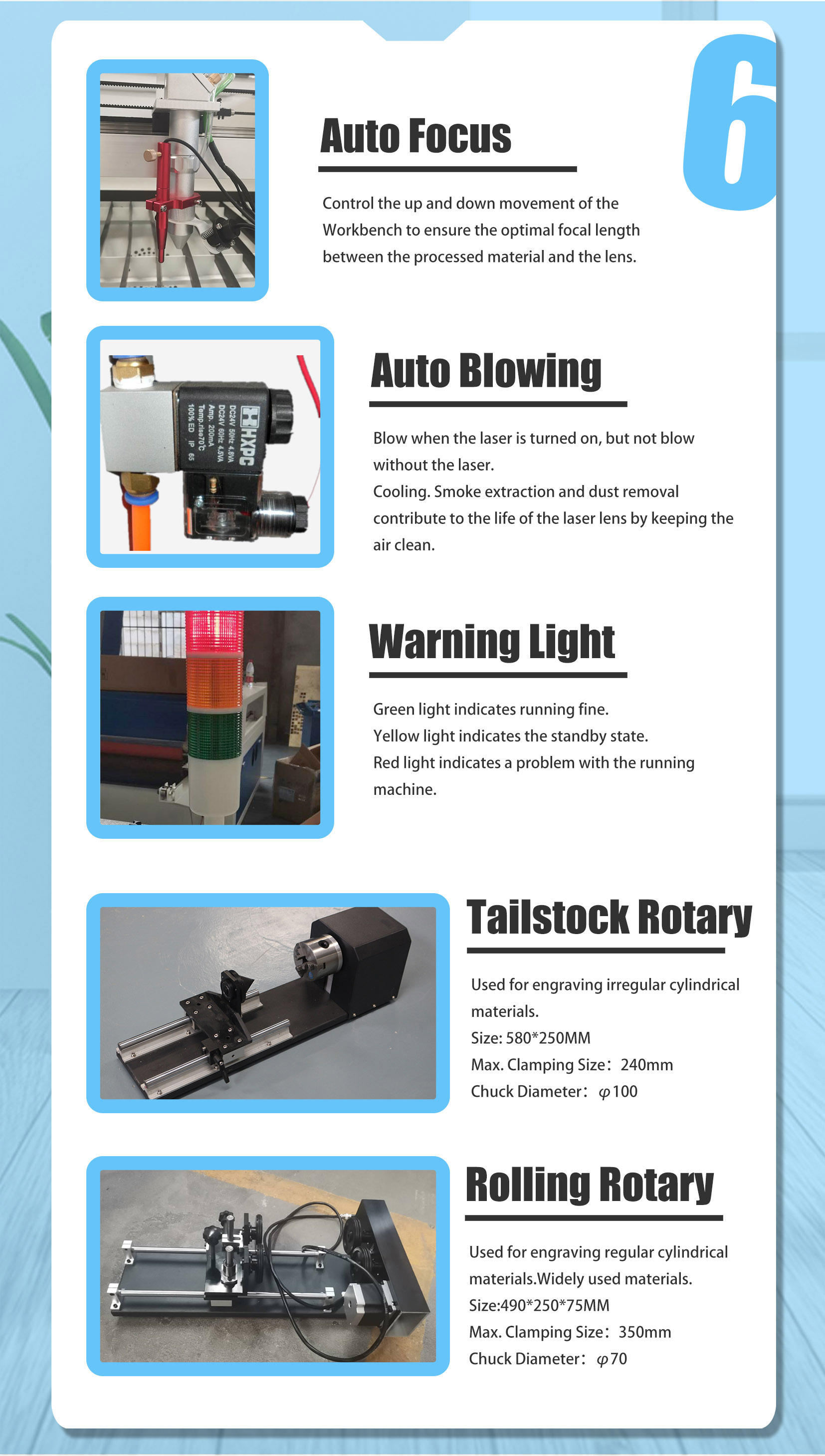

●Red Dot Pointer
●Auto Focus
●HoneyComb Workbentch 1300*900mm
●Lifting Workbentch
●Open Cover Protection
●Warning Light
●Auto Blowing
