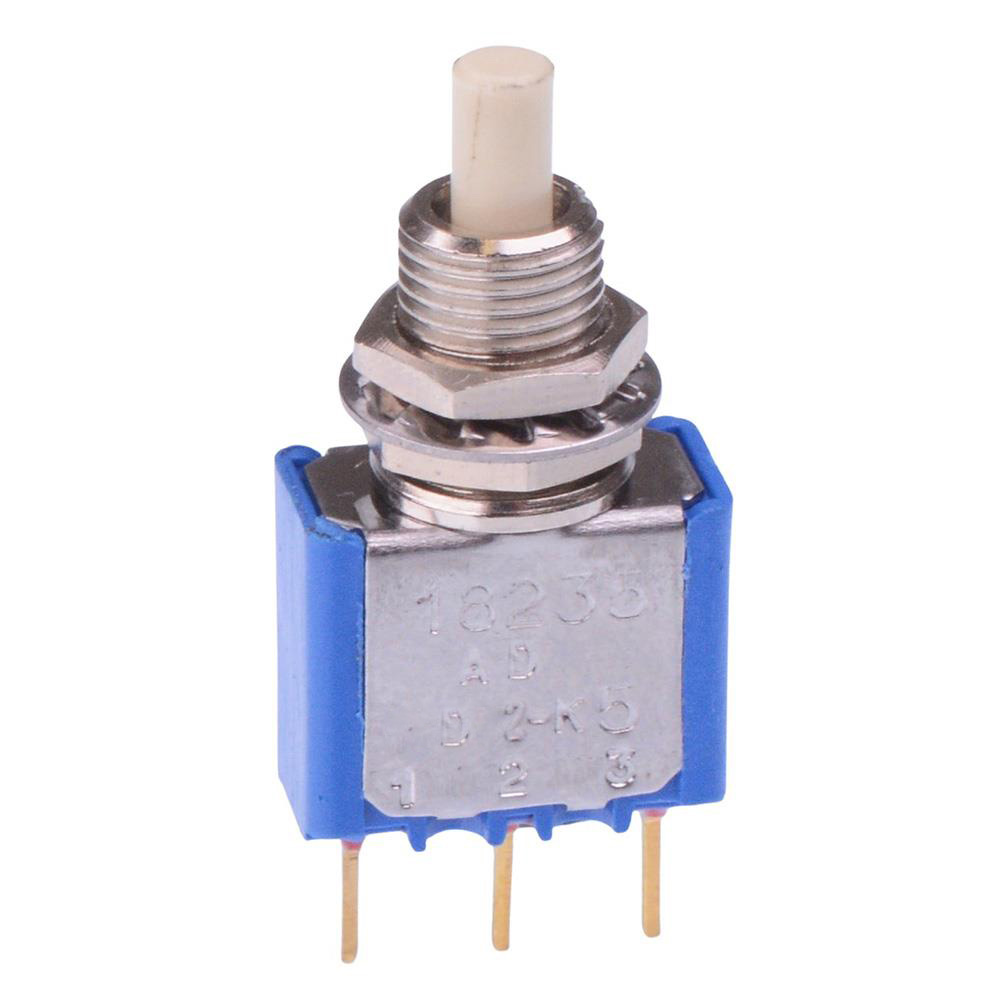

On-(On) Momentary PCB Push Button Switch SPDT 1A 30VDC 18235AD5

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Material	Gold Plated Silver
Contact Rating	1A 30VDC
Current Rating	1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	6.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

On-(On) Momentary PCB Push Button Switch SPDT 1A 30VDC 18235AD5

The 18235AD5 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB and panel mount applications.

On-(On) momentary operation

SPDT contacts

Rating: 1A 30VDC

6.35mm threaded bushing

PCB terminals

6.5mm panel cut-out

Gold plated silver contacts

Plunger: 3.1 x 6.3mm (diameter x height)

Terminal pitch: 4.7mm
