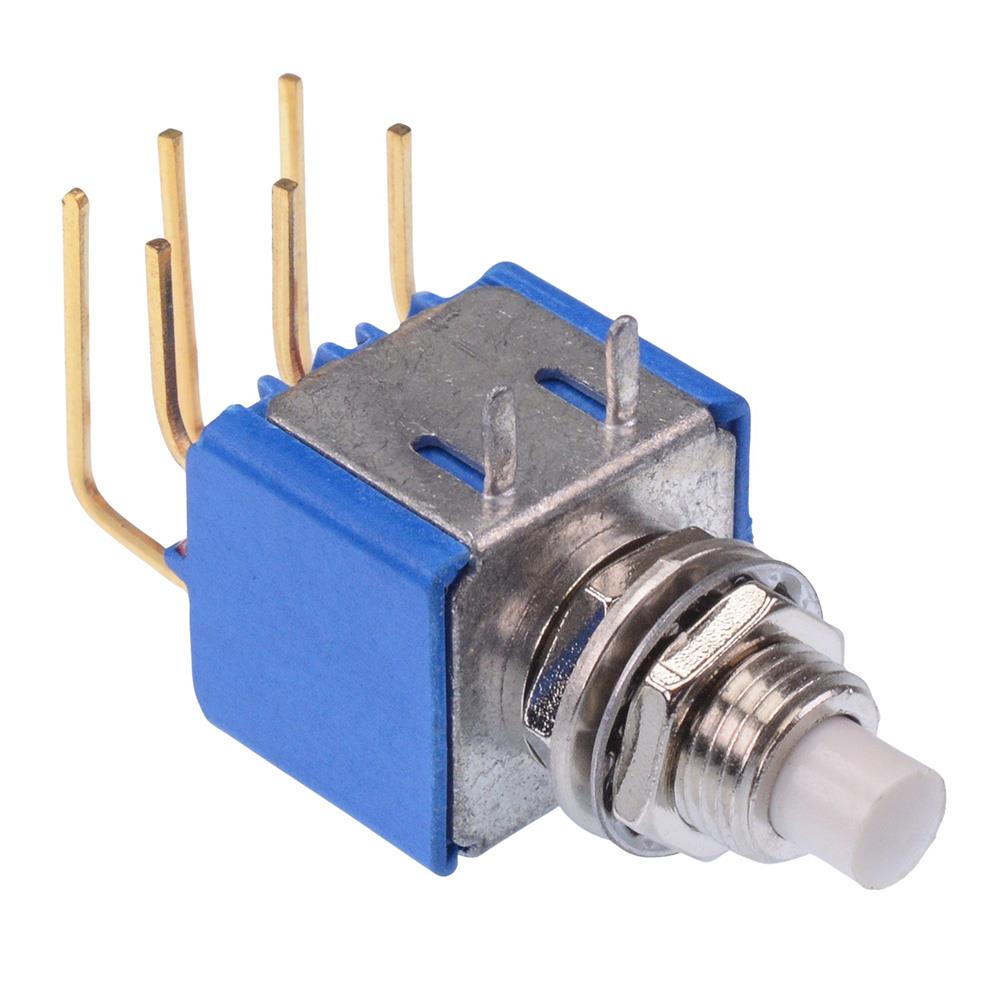

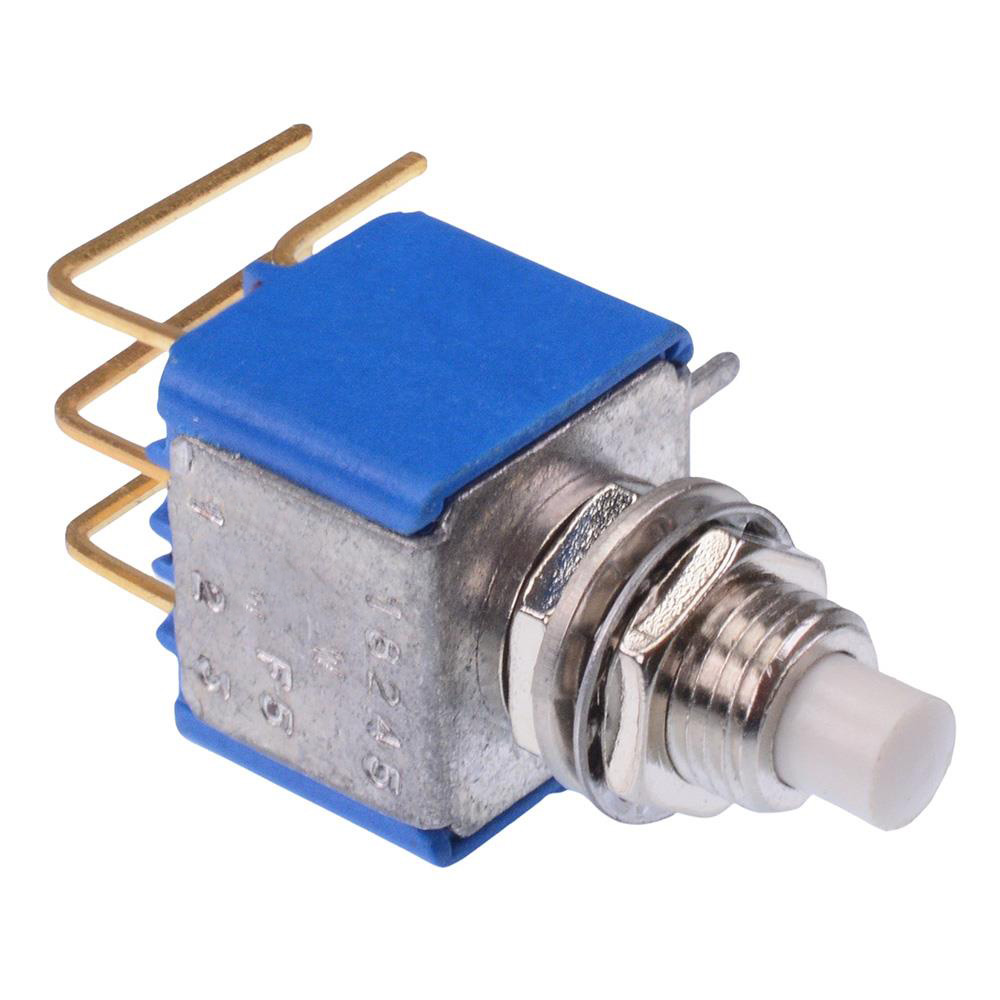

On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC 18245WCD3X386

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to 65°C
Panel Cut Out	6.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC 18245WCD3X386

The 18245WCD3X386 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for panel and PCB applications.

On-(On) momentary operation

DPDT contacts

Rating: 0.1A 30VDC

6.35mm bushing

Right angle PCB terminals

Horizontal mounting

6.5mm panel cut-out

Gold plated brass contacts

Short plunger (4mm diameter)

Terminal pitch: 4.7mm
