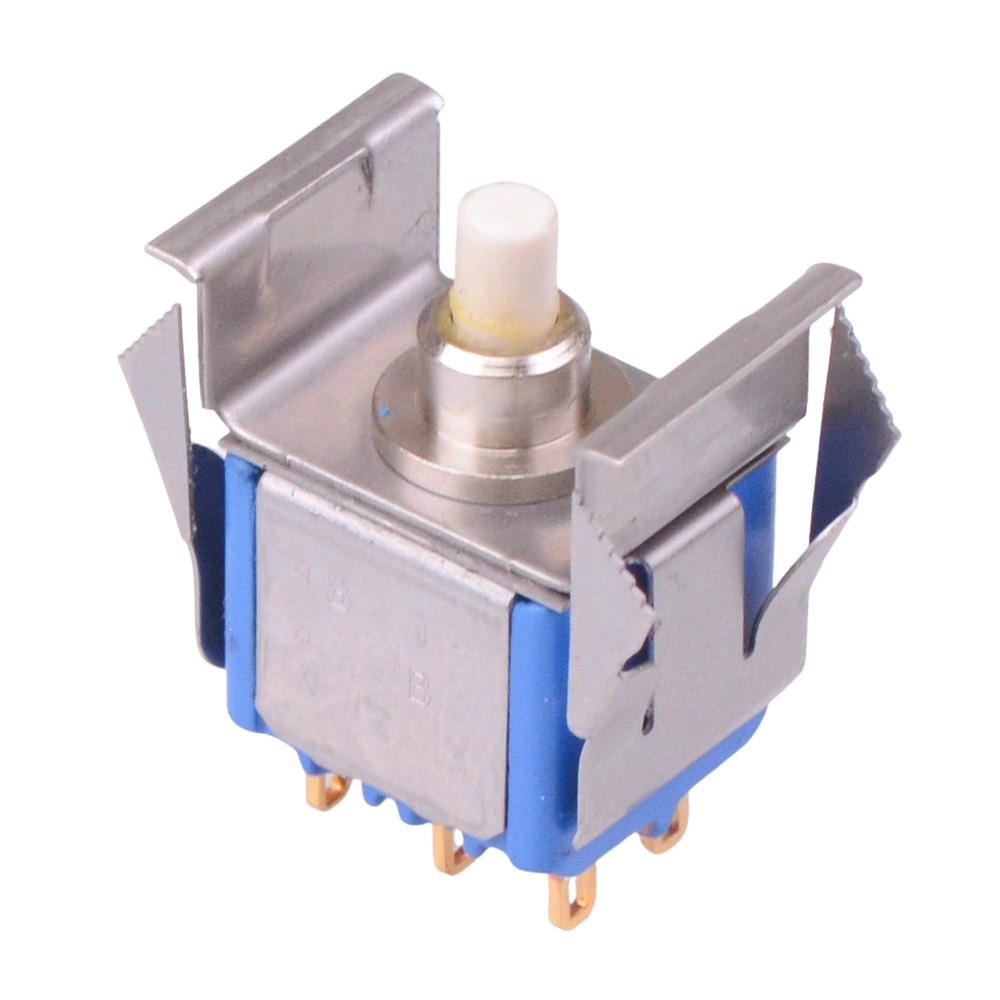

On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC 18845CD

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Contact Configuration	DPDT
Contact Material	Gold Plated Brass
Contact Rating	0.1A 30VDC
Current Rating	0.1A
Illuminated	No
Electrical Life	60,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-30°C to +65°C
Panel Cut Out	15 x 12.5mm
Panel Thickness	2.5mm
Pitch	4.7mm
Product Series	18000
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	30VDC

Description

On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC 18845CD

The 18845CD is a snap-action momentary push button switch, featuring a positive tactile feedback when pressed and suitable for panel mount applications.

On-(On) momentary operation

DPDT contacts

Rating: 0.1A 30VDC

Panel cut-out: 15 x 12.5mm

Solder terminals

Gold plated brass contacts

2.5mm max panel thickness

Terminal pitch: 4.7mm
