Variable Speed 1HP Mill Drill Milling Machines BT20V 1 set

Buy Now

Specifications

attribute-list
Model	BT20V
Table size:	19-11/16" x 7-1/16"
Max End Milling Capacity	3/4"
Max. Drilling Capacity	3/4"
Step of Spindle Speeds	Variable
Spindle Taper	R8
Max. Face Milling Capacity	2-1/2''
Table Travel (X,Y)	11'' × 6-1/2''
T-slots:	3 @ 7/16" slots
Spindle Stoke	2''
Angle Of Spindle Speeds	50-2250rpm
MOTOR	1 HP (110V/60HZ 1PH)
Packing Size	27-1/2" × 29-1/8" × 35-13/16"
Spindle Incline Angle	±45°
Distance From Spindle Nose To Table	10-3/4''
Net weight	250Ibs

Description

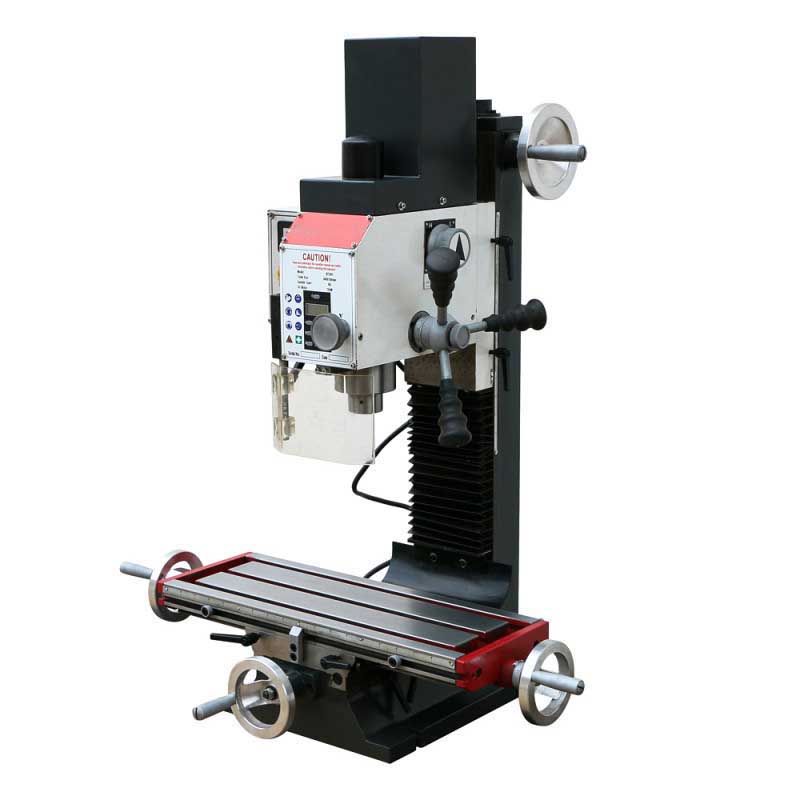

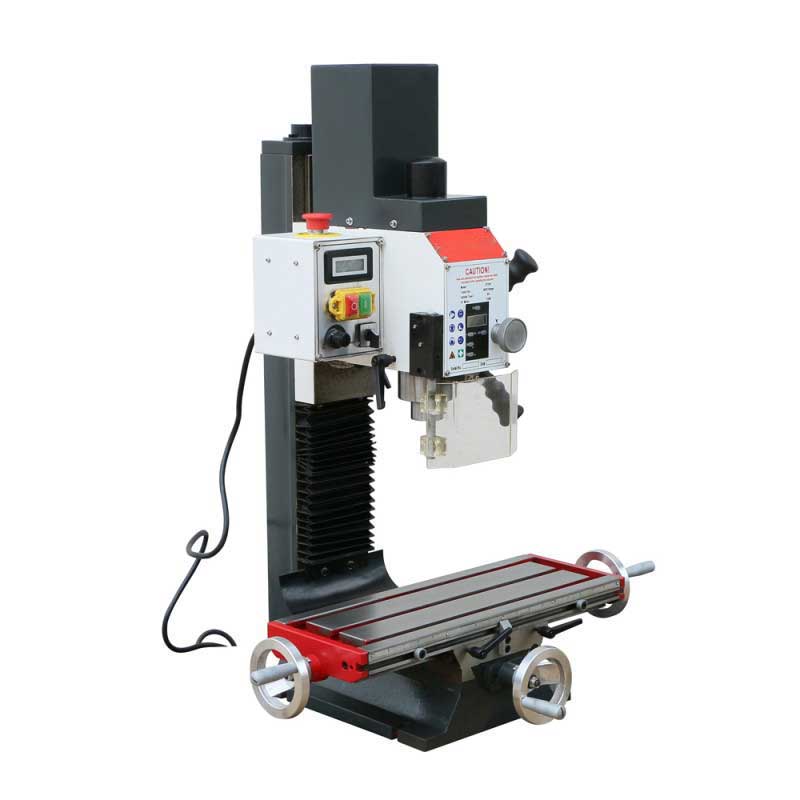

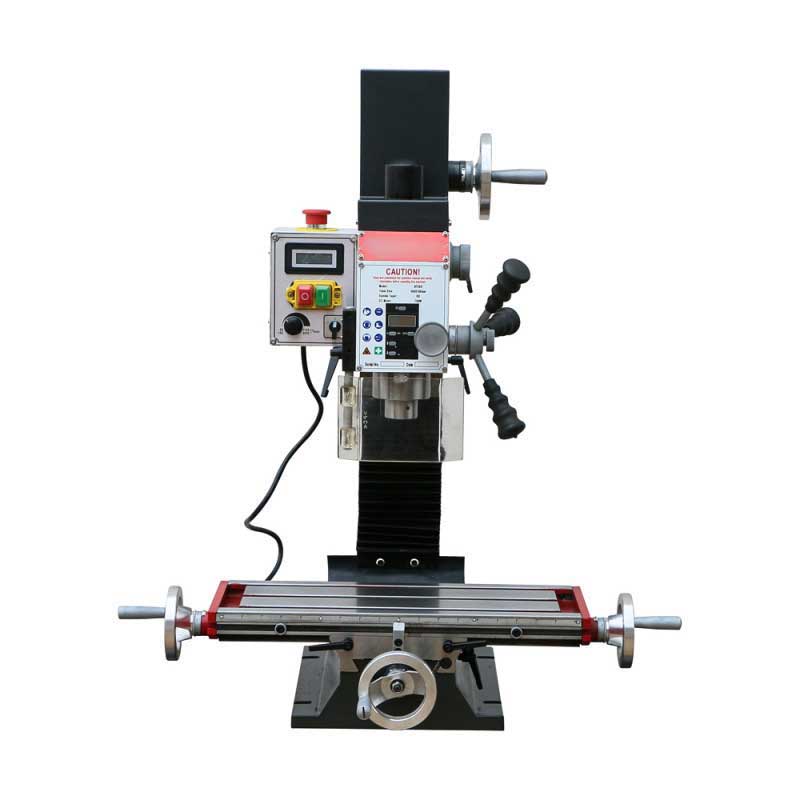

19-11/16"x 7-1/2'' Socoje Variable Speed 1HP Mill Drill Milling Machines BT20V 1 set

About this product

1. Max. drilling capacity: 3/4"

2. Table size: 19-11/16" x 7-1/2"

3. Motor: 1 HP (110V/60HZ 1PH), 10A

4. Spindle taper: R8

▪ Feed spindles can be adjusted without clearance due to adjustable spindle nuts

▪ Stable dovetail guiding precision ground and scraped with adjustable V-ledges without clearance

▪ EMC filter (to protect sensitive electronics for override mains-borne signals)

▪ Spindle is supported by high precision taper NSK bearing

▪ Drilling Milling head rotation by ±45°for milling and drilling works at different angles

▪ Height adjustable protective screen with micro switch providing maximum protection of the user against chips and parts flying off at high speed
