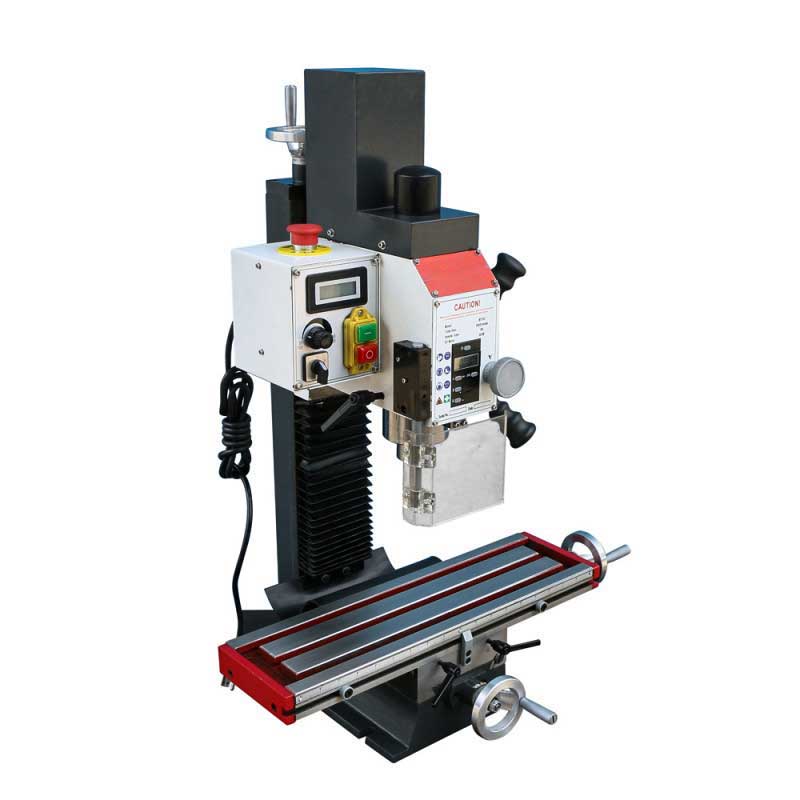

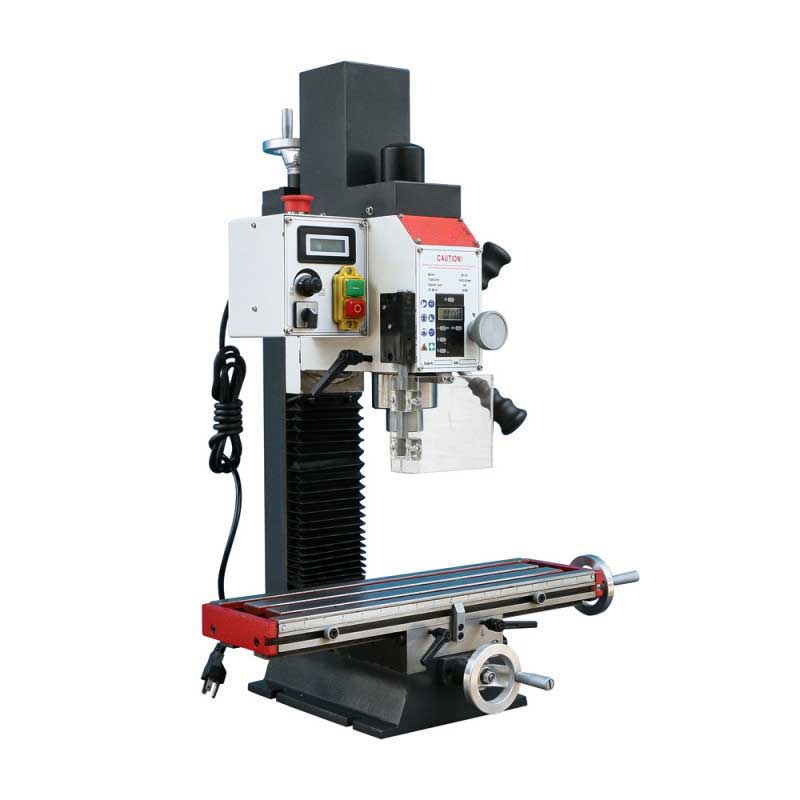

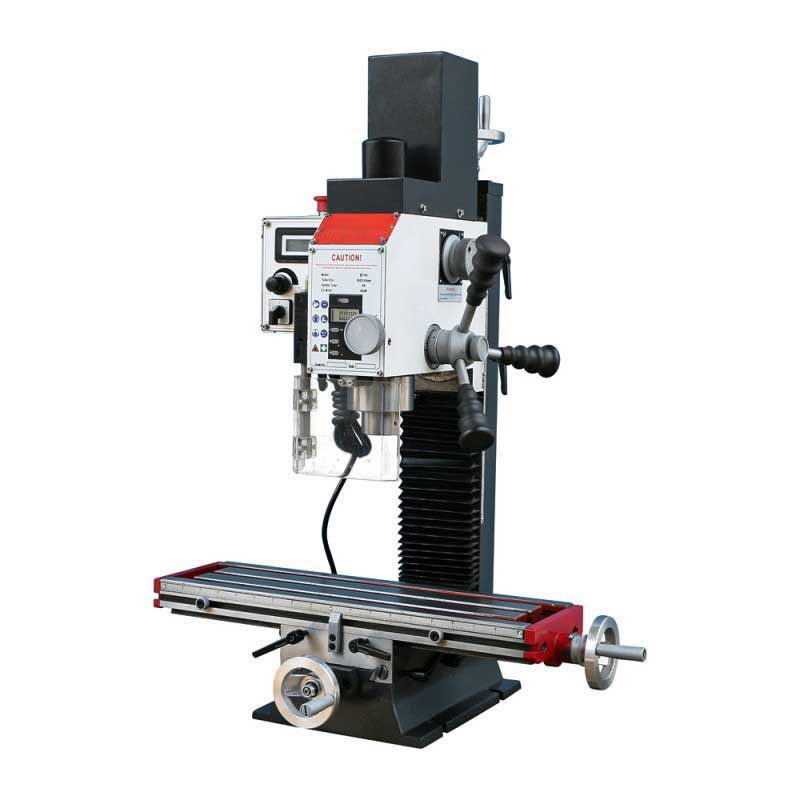

Variable Speed Drilling Milling Machine BT16V 1 set

Buy Now

Specifications

attribute-list
Model	BT16V
Table size:	19-3/4″ x 5-1/2″
Max End Milling Capacity	5/8″
Max. Drilling Capacity	5/8″
Step of Spindle Speeds	Variable
Spindle Taper	R8
Max. Face Milling Capacity	2''
Table Travel (X,Y,)	12''x 5-1/2″
T-slots:	3@ 3/8" slots
Spindle Stoke	2''
Angle Of Spindle Speeds	50-2250rpm
MOTOR	0.8HP (110V/60HZ 1PH)
Packing Size	20" x 21-1/4" x 32-7/8"
Spindle Incline Angle	±45°
Distance From Spindle To Column	7-1/4"
Distance From Spindle Nose To Table	8-1/2"
Net weight	155 lbs

Description

19-3/4″ x 5-1/2″ Socoje Variable Speed Drilling Milling Machine BT16V 1 set

About this product

1. Table size: 19-3/4″ x 5-1/2″

2. Table Travel (X,Y,) : 12''x 5-1/2″

3. Spindle taper: R8

4. Max. drilling capacity: 5/8″

5. Motor: 0.8HP (110V/60HZ 1PH)

1. This milling machine can be installed on a worktable and is suitable for small workshops.

2. Variable speed control.

3. Safe stop switch.

4. Universal R8 spindle.

5. Heavy, solid casting .

6. A portable drilling and milling machine that is suitable for daily use.

7. With solid dovetail slideway, hand-scraped, provides for highest stability and precision.
