20 x 17 Socoje Column Drill Press - 220V, 3ph, 60Hz 162332 1set
from
$10,900.00
Ex Tax: $10,900.00
- Stock: In Stock
- Model: SCJ004461
- SKU: SCJ004461
Products Sold: 0
Product Views: 210
Ask a Question About This Product
- Description

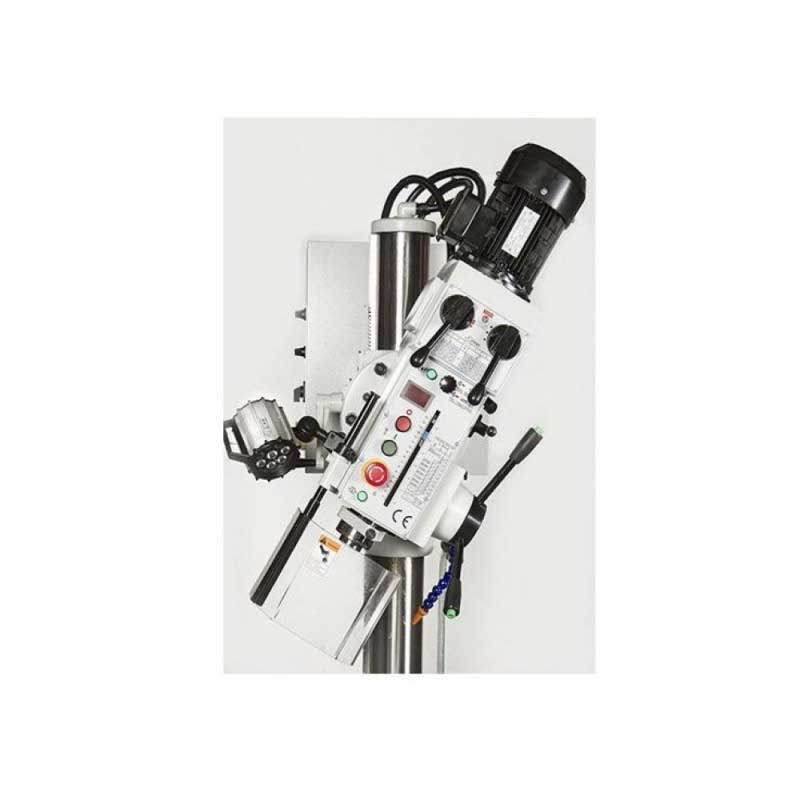

20 x 17 Socoje Column Drill Press - 220V, 3ph, 60Hz 162332 1set
About this product
- Table rotates and swivels ±45°
- 2-step motor for 12 speed levels
- Head swivels ± 45°, adjustable height

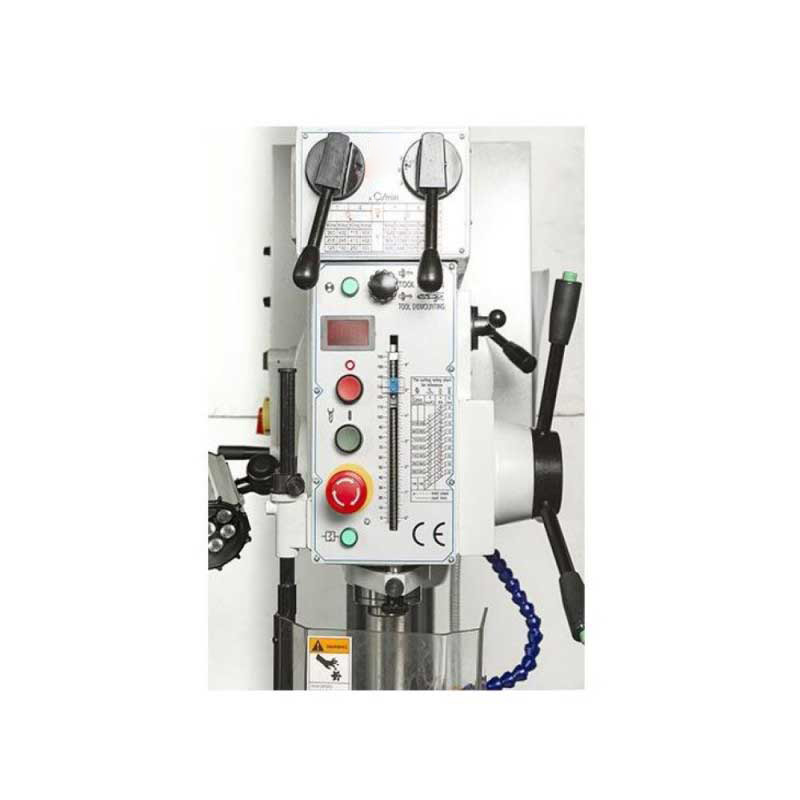

- Digital speed (rpm) display
Knuth Machine Tools offers a wide variety of drill presses from bench-type column drill presses to CNC drill presses. Knuth machines ensure ease of use from their simple and user-friendly design. All of the machines go through testing by trained professionals in Germany and is known for its high reliability and precision.
- Heavy cast-iron construction with thick-walled column

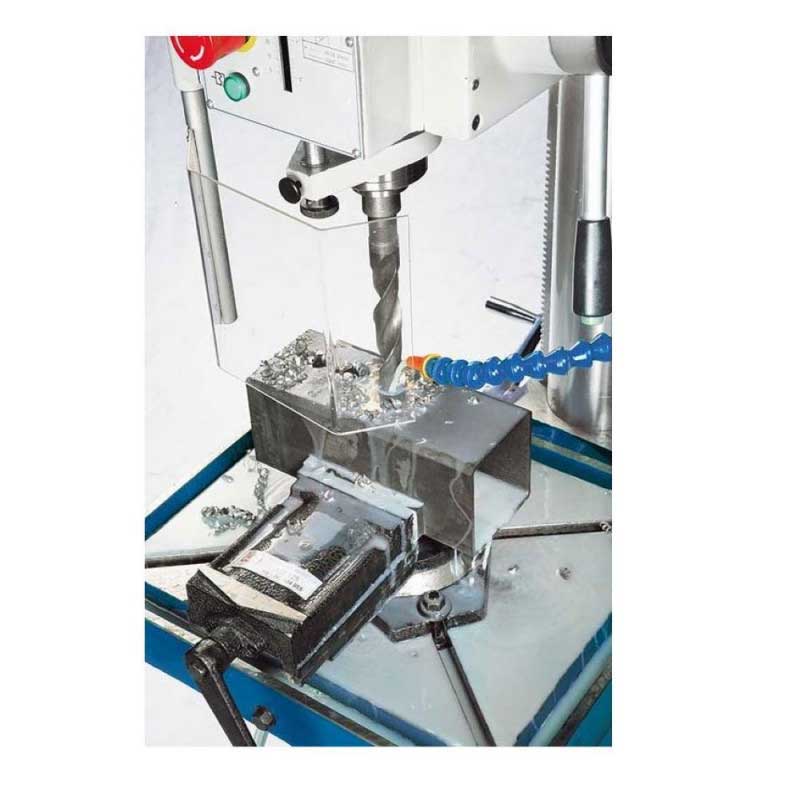

- Tapping feature
- Automatic drill feeds controlled by an electromagnetic clutch
- Including coolant system and work lamp
- Table rotates and swivels ±45°
- 2-step motor for 12 speed levels
- Head swivels ± 45°, adjustable height
- Digital speed (rpm) display
| SSB 32 Xn | |
| Working Area | |
| Drilling Capacity | 1.26 in |
| Tapping Capacity, Steel | M 20 |
| Table Set up Area | 20 x 17 in |
| Table Stroke | 19 in |
| Quill Stroke | 6 in |
| Table Swivel Range (max) | ± 45° |
| Spindle Nose-to-table Distance (max) | 25 in |
| Spindle Nose-to-foot Distance | 47 in |
| Throat | 13 in |
| Column Diameter | 5 in |
| Head Swivel Range | ± 45° |
| Headstock | |
| Spindle Speed | (12) 125 - 3,030 rpm |
| Spindle Mount | MK 4 |
| Feed | |
| Quill Feed | 0,004; 0,008; 012 / 0,47 in/R in/R |
| Measures and Weights | |
| Overall Dimensions (length x width x height) | 33.07 x 19.68 x 77.17 in |
| Weight | 1188 lbs |
