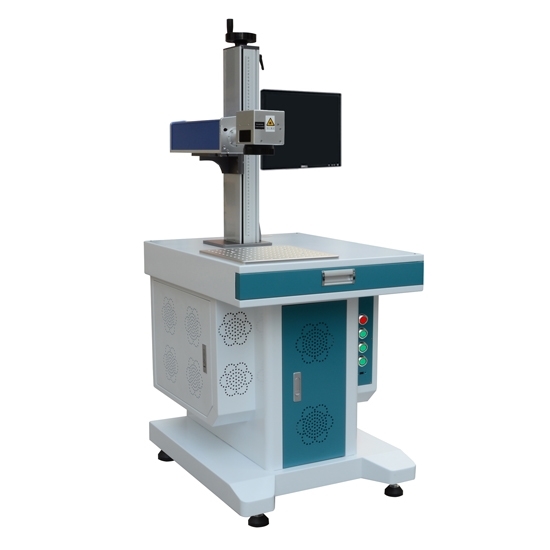

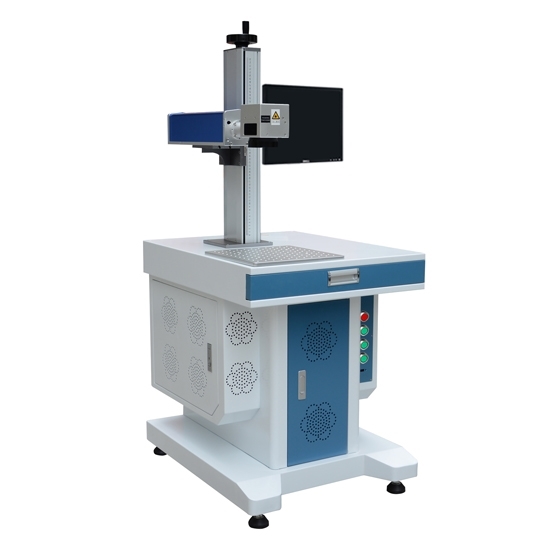

20w Socoje Economic Cabinet Type Fiber Laser Marking Machine 1 set
Brief
Small fiber laser marking machine for sale, faster marking speed, more sophisticated engraving effect, 20w output power, integrated module design, maintenance-free.
Description
Fiber laser marking system features:
- Desktop type is good for industrial factory.
- Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
- 100,000+ hours of laser life, reducing costs and production downtime.
- 110mm2 mark field (other sizes available).
- No consumables and minimal maintenance help reduce operating costs.
- Air-cooled 10W-20W models.
- Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
| Basic Information | ||
| Model | SCJ009820 | |
| Weight | 154.32 lbs. (70 kg) | |
| Dimension | 600mm x 750mm x 1430mm (23.62" x29.53"x56.30") | |
| Warranty | 2 Years | |
| Distance (scanner to working plateform) | 97~387mm (3.82" x 15.24") | |
| Platform size | 300mm x 300mm (11.81" x 11.81") | |
| System Technical Specifications | ||
| Laser type | Fiber; Ytterbium doped | |
| Output power | 10W, 20W | |
| Power requirements | 10W 20W: 220 V AC, 16 A, 50/60 Hz | |
| Wavelength | 1070 nm | |
| M2 | <1.4 | |
| Operation mode | Pulsed | |
| Pulse rep rate | 20-80 kHz | |
| Cooling | 10-20W: Fan assisted air cooling | |
| Scanning method | XY galvanometer | |
| Max line speed | 7,000 mm/sec | |
| Controls | LEC 1 industrial computer based controller | |
| Communications | USB ports, Ethernet, EtherNet/IP™, RS232 | |
| Documentation | USB flashdrive with operator's manual and integration guide; Online video troubleshooting | |
| Lens Configurations | ||
| Lens | Marking field | Focal length |
| 100mm | 65mm x 65mm (2.5" x 2.5") | 97mm (3.82") |
| 160mm | 110mm x 110mm (4.3" x 4.3") | 175mm (6.89") |
| 254mm | 175mm x 175mm (6.9" x 6.9") | 296mm (11.65") |
| 330mm | 228.6mm x 228.6mm (9" x 9") | 387mm (15.23") |
Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.
Tips: Fiber laser marking machine marking size problems and solusions
Sometimes, in using the fiber laser marking machine, people may find that the practical size of the marked graph is different from the set size.
The main problems include:
- The proportion parameter is not regulated well. The verification document of controlling the marking size for the laser marking machine is not correct.
- The focal distance has changed. The focal distance of the laser marking machine is not correct.
- The surface of the marked material is not flat or it is not placed evenly.
- The screen of the workbench for the laser marking machine is not flat.
Solutions:
- Verify the document of the marking size for the laser marking machine again.
- Measure if the focal distance of the laser marking machine is correct or not with a steel ruler, regulate the focal distance.
- Place the marked material to be flat or even.
- Regulate the screen the workbench for the laser marking machine.
