20w Socoje Portable Fiber Laser Marking Machine 1 set
from
$12,803.03
Ex Tax: $12,803.03
- Stock: In Stock
- Model: SCJ009818
- SKU: SCJ009818
Products Sold: 0
Product Views: 185
Ask a Question About This Product
- Description

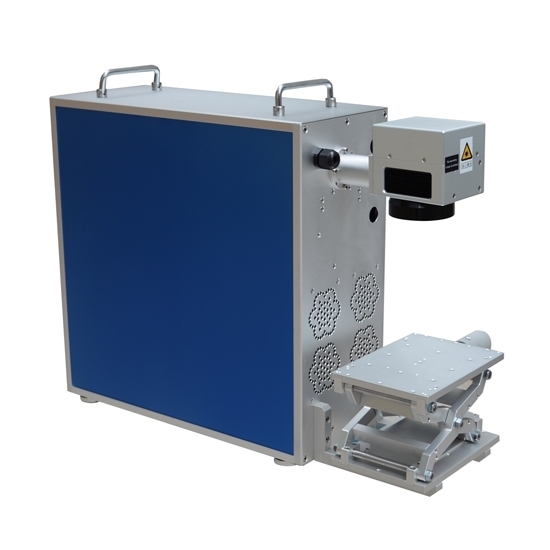

20w Socoje Portable Fiber Laser Marking Machine 1 set
Brief
Cost-effective portable fiber laser marking machine for sale, faster marking speed, more sophisticated engraving effect, 20w output power, integrated module design, maintenance-free.
Description
Fiber laser marking system features:
- Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
- 100,000+ hours of laser life, reducing costs and production downtime.
- 110mm2 mark field (other sizes available).
- No consumables and minimal maintenance help reduce operating costs.
- Air-cooled 10W-20W models.
- Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
| Basic Information | ||
| Model | SCJ009818 | |
| Weight | 44 lbs. (20 kg) | |
| Dimension | 700mm x 210mm x 525mm (27.56" x8.27"x20.67") | |
| Distance (scanner to working plateform) | 160~284mm (6.3" x 11.18") | |
| Platform size | 210mm x 150mm (8.27" x 5.91") | |
| Warranty | 2 Years | |
| System Technical Specifications | ||
| Laser type | Fiber; Ytterbium doped | |
| Output power | 10W, 20W | |
| Power requirements | 10W 20W: 220 V AC, 16 A, 50/60 Hz | |
| Wavelength | 1070 nm | |
| M2 | <1.4 | |
| Operation mode | Pulsed | |
| Pulse rep rate | 20-80 kHz | |
| Cooling | 10-20W: Fan assisted air cooling | |
| Scanning method | XY galvanometer | |
| Max line speed | 7,000 mm/sec | |
| Controls | LEC 1 industrial computer based controller | |
| Communications | USB ports, Ethernet, EtherNet/IP™, RS232 | |
| Documentation | USB flashdrive with operator's manual and integration guide; Online video troubleshooting | |
| Lens Configurations | ||
| Lens | Marking field | Focal length |
| 100mm | 65mm x 65mm (2.5" x 2.5") | 97mm (3.82") |
| 160mm | 110mm x 110mm (4.3" x 4.3") | 175mm (6.89") |
| 254mm | 175mm x 175mm (6.9" x 6.9") | 296mm (11.65") |
| 330mm | 228.6mm x 228.6mm (9" x 9") | 387mm (15.23") |
Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.
Tips: Advantages of fiber laser marking machine
- All-fiber structure design ensures the high reliability of the laser. There is no need to use any optical element to adjust the collimation.
- Integrated design of the system is more user-friendly and provides ideal solutions to all kinds of industrial application.
- The laser machine has long service life and small volume. It needs simple air cooling system instead of huge water cooling system. It can work under certain impacts and shocks or even in harsh environments with high temperature or dust.
- The working speed is 2 to 3 times that of traditional laser marking machines. With superb beam quality, small optical spots and narrow marking line, it is suitable for fine marking.
- The fiber laser machine is low-powered, cost-efficient, power-saving and energy-saving.
- Portable laser marking machine adopts integrated modular design, which is convenient for maintenance. Its small volume effective saves space in the plant.
