22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11

22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11
22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11
from
$15.41
Ex Tax: $15.41
5 or more $13.71
10 or more $12.78
25 or more $12.01
50 or more $11.40
  • Stock: In Stock
  • Model: SCJ013281
  • SKU: SCJ013281
Products Sold: 0
Product Views: 27
  • Specifications
Attributes List
ActuationMaintained
Contact Configuration1NO-1NC
Head TypeSelector
Contact Rating2A 380V, 6A 240V
Current Rating10A
IlluminatedNo
Electrical Life100,000 Cycles
Illumination ColourAmber
Key Index Angle45°
Rated Thermal Current10A
Mounting StylePanel
Number of Positions3
Protection LevelIP65
Operating Temperature-20°C to +55°C
Panel Cut Out22.3mm
Panel Thickness0.8-6mm
Product SeriesYW
Terminal TypeScrew
Voltage Rating600V
  • Description

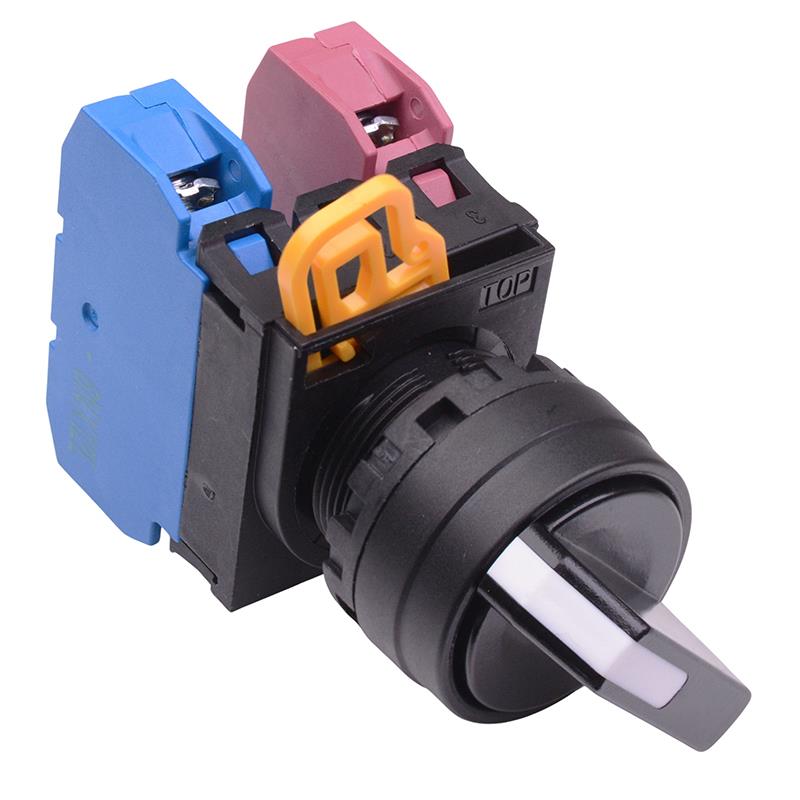

22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11
The YW1S-3E11 is a 3 position maintained selector switch from the YW series manufactured by socoje. The switch features a heavy-duty rugged construction and is suitable for standard 22mm panel cut-outs for industrial applications.

  • 1NO-1NC contacts
  • Voltage rating: 600V
  • Current rating: 10A
  • 22mm panel cut-out
  • 27.6mm knob diameter
  • IP65 protection rating
  • Self cleaning contacts
  • Interchangeable switch components
  • Dimensions: 69.8 x 30 x 41.4mm (length x width x height)
  • 22mm 3 Position Maintained Selector Switch 1NO-1NC IP65 YW1S-3E11
