2M9120A Manual Tool and Cutter Grinding Machine China Factory Tool Grinder Universal Internal and External Grinder
from
$19,999.00
Ex Tax: $19,999.00
50 or more $14,999.00
100 or more $9,999.00
- Stock: In Stock
- Model: SCJ007272
- SKU: SCJ007272
Products Sold: 0
Product Views: 201
Available Options
Ask a Question About This Product
- Specifications
Other attributes | |
Condition | New |
CNC or Not | Normal |
Place of Origin | Shanghai, China |
Weight (KG) | 1300 |
warranty: | 1 Year |
Key Selling Points | CNC Step Tool Grinding Machine |
Showroom Location | None |
Applicable Industries: | Manufacturing Plant, Construction worksxa0, Energy & Mining, Machinery Repair Shops, Building Material Shops |
Marketing Type | New Product 2023 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Wheel Size(mm) | 200x20x75 |
Core Components | Motor, Bearing, Engine, Other |
Voltage | Inquiry us |
Dimension(L*W*H) | 1520x1350x1400 mm |
Grinding diameter | 200mm |
Power (kW) | 3.625 |
Workpiece length (max.) | 500mm |
After-sales Service Provided | Yes |
Packing | Factory Standard |
Workpiece weight (max.) | 10KG |
Year | 2023 |
Workpiece width surface grinding | 50mm |
Workpiece length surface grinding | 200mm |
Grinding length | 200mm |
Type | Tool Grinding Machine |
Tool grinding measure | 200x500mm |
PAYMENT | T/T |
Packaging and delivery | |
Packaging Details | Factory ordinary packaging, please confirm with the ANTISHI for more details. |
Port | Shanghai Port |
Supply Ability | |
Supply Ability | 300 Set/Sets per Month |
- Description
Product Description
ANTISHICNC 2M9120A Manual Tool and Cutter Grinding Machine China Factory Tool Grinder Universal Internal and External Grinder Features

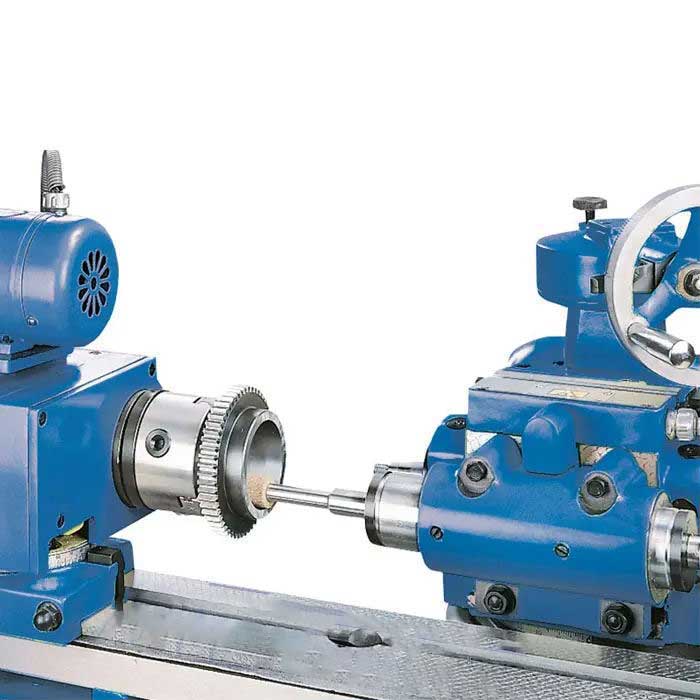

Grinding machine model 2M9120A is a kind of universal machine。It has both the characters of a universal cylindrical grinding machine and the characters of a tool and cutter grinding machine and is suitable for external grinding , internal grinding and surface grinding as well as for sharpening general cutting tools such as various milling cutters , reamers , pinion cutters and straight fluted hobs , etc. This machine is suitable for common small machine plants, tool workshops , repair workshops and research institutes of science and technology.
1.The functionality of the Multi-Grind ranges from external and internal cylindrical grinding to taper grinding.
2.The Multi-Grind also allows easy tool grinding (sharpening of cutters, reamers and turning tools) and is suitable for light surface grinding job.
3.Three-Point Bearing The custom three-point bearing of the grinding spindle ensures minimum temperature effects and consistent grinding quality.
4.Feed Drives Hydraulic table feed (longitudinal) with automatic change of direction.
5.An additional manually operated longitudinal feed with hydraulic support allows feed speeds up to 7 m/min.
6.Grinding Headstock Special grinding headstock design allows simultaneous setup of 2 different grinding wheels.
7.The grinding headstock can be moved in transverse direction and also vertically; and it can be rotated around the vertical axis.
8.Speeds The headstock operates at 3 different speeds (110, 200, 300 min-1), which are set through an easy to operate gear shift lever.
9.central lubrication system - sturdy construction
10.minimizes vibration effects - electrical components are mounted easily accessible in a control cabinet
ANTISHICNC 2M9120A Manual Tool and Cutter Grinding Machine China Factory Tool Grinder Universal Internal and External Grinder Standard Parts
Coolant equipment
6 Piece-Grinding wheel
1 Set-Internal grinding wheel head
1 Piece-Extended grinding wheel spindle
1 Set-Cutter head
1 Set-Ttree-jaw chuck
1 Set-Plane grinding
1 Piece-Centre
1 Set-Tooth rest
1 Piece-Centre
1 Set-Lefttailstock
5 Set-Driving dogs
1 Set-Wheel dresser
3 Piece-Wheel pullers
2 Piece-Vee-belt
1 Set-Wheelbalancing stand
Notice: Factory ordinary packaging, please confirm with the ANTISHI for more details.
