3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc

3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc
0 reviews - Write a review
from
$41.40
Ex Tax: $41.40
5 or more $36.90
10 or more $32.85
20 or more $27.00
  • Stock: In Stock
  • Model: SCJ004311
  • SKU: SCJ004311
Products Sold: 0
Product Views: 337
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Order Code4XZ050
Φd1 (h10)3/16"(5mm)
I21 3/16"(30mm)
I12 15/16"(75mm)
Φd2(h6)1/4"(6mm)
  • Description
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC 1pc

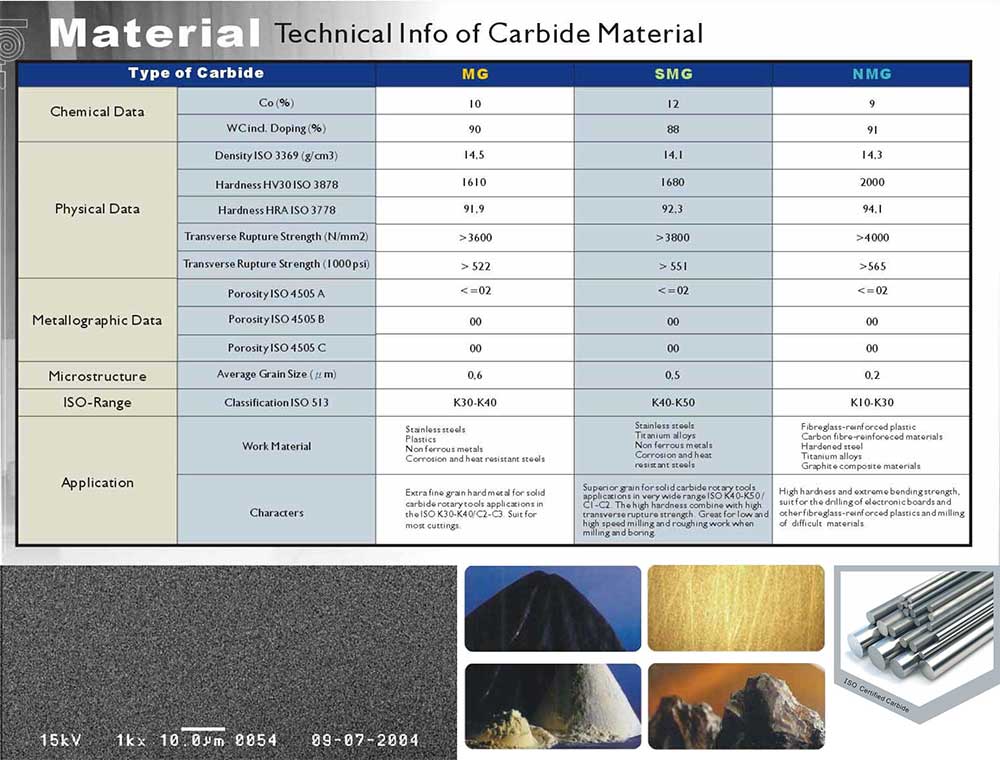

About this product

1. Chemical Data : Co(%):9/WC incl.Doping(%):91
2. Density ISO 3369 (g/cm3) : 14.3
3. Hardness HV30 ISO 3878 : 2000
4. Hardness HRA ISO 3778 : 94.1
5. Transverse Rupture Strength (N/mm2) : >4000
6. Transverse Rupture Strength (1000 psi) : >565
7. Microstructure : 0.2
8. ISO-Range:  K10~K30
9. Work Material : Carbon fiber-reinforced material, Hardened steel, Titanium alloys, Graphite composite materials, Fiberglass-reinforced material

3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China

Net Weight

0.044 Ibs

20g

Gross Weight

0.048 Ibs
22g

Packing Size

1/2" x 1/2" x 2-9/16"
12 x 12 x 65 mm

3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China
Material:
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China

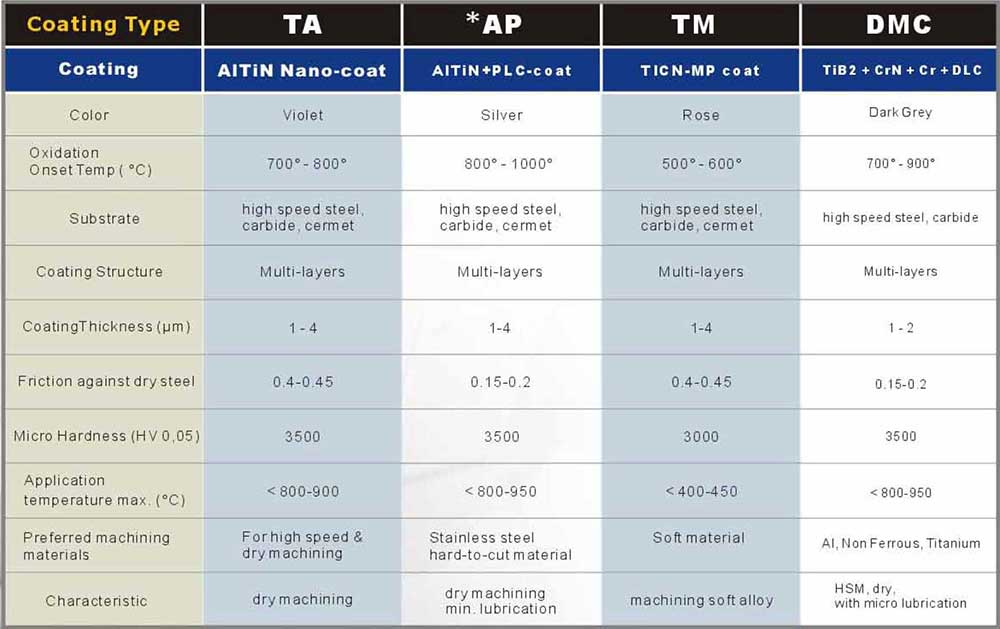

Coating:
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China
3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China
Work Material:

3/16" Dia x 1 3/16", 4 Flute, Solid Carbide End Mill, LOC Made In China
