3/16" Diam X 1", 4 Flute, Solid Carbide End Mill, LOC, Made In China

Buy Now

Specifications

attribute-list

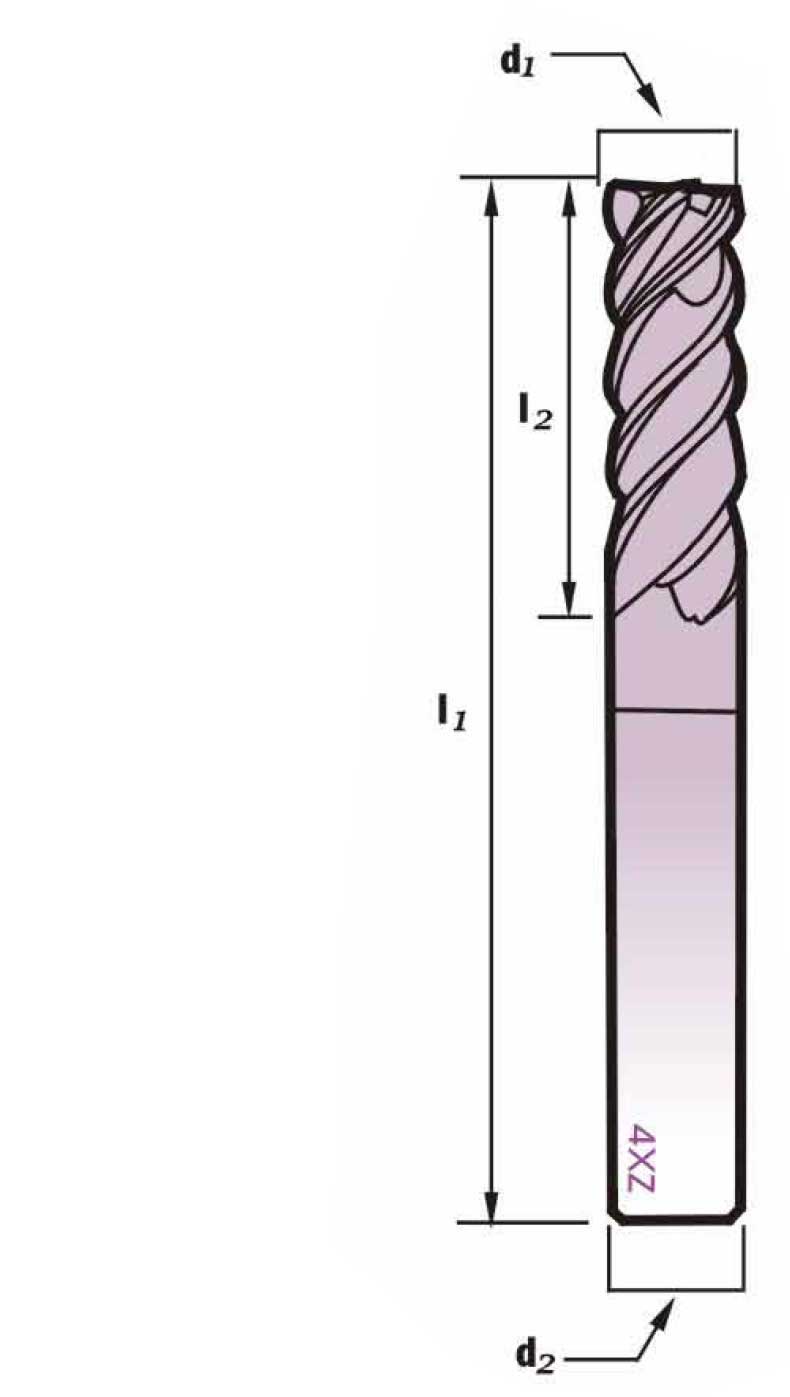

Order Code	4XZ050
Φd1 (h10)	3/16"(4mm)
I2	1"(25mm)
I1	2 15/16"(75mm)
Φd2(h6)	1/4"(6mm)

Description

About this product

Made in China

1. Chemical Data : Co(%):9/WC incl.Doping(%):91
2. Density ISO 3369 (g/cm3) : 14.3
3. Hardness HV30 ISO 3878 : 2000
4. Hardness HRA ISO 3778 : 94.1
5. Transverse Rupture Strength (N/mm2) : >4000
6. Transverse Rupture Strength (1000 psi) : >565
7. Microstructure : 0.28. ISO-Range: K10~K30
9. Work Material : Carbon fiber-reinforced material, Hardened steel, Titanium alloys, Graphite composite materials, Fiberglass-reinforced material

Net Weight

0.044 Ibs

20g

Gross Weight

0.048 Ibs
22g

Packing Size

1/2" x 1/2" x 2-9/16"

13 x 13 x 65 mm

Material:

Coating:

Work Material:
