3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc

3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc
0 reviews - Write a review
from
$69.30
Ex Tax: $69.30
  • Stock: In Stock
  • Model: SCJ004313
  • SKU: SCJ004313
Products Sold: 0
Product Views: 462
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Order Code4BZ100
Φd1 (h10)R5 mm
I213/16"(20mm)
I12 15/16"(75mm)
Φd2(h6)3/8"(10mm)
  • Description
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5 1pc

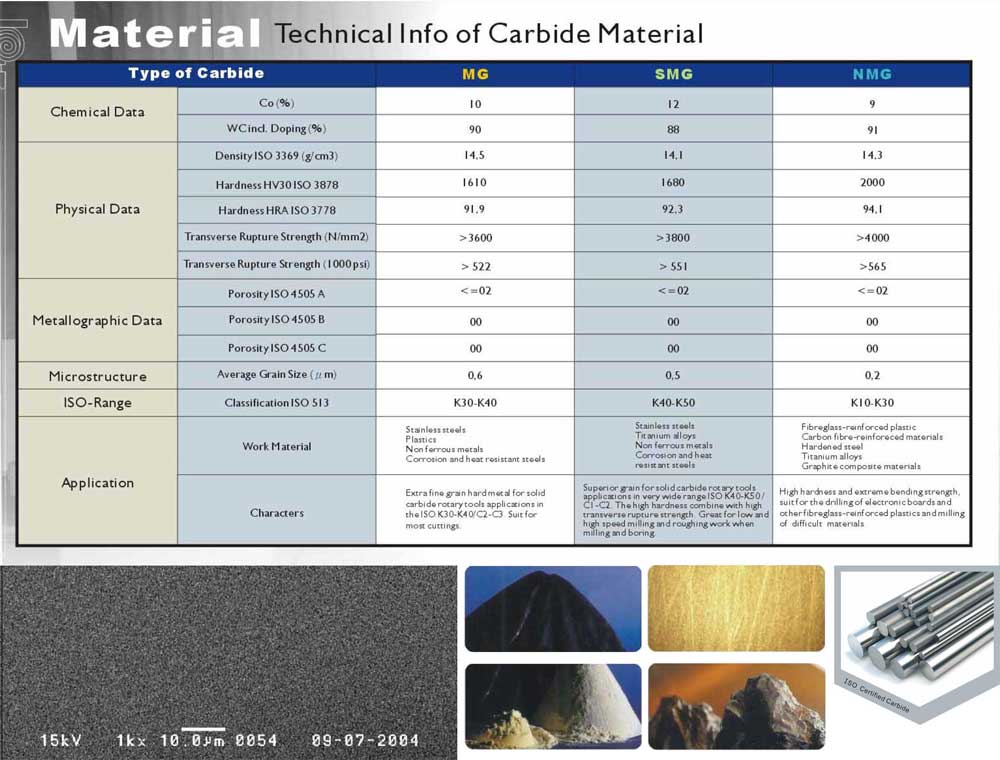

About this product

1. Chemical Data : Co(%):9/WC incl.Doping(%):91
2. Density ISO 3369 (g/cm3) : 14.3
3. Hardness HV30 ISO 3878 : 2000
4. Hardness HRA ISO 3778 : 94.1
5. Transverse Rupture Strength (N/mm2) : >4000
6. Transverse Rupture Strength (1000 psi) : >565
7. Microstructure : 0.2
8. ISO-Range:  K10~K30
9. Work Material : Carbon fiber-reinforced material, Hardened steel, Titanium alloys, Graphite composite materials, Fiberglass-reinforced material

3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China

Net weight

73g / 0.16Ibs

GrossWeight

76g / 0.167Ibs

PackingSize

17 x 17 x 67 mm /
11/16" x 11/16" x 2-5/8" Inch






3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China
Material:
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China

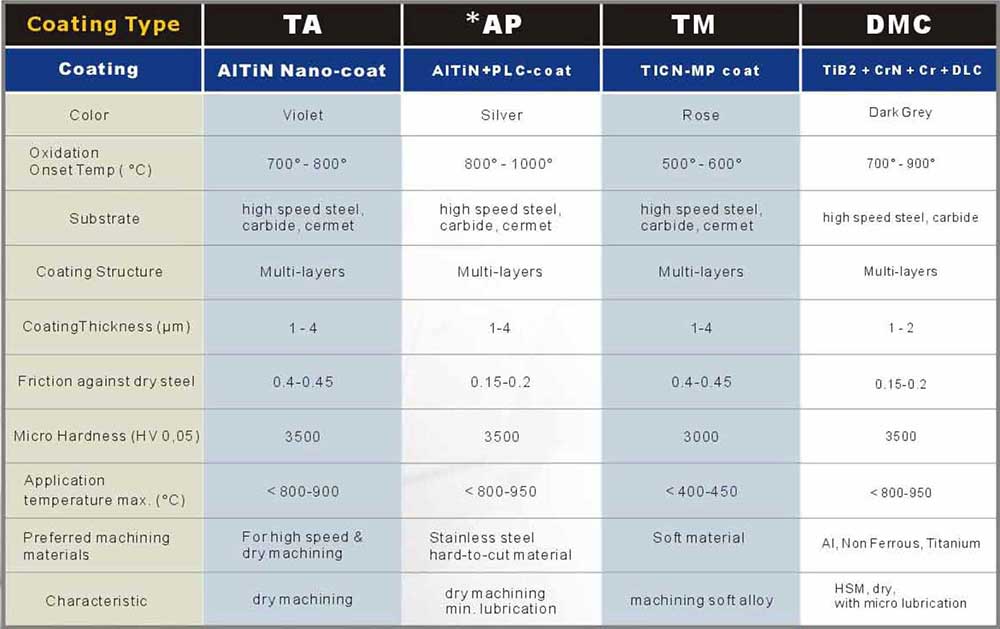

Coating:
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China
Work Material:
3/8" Diam. 4 Flute, Solid Carbide Ball Nose End Mill, R5, Made In China
