3 In 1 Uncoiler Straightener Servo Feeder Coil Steel Nc Servo Feeder Uncoiler Metal Pneumatic Decoiler Straightening Machine
MAIN FEATURES
MAIN FEATURES
● Intelligent mechanized platform improves overall work efficiency and reduces error rate.
● The delivery speed can be adjusted according to product requirements, reducing waste and improving material use efficiency.
● Using a complete set of standard control system, it can be operated directly without worrying about data conversion and other issues.
● You can freely switch between punch master or device master according to your own needs, which maximizes the adaptability of the device and saves costs.
● The machine has the advantages of high universality, high precision, reliable performance and convenient operation.
NCBF Technical Parameters
Model | NCBF-400B | NCBF-600B | NCBF-800B | NCBF-1000B |
Material width | 50～400mm | 50～600mm | 50～800mm | 50～1000mm |
Materialthichness | 0.5～4.5mm | |||
Max.Coil outer diameter | φ1400mm | |||
Max.Coil weight | 5t | 7t | ||
Straightening roller diameter | φ76mm×7（up4/down3） | |||
Feeding roller diameter | φ84mm | |||
Decoil power | 22kw | 3.7kw | ||
Feeding speed | 0～20m/min | |||
Feeding accuracy | ≤0.2mm | |||
The height of standard discharging line | 1050mm-1250mm | |||
Standard direction | left→right | |||
Expansion style | Manual expansion | Hydraulic expansion | ||
Product Details
Mandrel of uncoiler
The axis of the uncoiler is composed of four high-precision alloy plates, which can be adjusted according to the diameter of the material, which ensures stable and continuous output of the material.
There is a material width scale bar on the axis, which is convenient for aligning the machine position.
There are multiple guide rollers at the entrance of the straightening machine, which can be adjusted according to the width and thickness of the material at the entrance of the straightening machine, so that the material is more flat when it enters the punching machine.

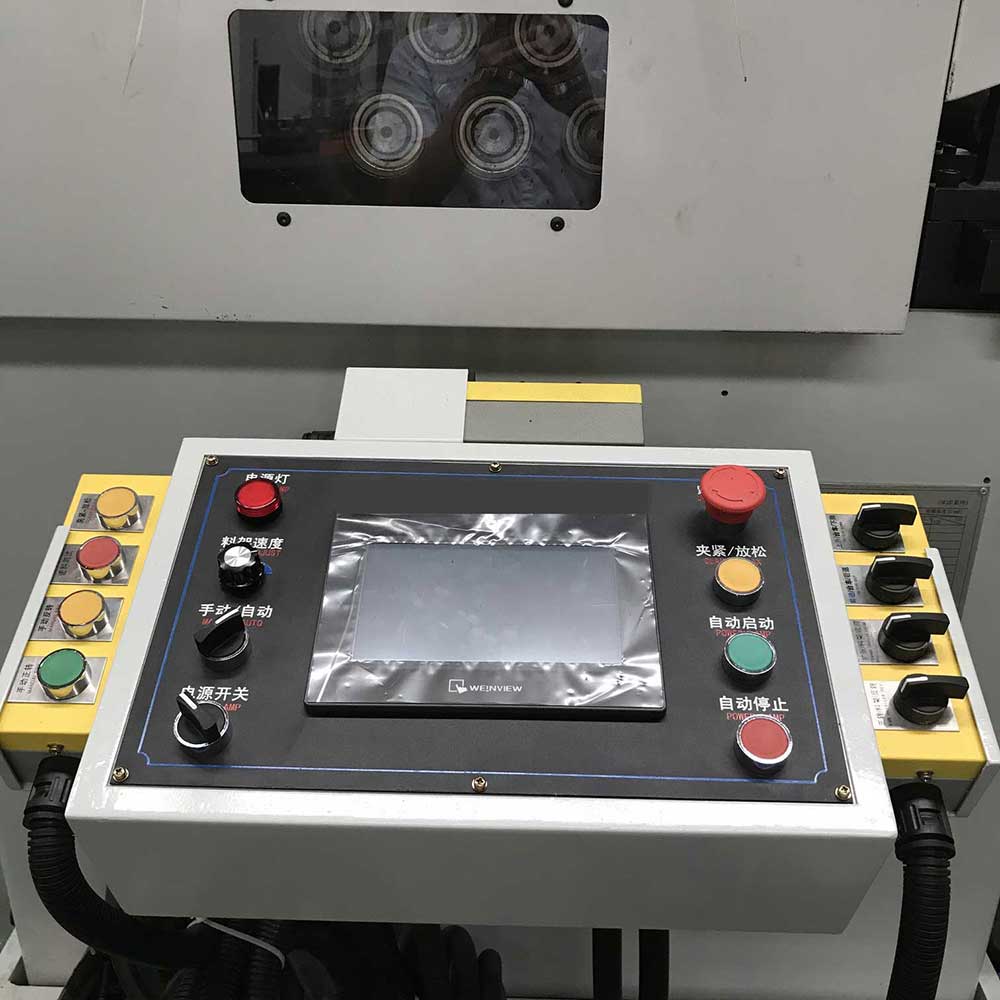

The HMI controller is composed of a touch control screen and buttons, and the corresponding options can be selected according to the menu in the display to control the operating speed and size requirements of the machine.
The material outlet of the straightening machine is a plane composed of rollers, which can transfer the material to the punching machine smoothly and orderly.
The hydraulic pump motor is composed of a high-power AC motor and a set of cooling system. It can adjust the strength of power output according to the control signal of the controller. It can provide continuous power and pressure for the machine during operation.
