300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s 1pc
from
$2,571.75
Ex Tax: $2,571.75
- Stock: In Stock
- Model: SCJ009662
- SKU: SCJ009662
Products Sold: 0
Product Views: 358
Ask a Question About This Product
- Description
300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s 1pc
Brief
SOCOJE digital storage oscilloscope provides a dual-channel, 300 MHz bandwidth oscilloscope and 2.5 GSa/s real-time sample rate. The digital oscilloscope has the function of memory and storage of the observed signal.
Description
This compact digital oscilloscope with 300 MHz bandwidth, 2.5 GSa/s sampling rate, 8 inches color LCD screen, bright color, and high contrast. Digital storage oscilloscope can be used to observe and compare single-shot processes and non-periodic phenomena, low-frequency, and slow signals, and signals observed at different times and places.
Specification
| Model | SCJ009662 |
| Bandwidth | 300 MHz |
| Channel | 2+ external trigger |
| Sample rate | 2.5 GSa/s |
| Acquisition model | Sample, Peak detect |
| Record length | 10M |
| Display | 8 inch LCD |
| Waveform refresh rate | 10000 wfrms/s |
| Input coupling | DC, AC, Ground |
| Probe attenuation | 1X, 10X, 100X, 1000X |
| Input Impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF |
| Max. input voltage | 400V (DC+AC, PK - PK) |
| Bandwidth limit(typical) | 20MHz / Full bandwidth |
| Sampling rate range | 1ns/div ~ 100s/div,step by 1-2-5 |
| Vertical Resolution | 8 bits |
| Sensitivity Resolution | 2mV/div~10V/div |
| Low Frequency（-3db） | ≥10 Hz (at input, AC coupling) |
| Rise time (at input, Typical) | ≤5.8ns |
| Trigger type | Edge |
| Trigger model | Auto, Normal, single |
| Trigger level range | ±6 div from the screen center |
| Automatic measurement | Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B |
| Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors,auto cursor |
| Dimension | 340*155*70mm |
| Weight | 1.8kg |
Accessories
- Power cable
- USB cable
- Probe
- Probe Adjust
- Quick Guide

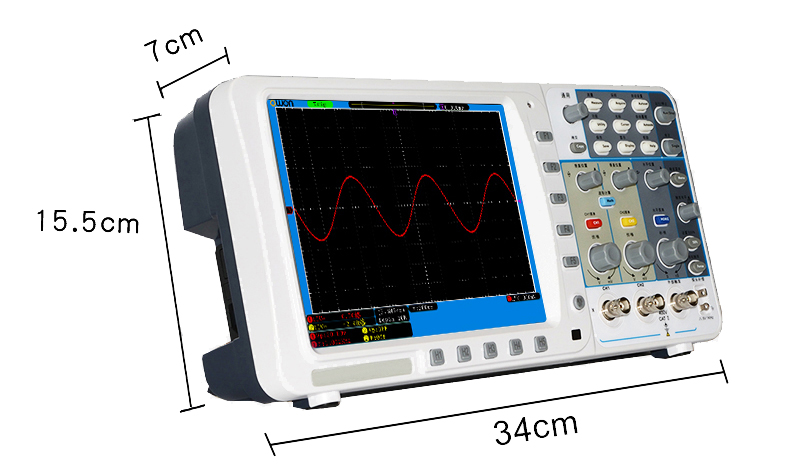

Dimension
Tips: What are the applications of digital oscilloscopes?
Oscilloscopes are used in the sciences, medicine, engineering, automotive and telecommunications industry. General-purpose instruments are used for the maintenance of electronic equipment and laboratory work.
