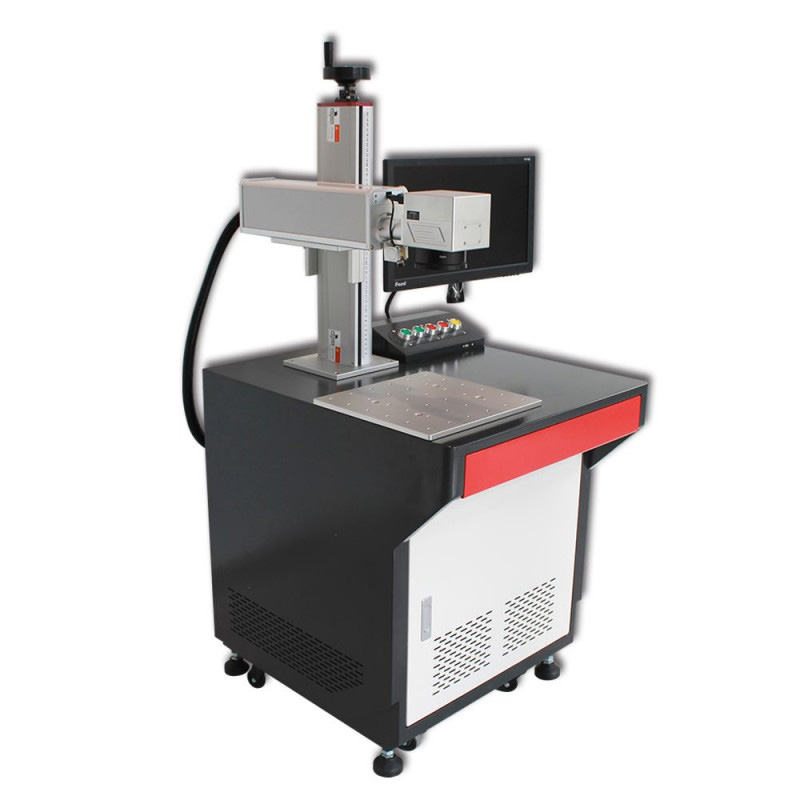

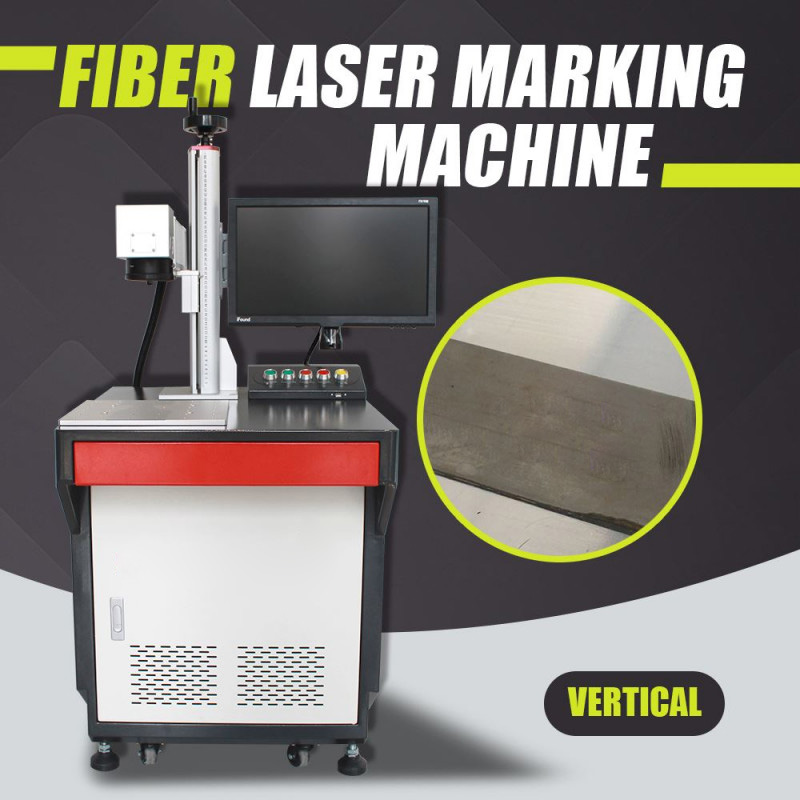

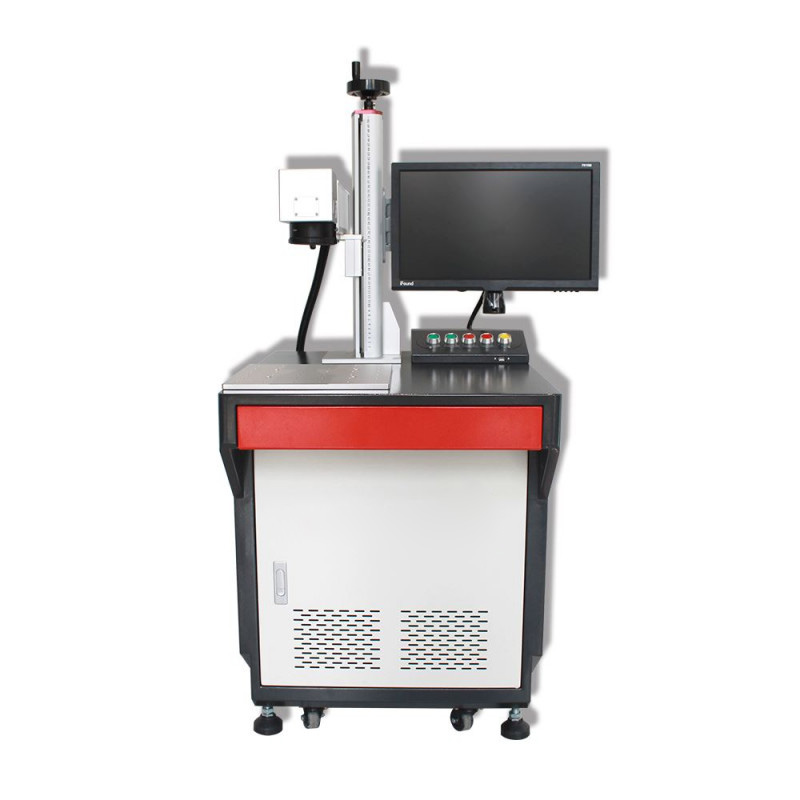

30W Desktop Fiber Laser Marking Machine,Fiber Laser Engraver 6.9&quot; 1pc

Buy Now

Specifications

attribute-list
Model	80mm
Laser Power	30W
Laser Type	JPT
Marking Area	175175mm(6.96.9in)
Lens Size	175175mm(6.96.9in) 1064nm
Lens Brand	SOCOJE
Max. Material Thickness	206mm(8.1in)
Repetition Rate	1-400kHZ.
Pulse Duration Modulation	200ns
Control board	BJ JCZ board(Original)
Package Weight	129KG by Wooden Box
Program	EZCAD Stable performance and high reliability.
Engraving Depth	≤0.4mm(0.016in)
Output Power Adjustment Range	10%-100%
Marking Speed	7m/s(275.6in/s)
Min. Line Width	0.01mm(0.0004in) Depends on the material
MIn. Character	0.2mm(0.008in) Depends on the material
Electrical Requirements	110V 50hz
Marking Interface	USB connection.Compatible with Windows XP/Vista/7/8/10.
Power Consumption	800W
Communication MODE For Automation	TCP/IP, IO, RS232
Marking Content	Barcodes,serial number,text,vector,and logos
Weight	5.7KG
Internal Clamping Range(A-A1)	2-22mm
Clamping Range(B-B1)	25-70mm
External Clamping Range(C-C1)	22-63mm
Elevation Angle	45/90°

Description

30W Desktop Fiber Laser Marking Machine,Fiber Laser Engraver 6.9" 1pc

About this product

1 . Laser Power : 30W

2 . Powerconsumption : 800W

3 . LensSize(Marking Area): 175×175mm (6.9×6.9in)

4 . EngravingDepth : ≤ 0.4mm

5 . RepetitionRate : 1-400 kHZ

Desktop 30W Laser Engraver with 80mm Rotary Axis, 175×175mm (6.9×6.9in) ,Computer

80mm Rotary Axis

--80mm (3.15in) Three-jaw Rotary Axis + Drive.
-- Internal Clamping Range:2-22mm. External Clamping Range:22-63mm
--This rotary fixture is mainly for small hardware such as rings, bracelets,Cigarette holder, Pen, Bearinge,tc.
-- Rotary spring clamping, fast mounting and dismounting to improve work efficiencyAccurate Position.180°Rotary Positioning.Stable Positioning.
-- Industrial Standard Interface. Use Aviation Plug Fits Various Board Card

Machine Parameters

Marking Area:175×175mm(6.9×6.9in)
Maximum Material Thickness: 206mm(9.8in)
Laser Type: Lasers Repetition Rate:1-400kHZ
Control board : BJ JCZ board(Original)
Program : EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
Output poweradjustment range:10%-100%
Marking Speed:≤7000mm/s(275.6in/s)
Engraving Depth:≤0.4mm(0.016in)
Power consumption: 800W
Electrical Requirements:110V-240V/50Hz-60Hz(According to local electricity supply).
Connection：USB Connection.Compatible with Windows XP/Vista/7/8/10.

Regular Packing List:

30W Laser Engraver
175×175mm Lens. Brand:SOCOJE
80mm Rotary Axis
Desktop Computer configuration: CPU:AMD Quad Core. RAM: 4G. SSD:120GB. Display:19''
