30W Fiber Laser Engraver,Rotary Laser Marking Machine 6.9"*6.9" 1pc
from
$5,649.00
Ex Tax: $5,649.00
- Stock: In Stock
- Model: SCJ004120
- SKU: SCJ004120
Products Sold: 0
Product Views: 196
Ask a Question About This Product

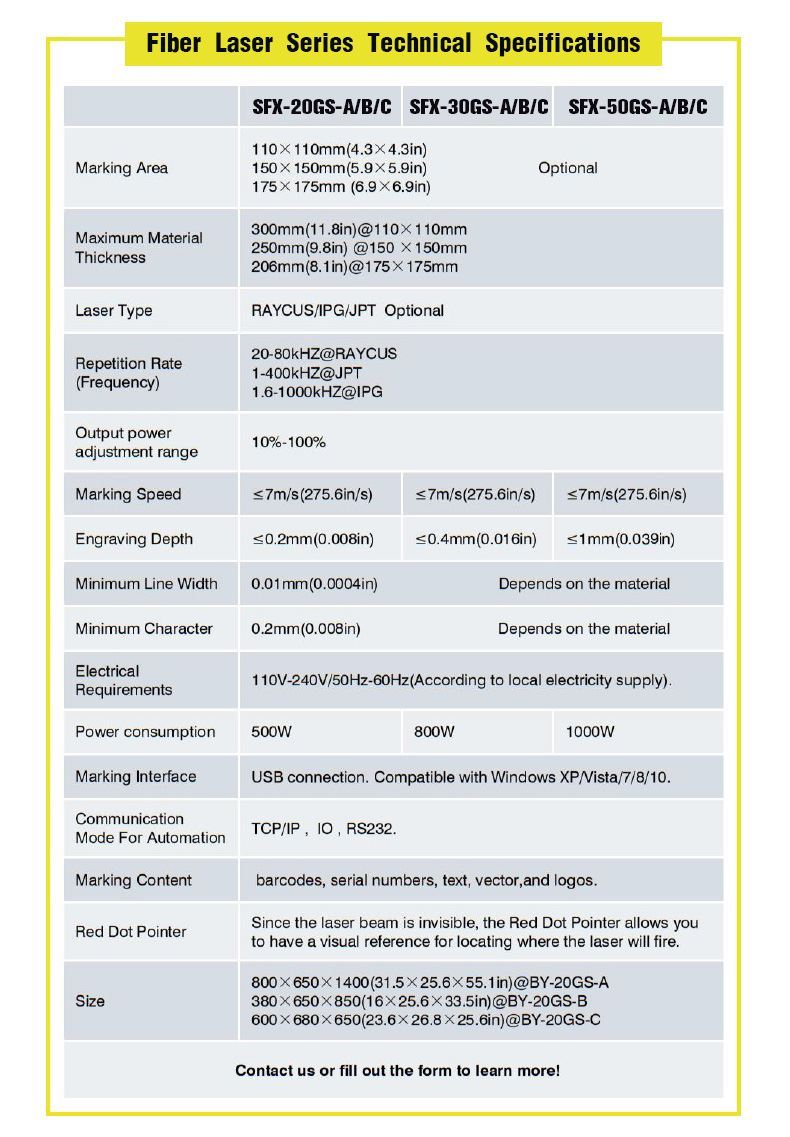

- Specifications
attribute-list | |
Model | 80mm / 3.15in |
Laser Power | 30W |
Laser Type | JPT |
Marking Area | 175*175mm(6.9*6.9in) |
Lens Size | 175*175mm(6.9*6.9in) 1064nm |
Lens Brand | SOCOJE |
Max. Material Thickness | 206mm(8.1in) |
Repetition Rate | 1-400kHZ. |
Pulse Duration Modulation | 200ns |
Control board | BJ JCZ board(Original) |
Package Weight | 136lbs by Wooden Box |
Program | EZCAD Stable performance and high reliability. |
Engraving Depth | ≤0.4mm(0.016in) |
Output Power Adjustment Range | 10% - 100% |
Marking Speed | 7m/s(275.6in/s) |
Min. Line Width | 0.01mm(0.0004in) Depends on the material |
MIn. Character | 0.2mm(0.008in) Depends on the material |
Electrical Requirements | 110V 50hz |
PACKAGE SIZE | 309*190*318in |
Marking Interface | USB connection.Compatible with Windows XP/Vista/7/8/10. |
Power Consumption | 800W |
Communication MODE For Automation | TCP/IP, IO, RS232 |

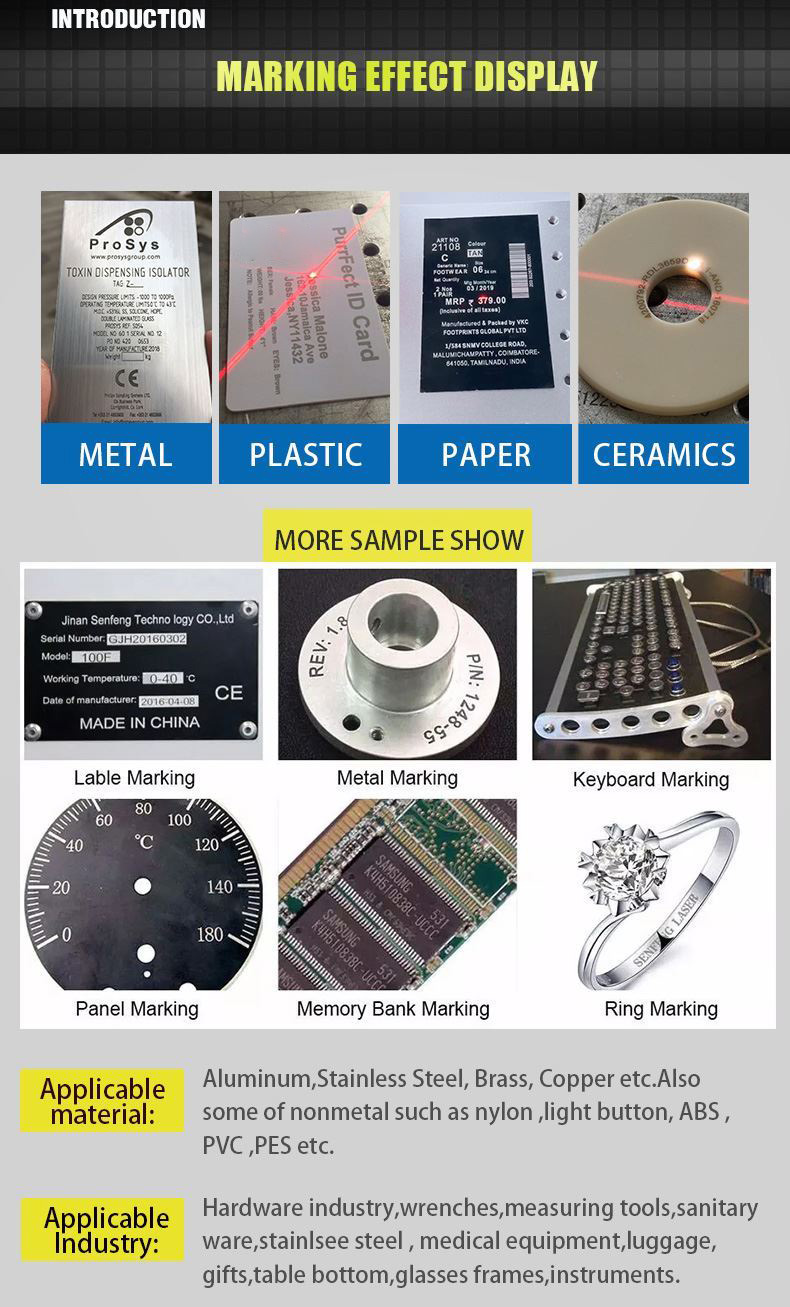

Marking Content | Barcodes,serial number,text,vector,and logos |
Weight | 12.5lbs |

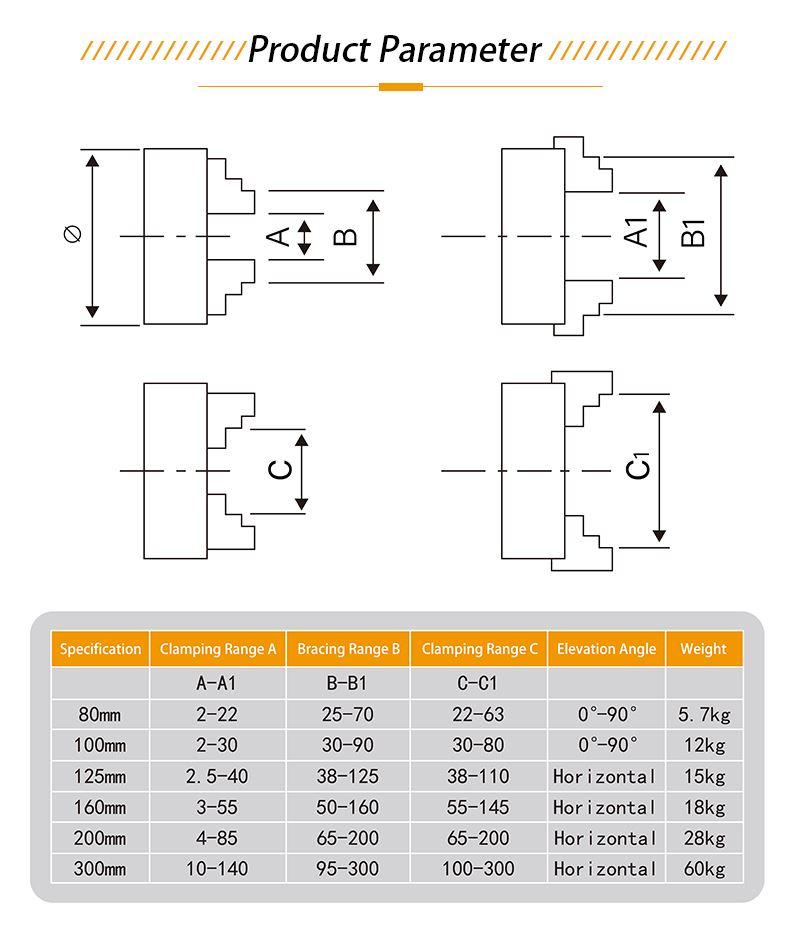

Internal Clamping Range(A-A1) | 2 - 22mm / 0.07 - 0.8in |
Clamping Range(B-B1) | 25-70mm / 0.9 - 2.8in |
External Clamping Range(C-C1) | 22-63mm / 0.8 - 2.5in |
Elevation Angle | 45/90° |
- Description
30W Fiber Laser Engraver,Rotary Laser Marking Machine 6.9"*6.9" 1pc
About this product
1. Laser Power : 30W
2. Marking Area : 175*175mm(6.9*6.9in)
3. Max. Material Thickness :206mm(8.1in)
4. Repetition Rate :1-400kHZ
5. Marking Speed :7m / s (275.6 in / s)

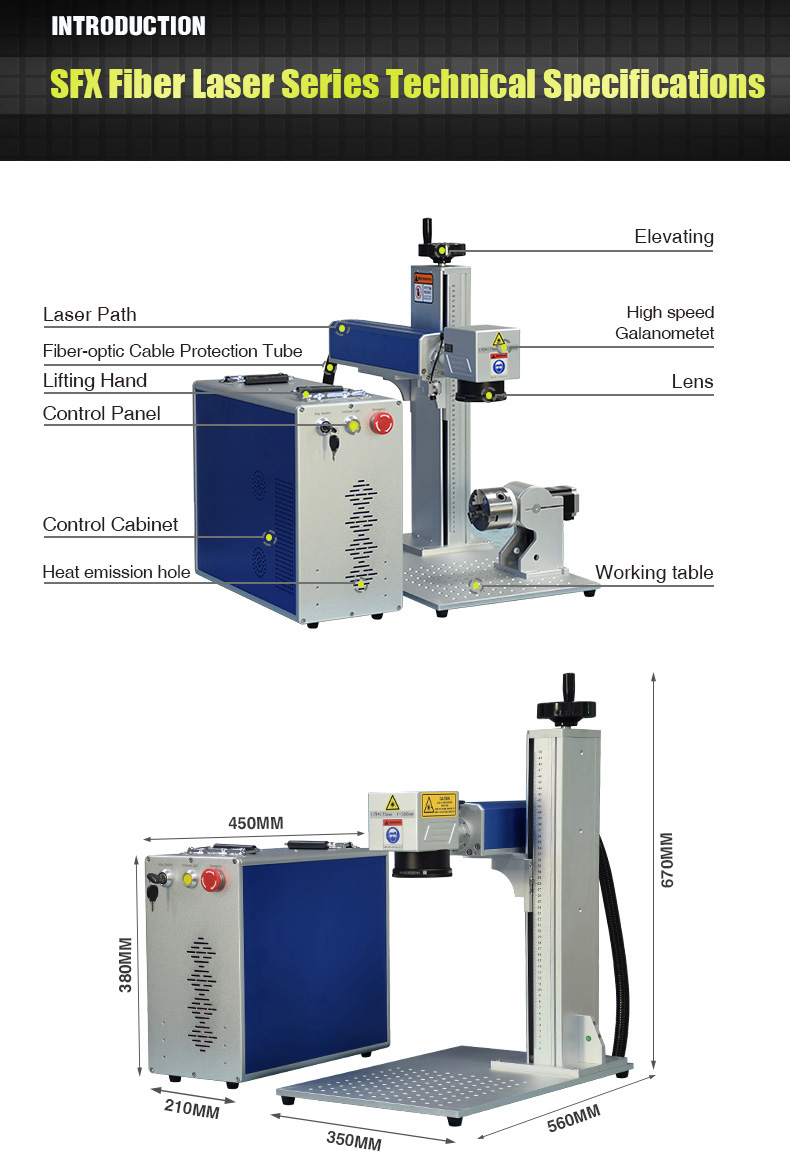

30W Fiber Laser Marking Machine Equipped Laser Source and Dia.80mm Rotating Head

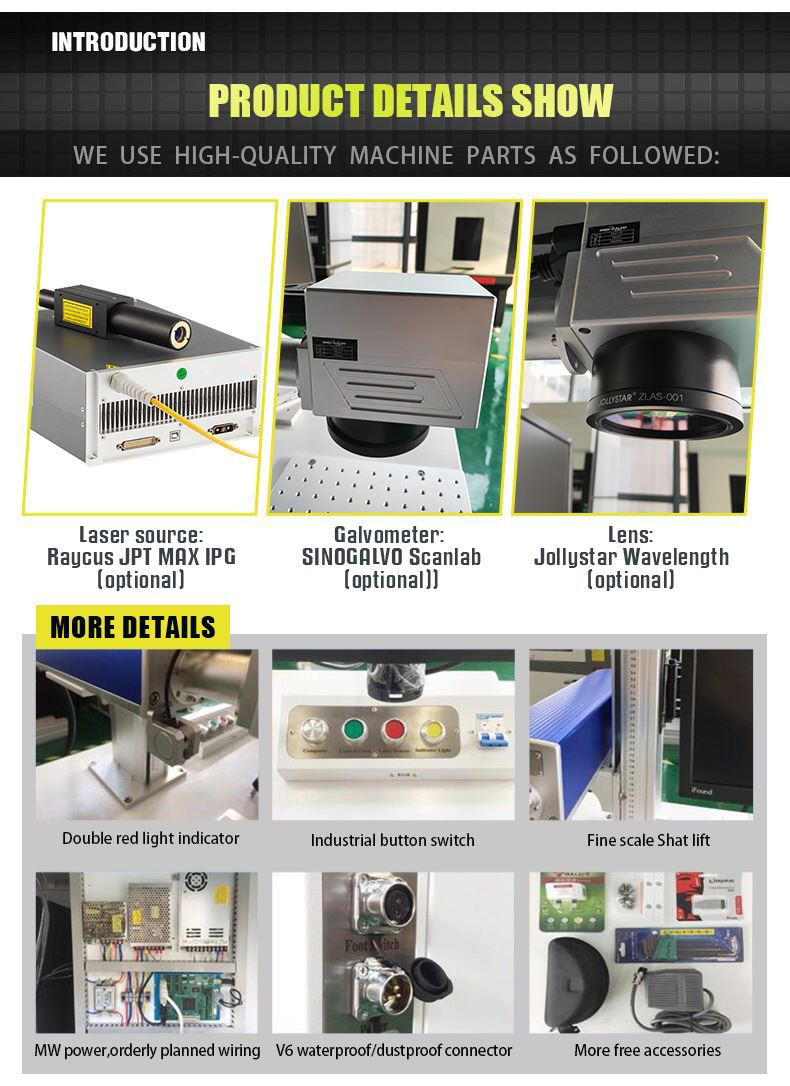

- Laser Type : LP+ Lasers . Repetition Rate:1-400kHZ . Control board : BJ JCZ board(Original) Program : EZCAD Stable performance and high reliability . Compatible with Windows XP / Vista/ 7 / 8 / 10.
- Laser Power : 30W . Marking Area : 6.9*6.9in Engraving Depth : ≤ 0.4mm(0.016in)

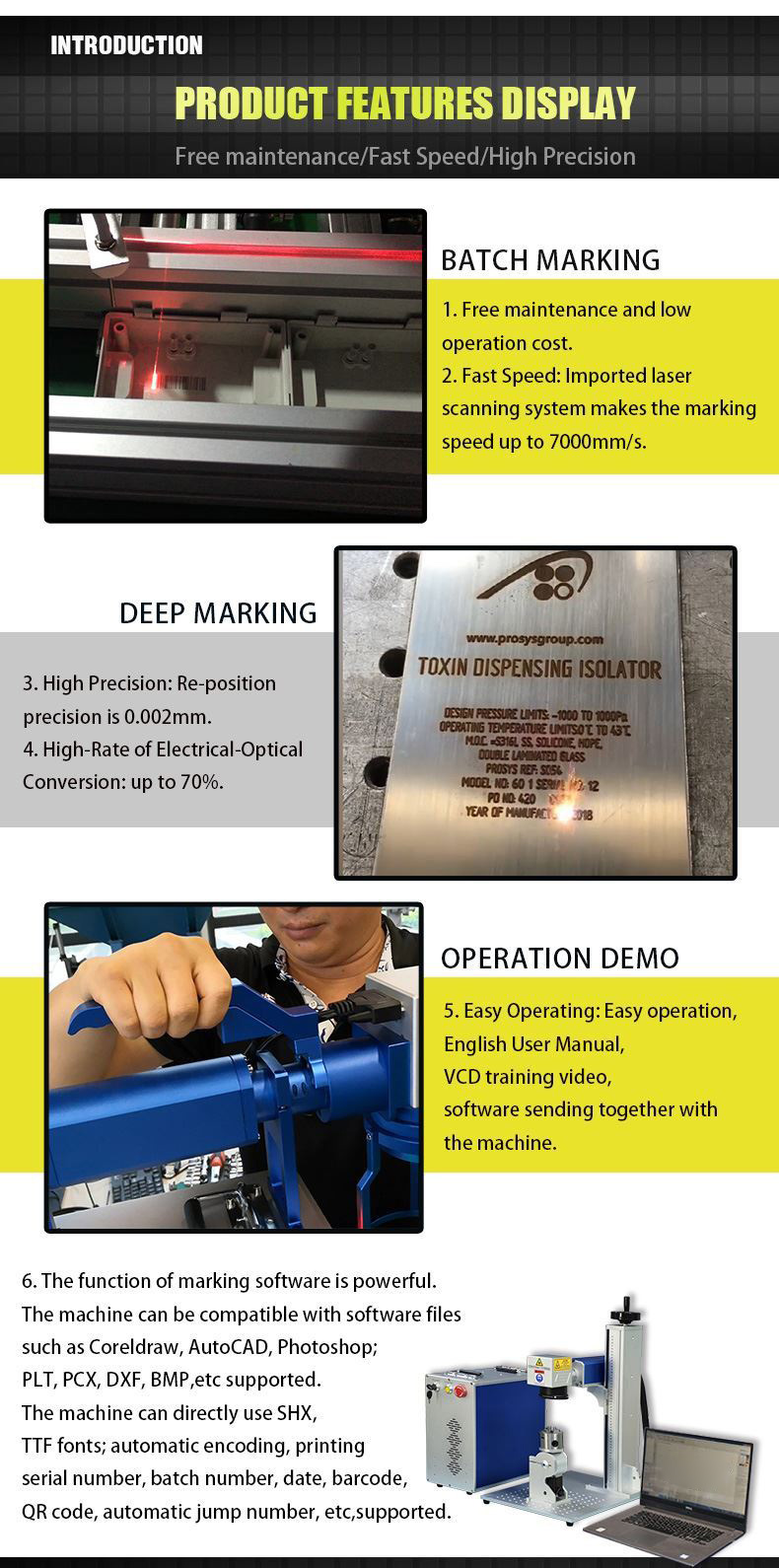

- Imported laser scanning system makes the marking speed up to 7m/s(275.6 in / s) , Re-position precision is 0.002mm , High-Rate of Electrical-Optical Conversion : up to 70%.
80mm Rotary Axis

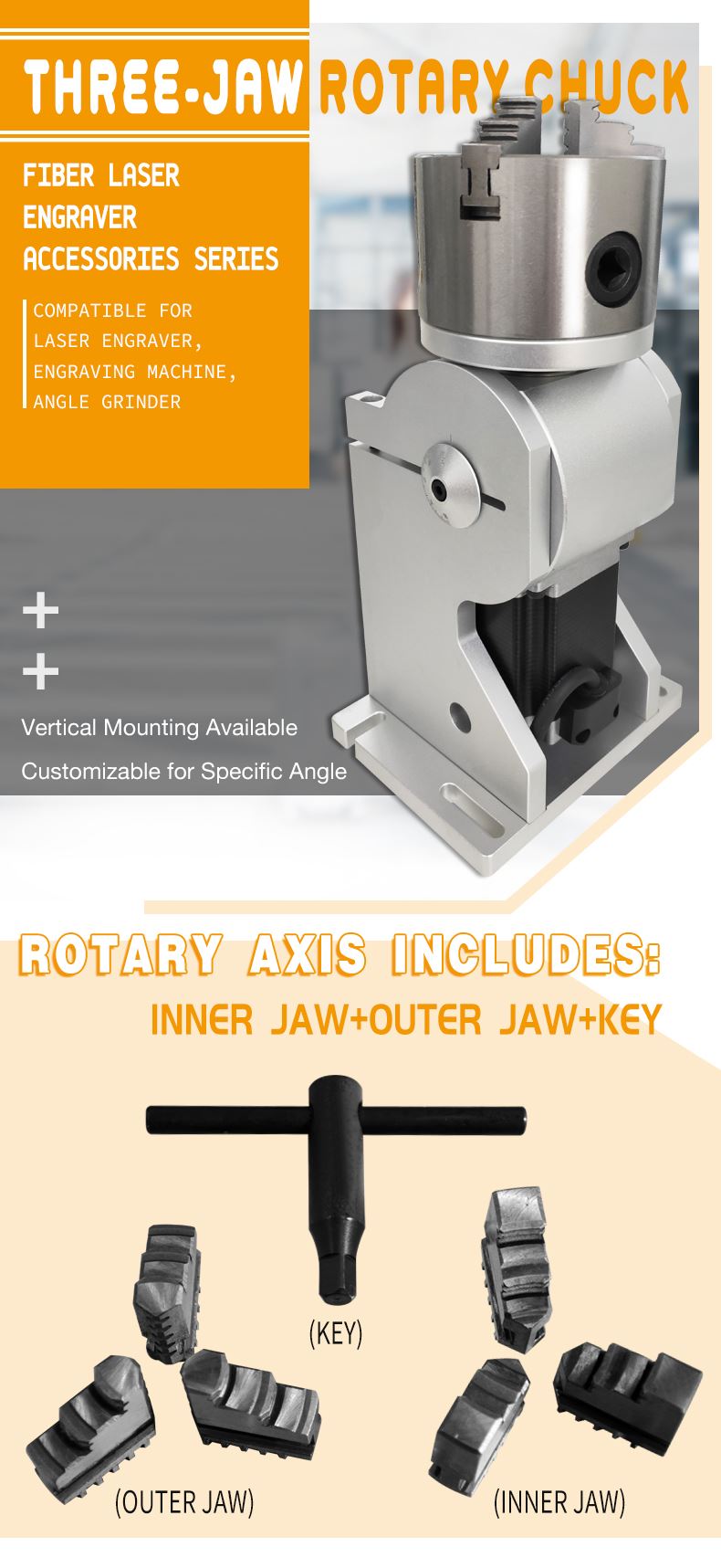

- --80mm (3.15in) Three-jaw Rotary Axis + Drive.
- -- Internal Clamping Range : 2 - 22mm . External Clamping Range : 22 - 63mm

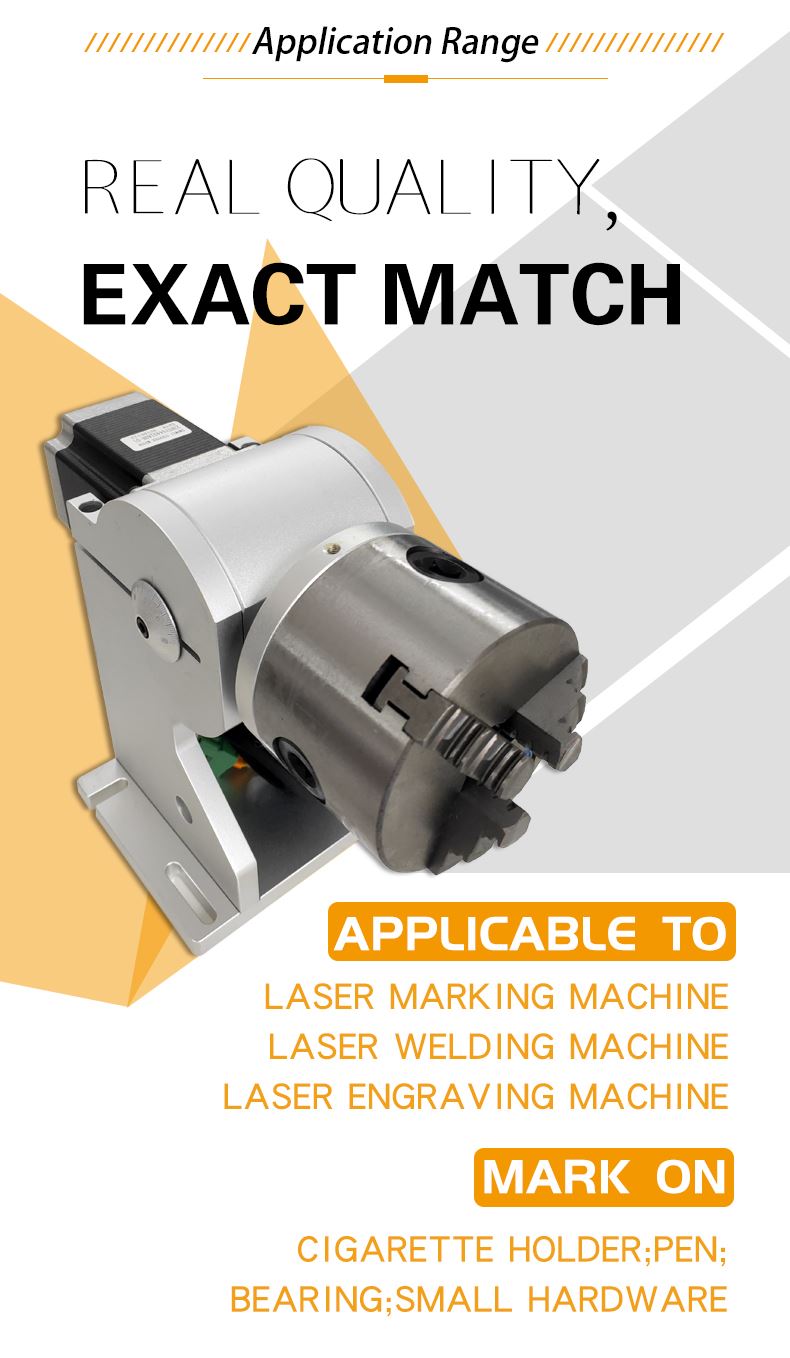

- --This rotary fixture is mainly for small hardware such as rings , bracelets , Cigarette holder , Pen , Bearinge , tc.

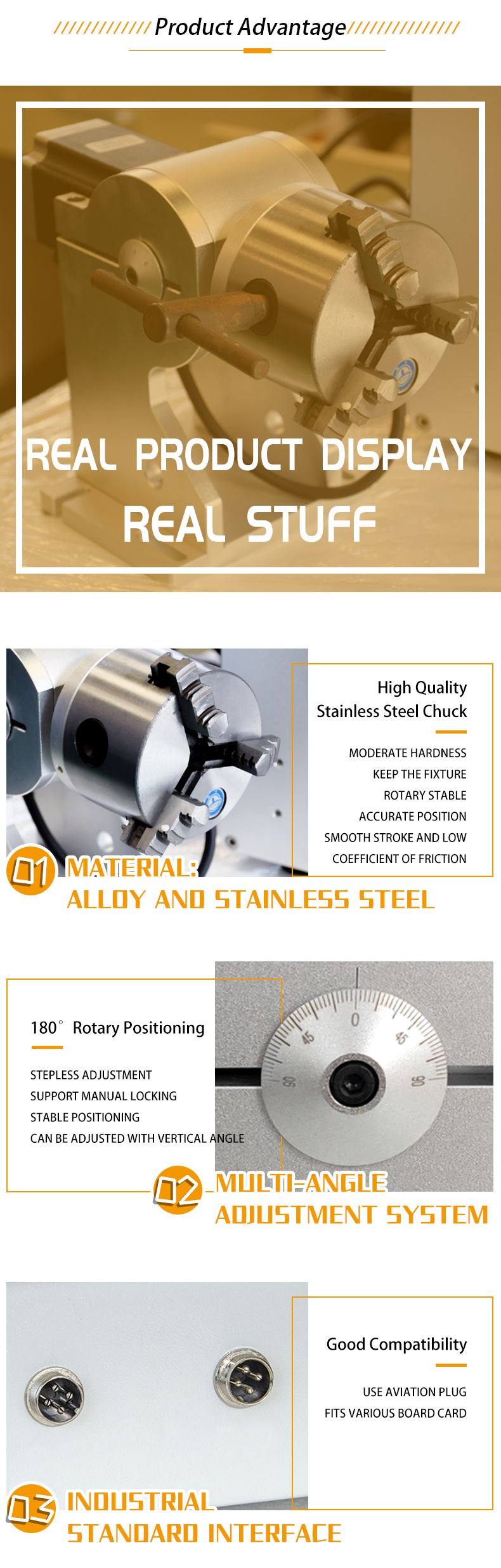

- -- Rotary spring clamping , fast mounting and dismounting to improve work efficiency Accurate Position . 180°Rotary Positioning. Stable Positioning.
- -- Industrial Standard Interface . Use Aviation Plug Fits Various Board Card
Red Dot Pointer : Focus finder can quickly find the focal length without using a ruler , just to see if the red dots and red lines overlap on the surface of the product which you want to mark.

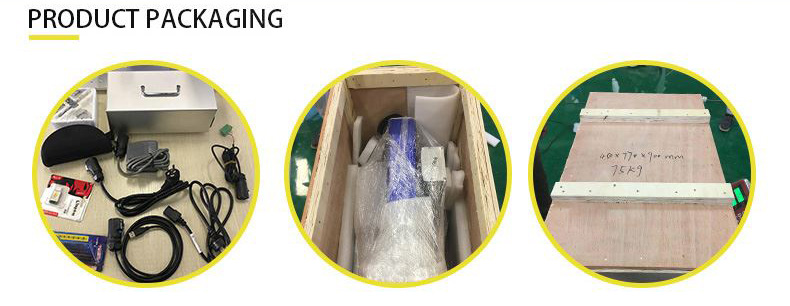

Package content : 1 set 30W Fiber Laser Marking Machine Equipped Laser Source + 80mm Rotary Axis
Note : Please use the supplied USB cord with the engraver.
