30W Portable Fiber Laser Marking Machine New Update MOPA Galvo

Mopa 30W Split portable galvo Fiber Laser Marking Machine

We make quality. We pay attention to each details of the machine.we don't make price war and we put quality at first position!

Applicable Materials >>>>

Applicable Industry >>>>
Laser Marking Machine is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

Main Features  >>>>
1.New tyle MOPA LP 30W laser source,Maintenance-free and 100 000 hours long life time.

JPT LP series are fiber lasers that use direct electrical modulation semiconductor lasers as the seed source (MOPA) solution, with high-quality laser characteristics and good pulse shape control capabilities. Compared with Q-switched fiber lasers, LP series lasers have greater flexibility, can achieve a larger range of frequency adjustment, higher control accuracy, and better performance of the first pulse.

laser source features
----It adopts top quality mopa laser more possible choice on frequency 1-600khz;Color with Chinese style characteristics; small size;
---- this fiber laser come with smart cooling fan(the cooling fan only working when over certain temperature) very quiet in your workroom.
----stainless steel black marking than ordinary laser faster, more efficient.
---- zero laser leak. more safe to your workpiece.

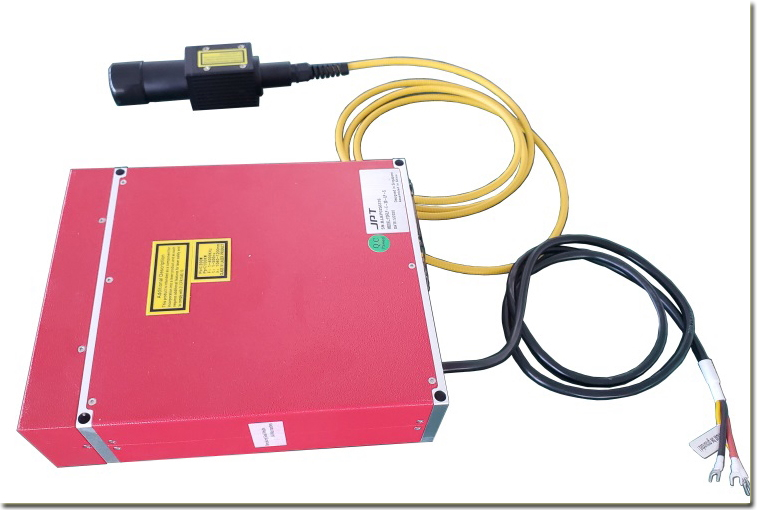

laser source photo

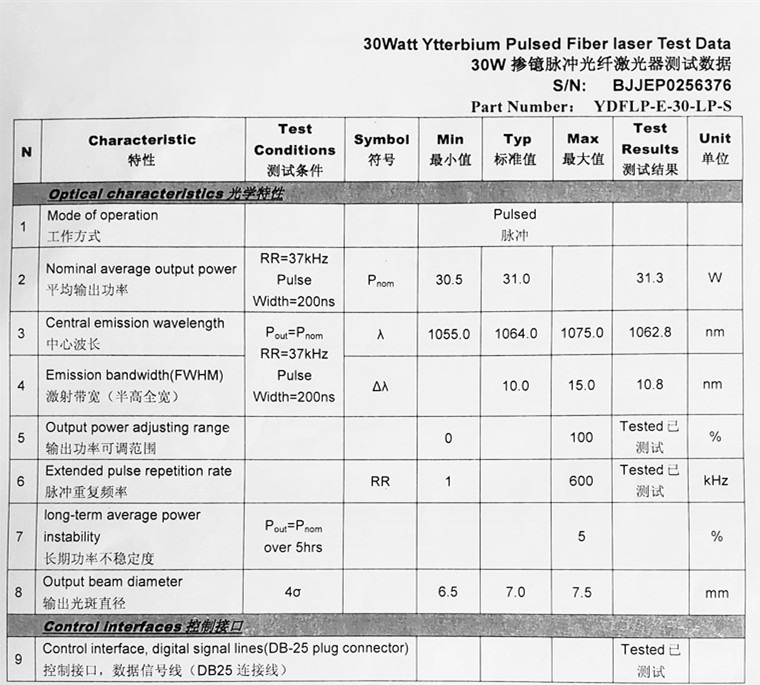

Laser source Test data

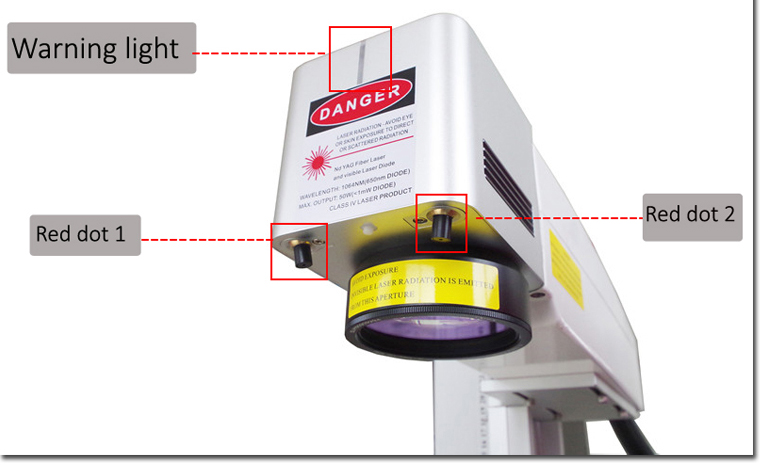

2. Best quality high speed precision digital Galvotech scan head with warning ligh and double red dots built in.

    Double red dots(red dot 1 and red dot 2) more easy to get focus.

1)The warning light on  can quickly help users judge whether the machine is working properly and play a warning role.

    -----Green light display---the machine is working normally;

    -----Red light shows-the machine is not operating normally

2)Double red dots function is greatly saving the focus length finding time.

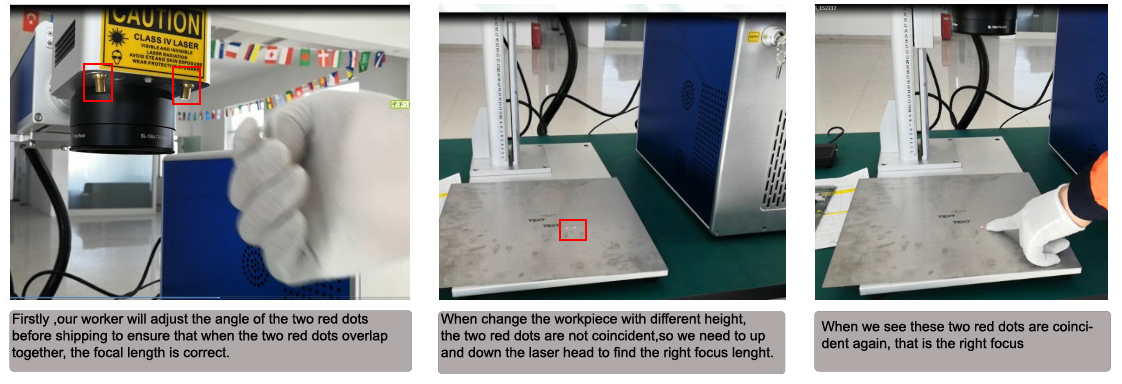

   -----We will adjust the angle of the two red dots in advance according to the specifications of the field lens, so that when the two red dots overlap together, the focal length is correct.  focus length:The distance between the field lens and the top surface of the workpiece is fixed, then can get the strongest laser right.

   -----when we change the workpiece with different height, this the focal lenght is not coccret  then,we can see that the two red dots are not coincident . so we need to up and down the laser head to find the right focus lenght.

   -----When we see these two red dots are coincident again, that is the  the right focus

 3. The most popular and newest Genuine EZCAD control program compatible with win7/win8/win10, Professional  laser control card,
The operating system is mature and stable.

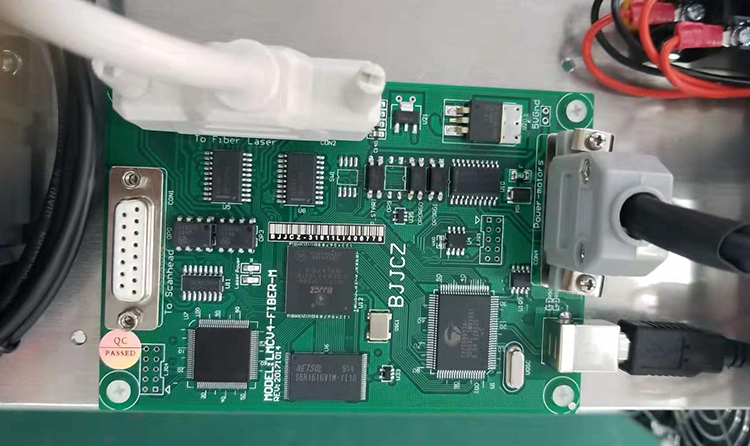

    1) Control card photo

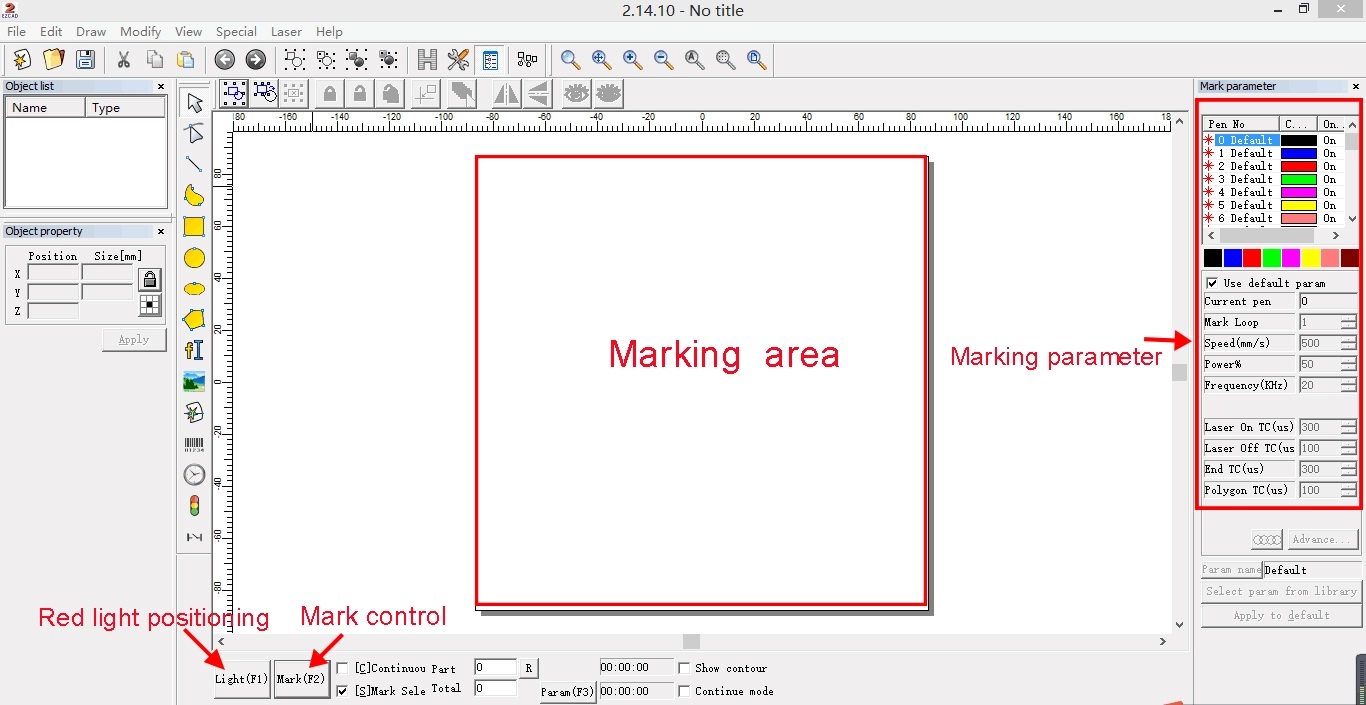

2) Ezcad control software main interface

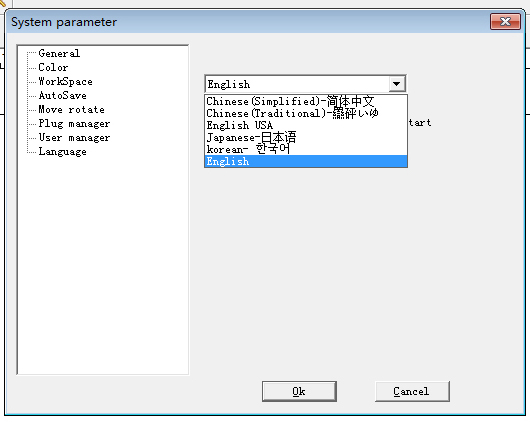

3) Usually supports 6 languages as following picture show

-------English

-------Chinese(simplified)

-------Chenese(tradational)

-------Japanese

-------Korea

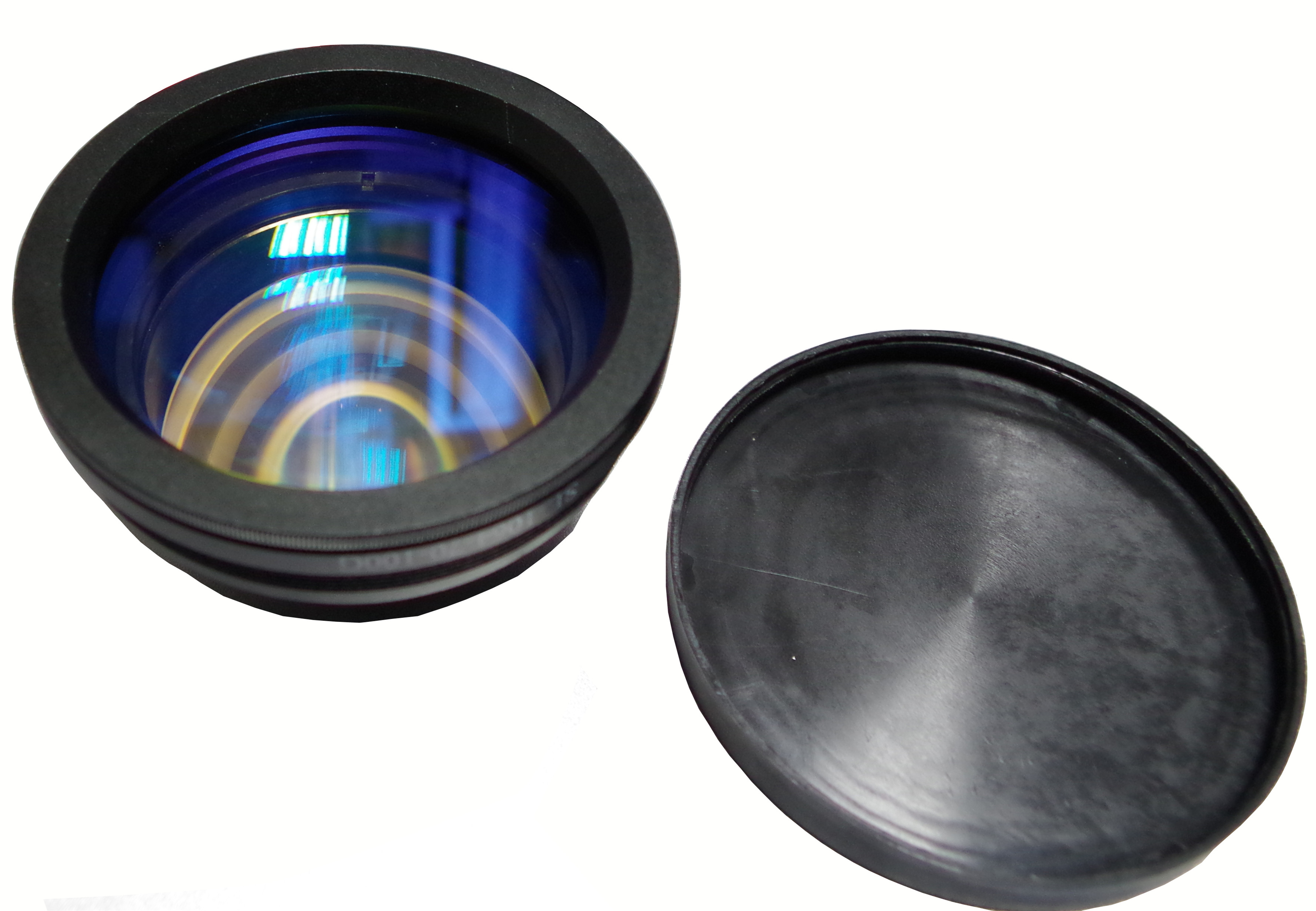

4.  F-Theta scan lens with 110x100mm working area in this machine. Famous field lens from "wavelength"company, Good light transmittance.

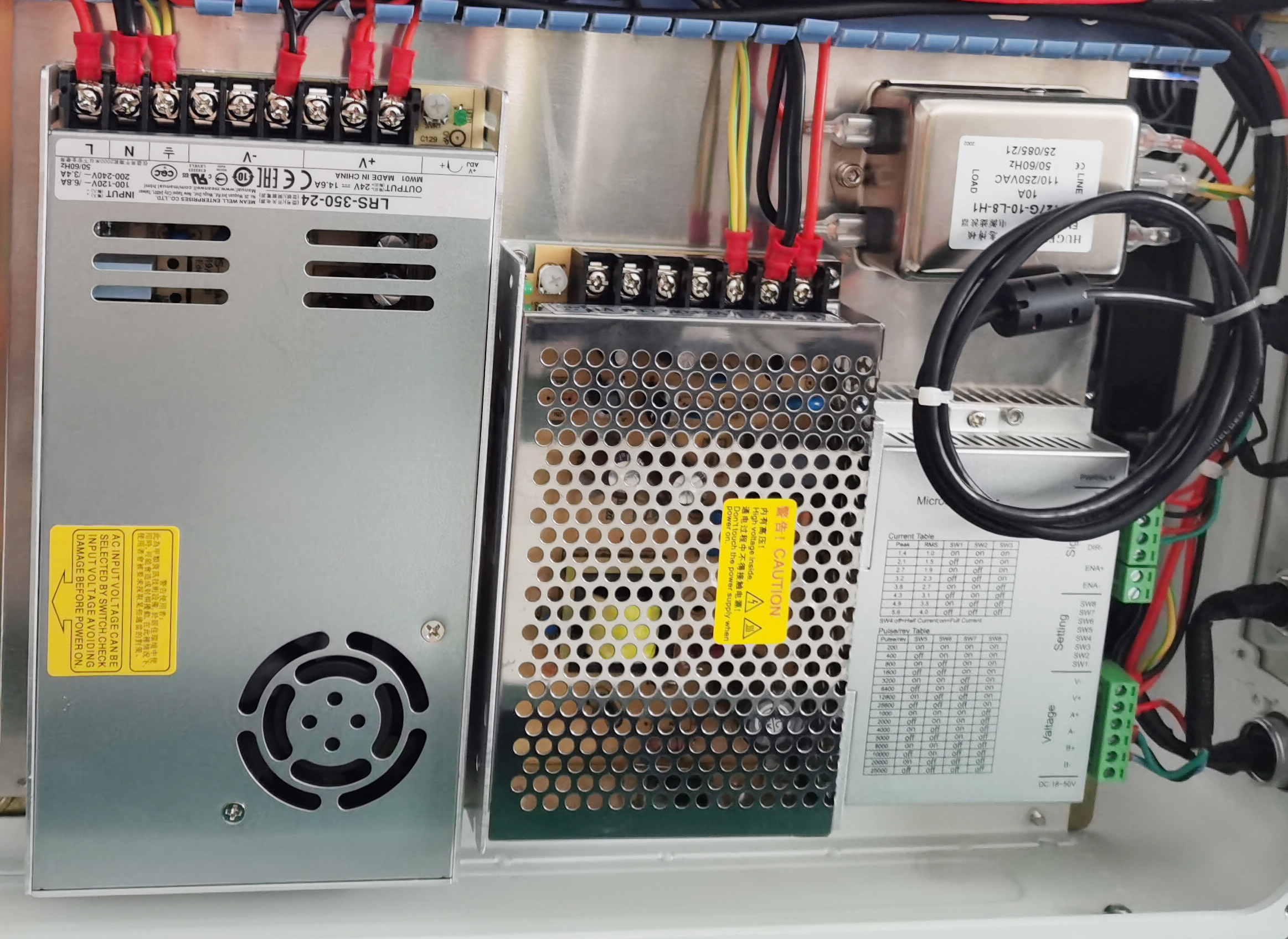

5.Quality famous China power supply and top quality  AC conductor and switch, High-quality electronic components greatly improve work quality and work stability.

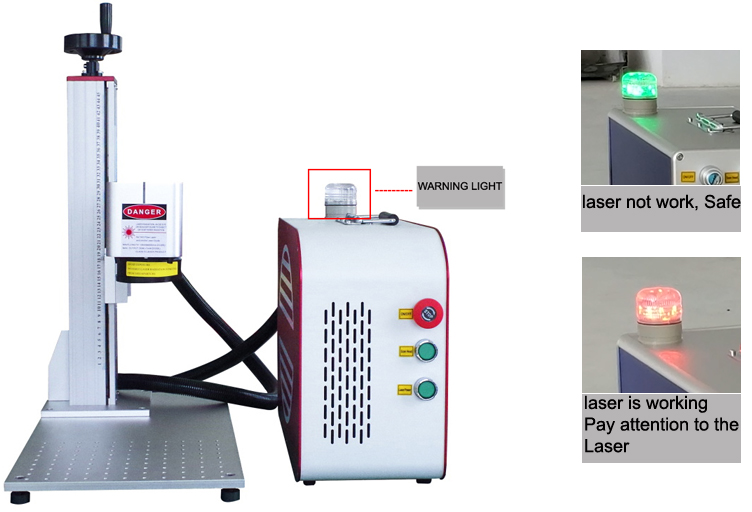

6.The machine is equipped with international accepted warning lights

-------The yellow light means the laser is working, please pay attention to safety;

-------The green light means that the laser is not in the emitting state and is safe

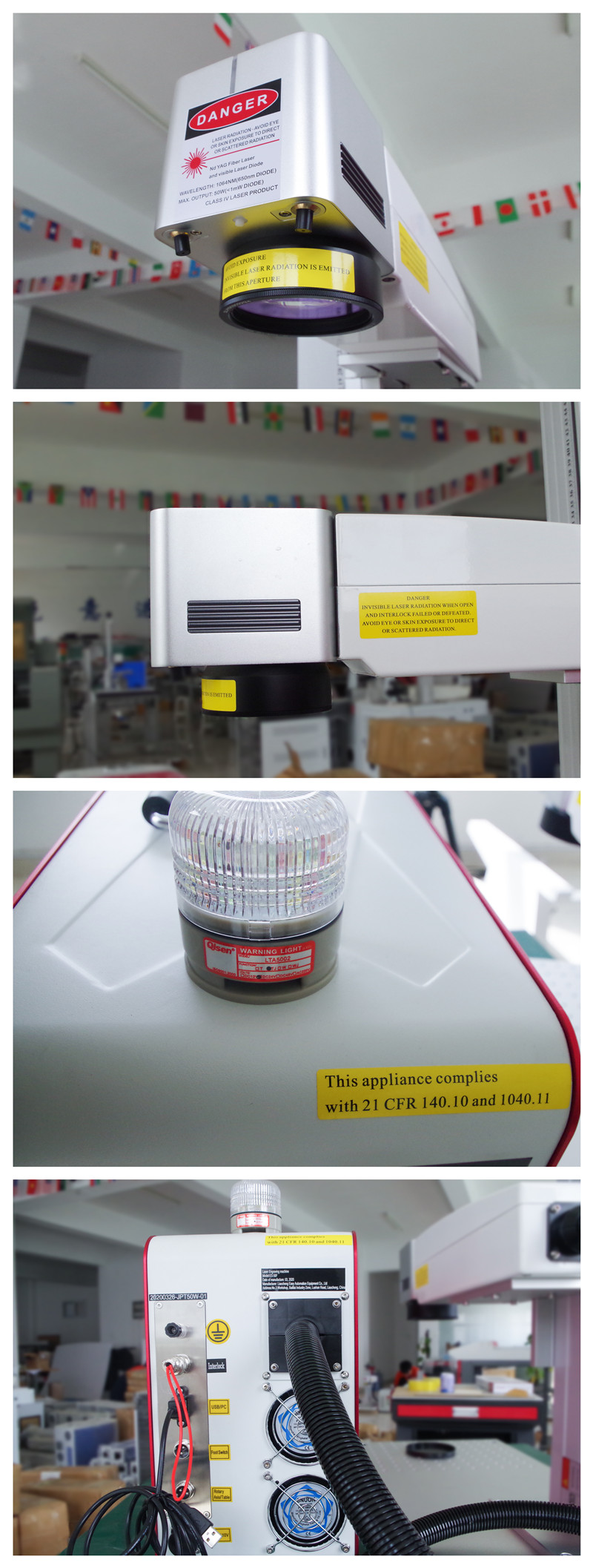

7.In strict accordance with the requirements of the US FDA, parts labels and warning labels are attached to the machine.

9.The machine body has novel styles and good manufacturing technology.

-------- Adopting the most advanced manufacturing process in China, the model is beautiful and the quality is good.

-------- All-aluminum body design, Z-axis rigidity is better, and the lifting is more smoother;

--------Re-optimize the circuit, the machine runs more stable;

--------Added motherboard anti-static function to protect the motherboard from high voltage interference.

--------- The machine is more refined, easy to move

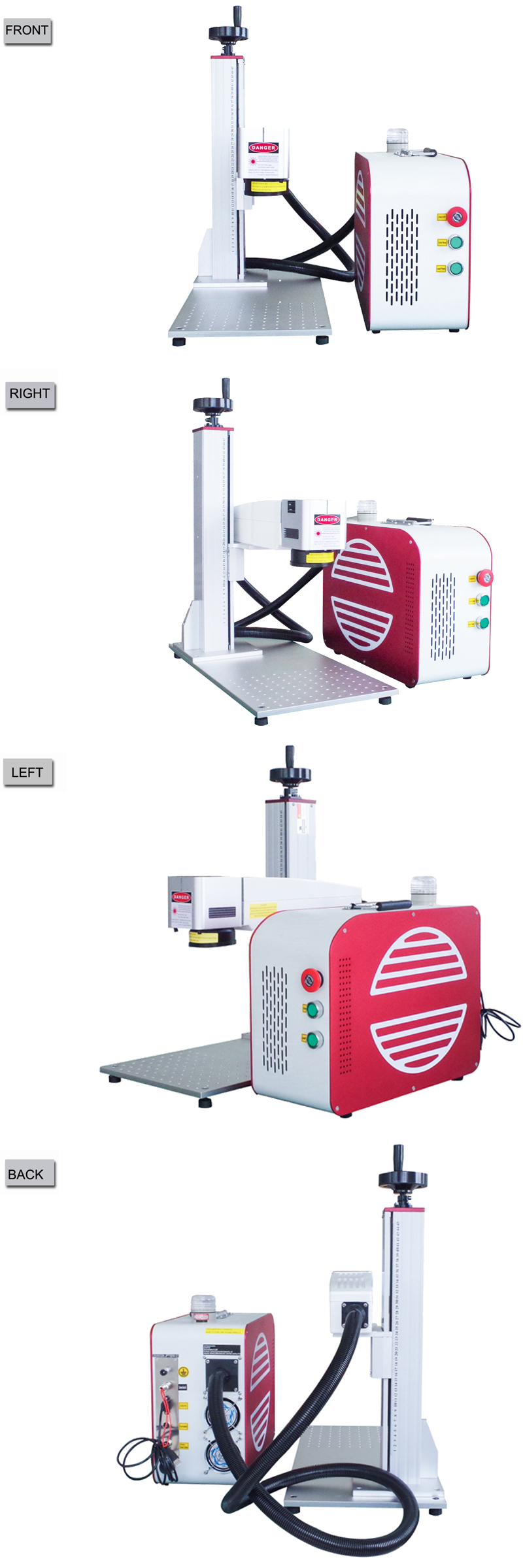

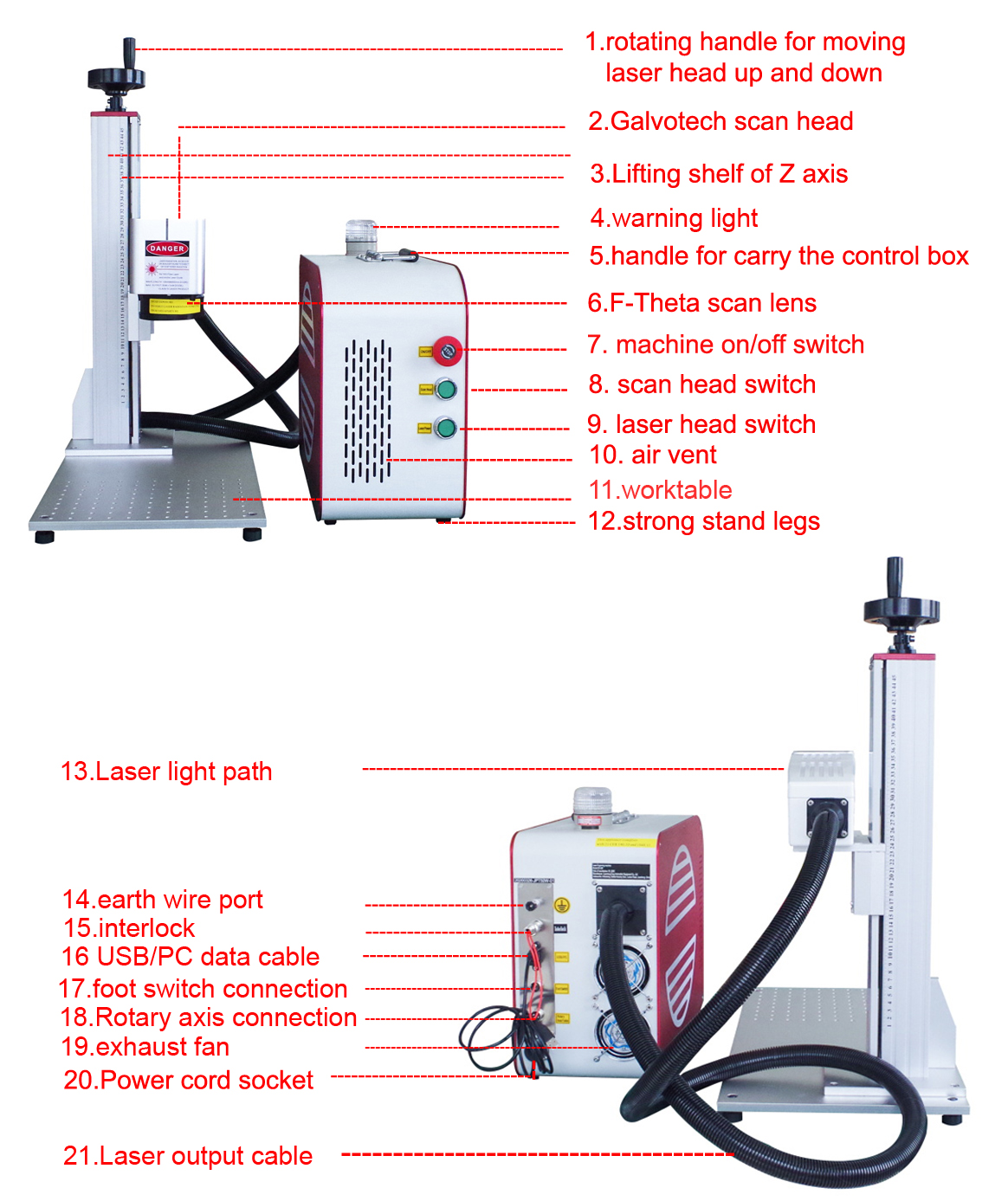

 Machine structure>>>>

Machine size >>>>

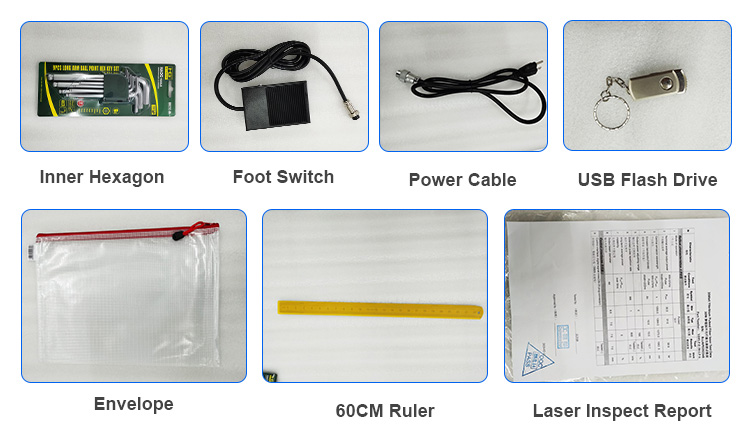

Standard accessories of this 30w fiber laser marking machine >>>>

Name		QUANTITY
1	inner hexagon wrench	1pcs
2	Foot touch switch	1pcs
3	Power Cable	1pcs
4	USB flash drive	1pcs
5	Envelope	1pcs
6.	60CM rular	1pcs
7.	Laser inspect report	1pcs

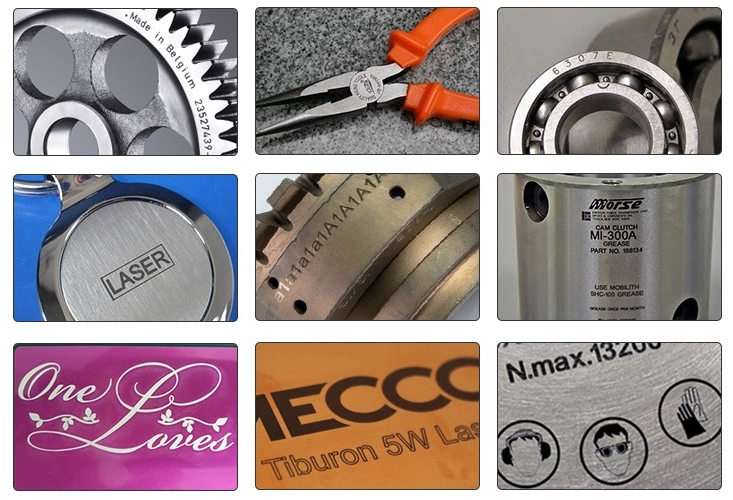

Marking samples of MOPA 30W FIBER LASER MARKING MACHINE >>>>
