30W Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA
from
$4,899.00
Ex Tax: $4,899.00
  • Stock: In Stock
  • Model: SCJ004133
  • SKU: SCJ004133
Products Sold: 0
Product Views: 202

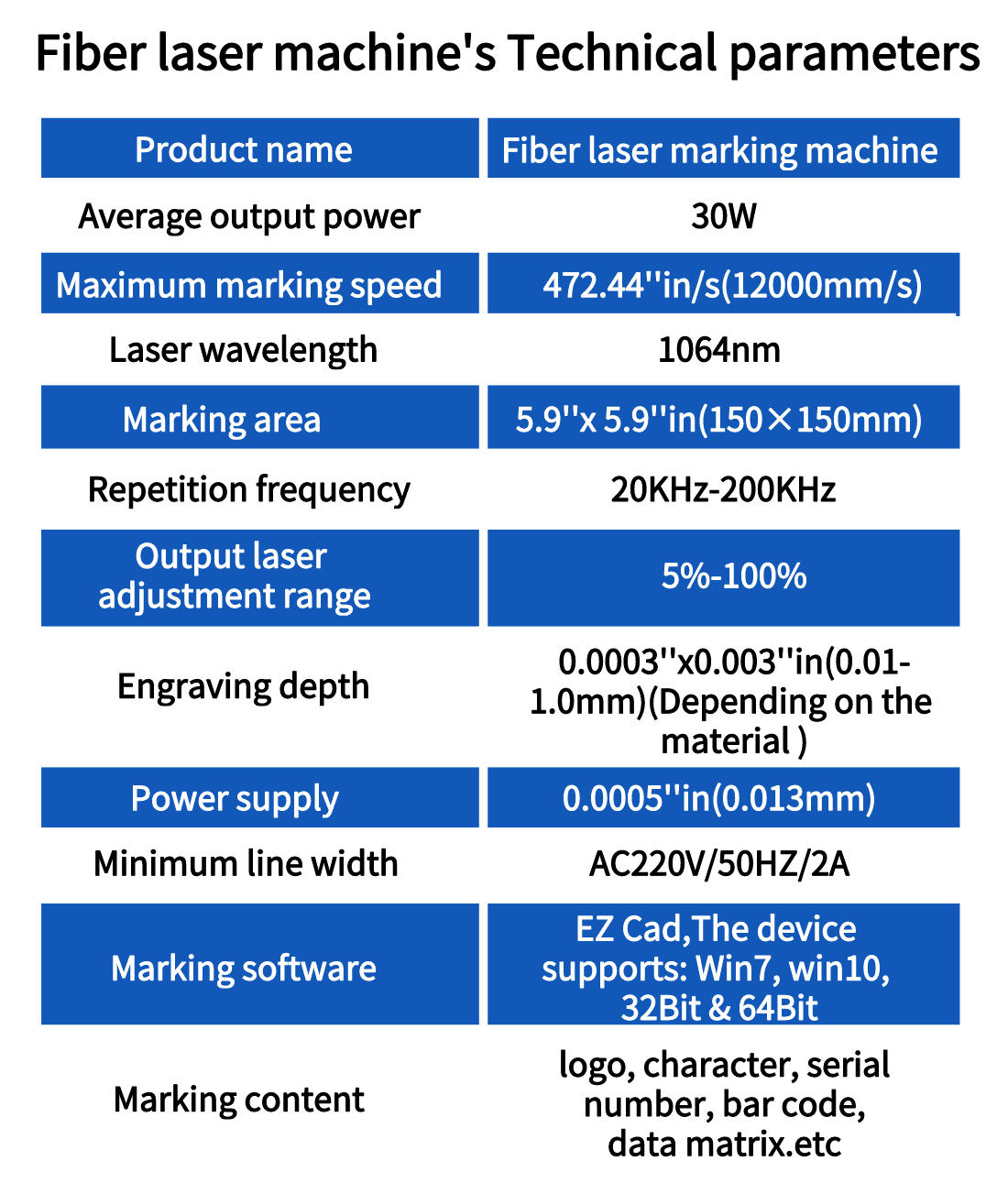

  • Specifications
attribute-list
Product name:Fiber laser marking machine
Laser Wavelength1064nm
Marking Area5.9''x5.9''in(150×150mm)
Average output power30W
Beam QualityM2:1.2
Maximum marking speed472.44''in/s(12000mm/s)
Power supplyAC220V/60HZ/2A
Repetition frequency20KHz-200KHz
Adjustment range5%-100%
Minimum character0.007''x0.007''in(0.2mmx 0.2mm)
Cooling SystemAir cooling
Engraving Depth0.0003''x0.003''in(0.01-1.0mm)(Depending on the material )
Repeat accuracy0.0007''in(0.02mm)
Minimum line width0.0005''in(0.013mm)
Operating Temperature5℃-43℃
Control interfaceUSB
Continuous working time24h
Equipment working environmentClean or less dust
Laser safety gradeCLASSIV
System protection levelIP54
  • Description
About this product

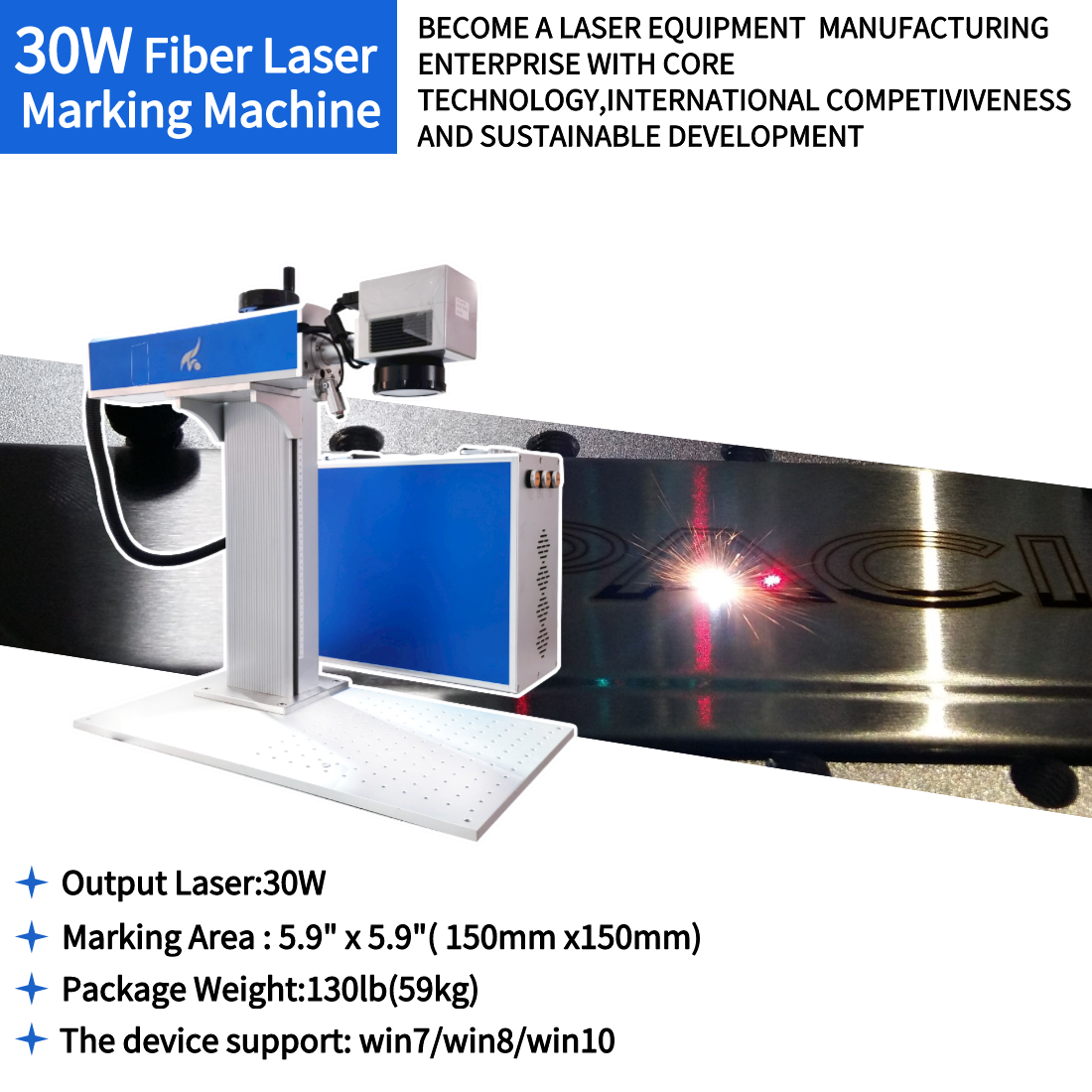

1. Output power for laser engraver marking machine: 30W

2. Marking Area : 5.9" x 5.9"( 150mm x150mm),Engraving Depth : ≤ 0.3mm,and Marking Speed : ≤ 295.3in/s

3.The service life for the laser marking machine is able to reach 100,00 hours

4. Small desktop laser marking machine, easy to operate and move

5.Sofeware: EZ Cad,powerful edit function, easy to use.The device supports: Win7, win10, 32Bit & 64Bit

30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA

Packaging Method
Wooden
Package Dimension
30.3x22.4x34.2 in(77x57x87cm)
Package Weight
145lb(66kg)


30W Fiber Laser Engraver Marking Machine



A laser marking machine is using the laser beam to mark a permanent mark on a variety of different material surfaces. Or through the light of the physical changes in the surface material, "carved" traces, or through the light burning part of the material, showing the required etching pattern, text, bar code, and other types of graphics. It can be widely used in many fields, such as integrated circuit chip graphics, computer accessories, industrial bearings, watches, electronic and telecommunication products.

30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA

30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA

 Application

Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumables. It’s very cost-effective. It boasts fast marking speed and high marking precision. It’s widely used and well accepted in the prevailing international market.

30W  Fiber Laser Marking Machine Laser Engraver Marking Machine For Metal And Nonmetal EZCadFDA
