30mm Tapered Roller Bearing, Single Row 1pc

Brief

Lower price single row tapered roller bearing comes with inner diameter of 30mm, outer diameter of 62mm, width of 17.25mm, P6 accuracy class. The 30mm roller bearing can run at high speed and rotate with very small friction resistance, so as to obtain high‑precision and stable movement.

Description

The reliable tapered roller bearing comes with inner diameter of 30mm, P6 accuracy, and 650 rpm limiting speed. The outer ring and inner components of the roller bearing can be separated, which is convenient for assembly and disassembly.

Specification

  • Model: ATO-30206
  • Inner diameter: 30mm
  • Outer diameter: 62mm
  • Width: 17.25mm
  • Accuracy class: P6
  • Limiting speed: 650 rpm
  • Bearing basic dynamic load rating: 25.8 kN
  • Rated static load: 163 kN
  • Bearing material: Bearing steel

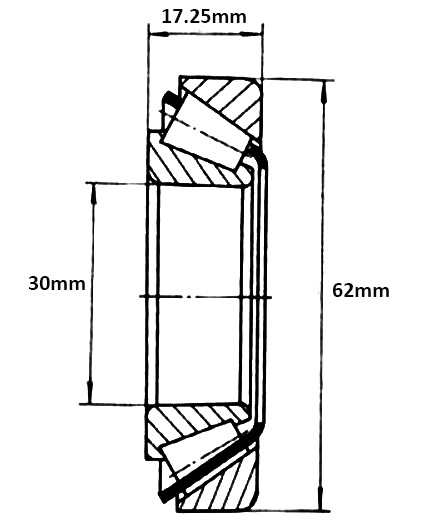

Dimension (mm)

30mm Tapered Roller Bearing, Single Row

Application

30mm Tapered Roller Bearing, Single Row

Tips: Do tapered roller bearings need preloading?

It is very important to have the proper preload of the tapered roller bearings typically found in all tube, pipe and roll form mills. Preload is defined as how many inch-pounds of rotational force are required to continually rotate a shaft when the tapered roller bearings are properly tightened.
