31" x 9" Drill Press Milling Machine Mark Super 1 set
from
$11,575.00
Ex Tax: $11,575.00
- Stock: In Stock
- Model: SCJ004465
- SKU: SCJ004465
Products Sold: 0
Product Views: 215
Ask a Question About This Product
- Description

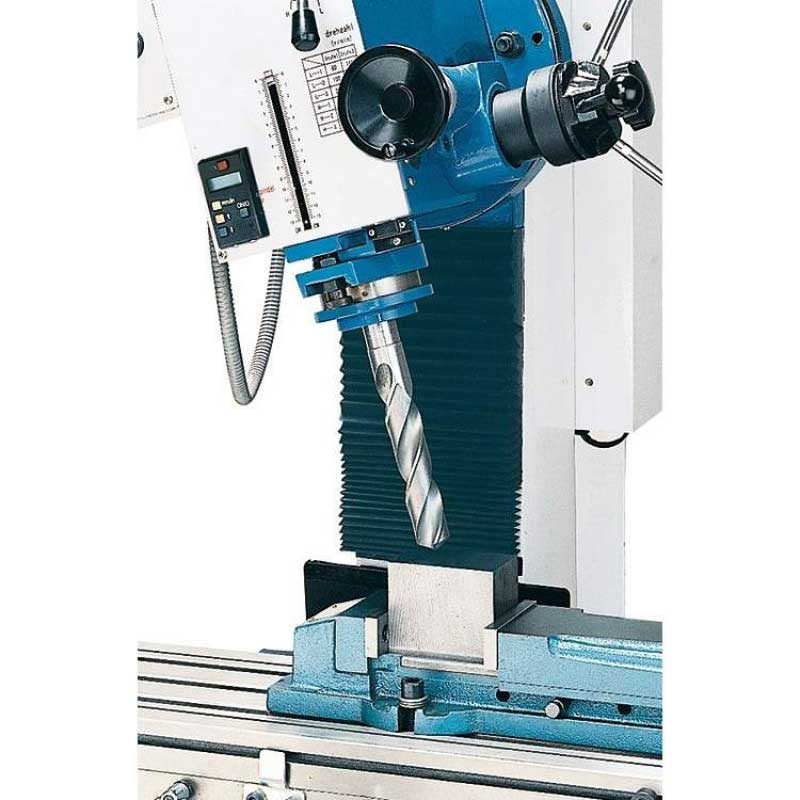

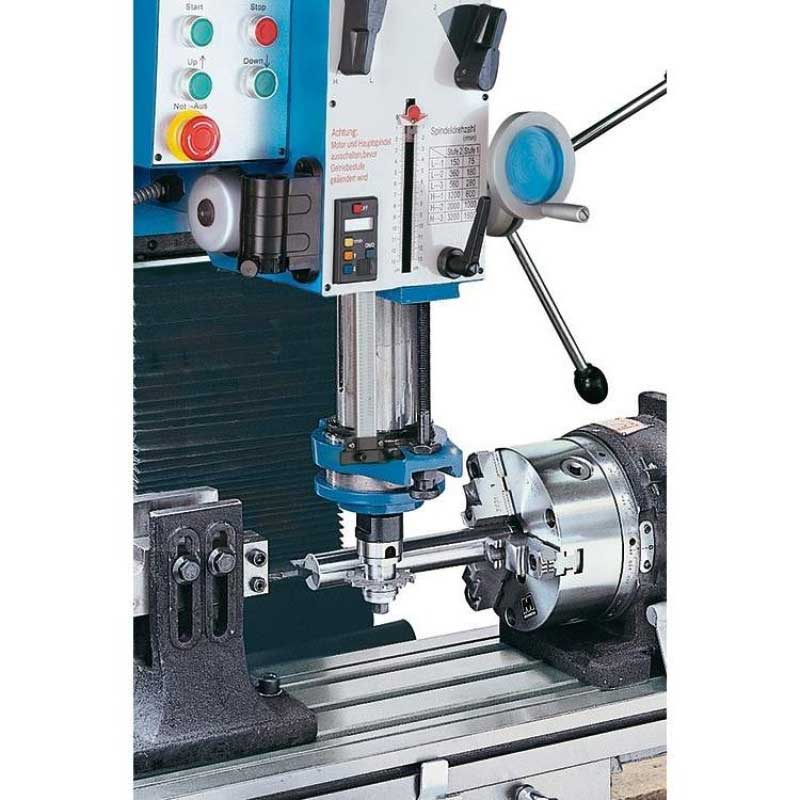

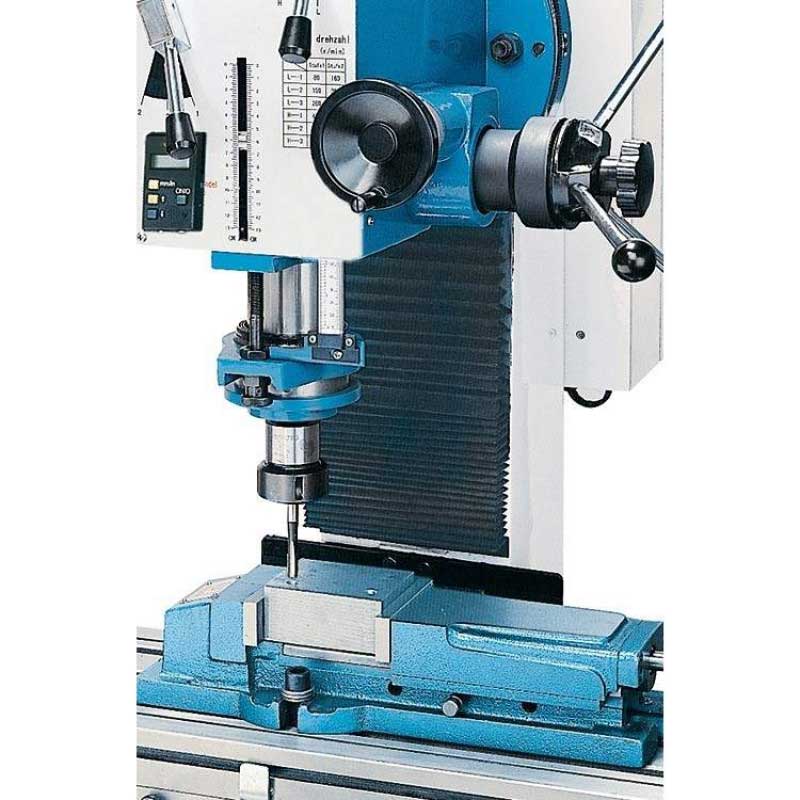

31" x 9" Drill Press Milling Machine Mark Super 1 set
About this product
- Automatic quill feed with 3 gear steps
- Hand-wheel for quill micro-feed
- Digital depth indicator for quill travel
- Tapping unit with adjustable rotation reversal for thread cutting
Knuth Machine Tools offers a wide variety of drill presses from bench-type column drill presses to CNC drill presses. Knuth machines ensure ease of use from their simple and user-friendly design. All of the machines go through testing by trained professionals in Germany and is known for its high reliability and precision.
More power and variable speed control for a wider range of applications
- Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
- The selected spindle speed is displayed directly on the control panel
- Infinitely variable table feed
- Motorized cutter head movement and hand-wheel for exact positioning of head
- Premium cast-iron machine frame with adjustable dovetail guides on all axes
- Automatic quill feed with 3 gear steps
- Hand-wheel for quill micro-feed
- Digital depth indicator for quill travel
- Tapping unit with adjustable rotation reversal for thread cutting
- Hardened gear racks and shafts for quiet operation and long life
- Rigid base with storage room is included
- Infinitely variable feed on X is included
| Mark Super SV | |
| Working Area | |
| X-axis Travel Autom. / Manual | 19 / 22 in |
| Travel Y-axis | 7 in |
| Table Dimensions | 31 x 9 in |
| Drilling Capacity in Steel | 2 in |
| Guide Width | 5 in |
| Shaft Milling | 1.26 in |
| Head Elevation | 15 in |
| Speed | (2) 75-438 / 438-2500 1/min |
| Slots (number/width/spacing) | 0.12x0.55x3.15 in |
| Vertical Milling Head | |
| Spindle Mount | MT 4 |
| Quill Diameter | 3 in |
| Spindle Nose-to-table Distance | 18 in |
| Throat | 10 in |
| Head Swivel Range | ± 45° |
| Quill Stroke | 5 in |
| Drive Capacity | |
| Main Motor Rating | 2 HP |
| Measures and Weights | |
| Overall Dimensions (length x width x height) | 48.82 x 36.61 x 82.68 in |
| Weight | 1056 lbs |
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
