3" Diameter Boring Head 7/8"-20TPI

Buy Now

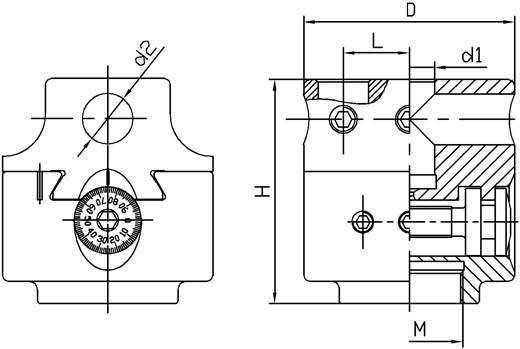

Specifications

attribute-list
Cross Hole Diameter(d2)	3/4"
Thread Size(M)	7/8"-20TPI
Body Diameter (D)	3"
Boring Bar Hole Diameter (d1)	3/4"
Mount Type	Threaded Mount
Overall Length(H)	3-5/32"
Net Weight	4 lbs
Offset	1"
Gross Weight	4.3 lbs
Center Distance Between Holes (L)	15/16"
Diameter Direct Reading	0.001"
Meas	Φ3.54 × 4.01 in.

Description

3" Diameter Boring Head 7/8"-20TPI

About this product

1. Threaded Mount: 7/8"-20 TPI

2. Maximum offset is 1" and minimum graduation is 0.001"

3. Boring head O.D. size is 3", boring bar diameter is 3/4", Includes adjusting wrenches

4. Wide bearing surface assures maximum rigidity

1. This high quality Boring Head is an excellent performer at an affordable price

2. Maximum offset is 1" and minimum graduation is 0.001"

3. Boring head O.D. size is 3", boring bar diameter is 3/4", Includes adjusting wrenches

4. Wide bearing surface assures maximum rigidity

5. Hardened and ground adjusting screw along with a wide base design guarantees long life and trouble free use
