3mm Corner Radius End Mill 4 Flute 0.5R , TXM Coated, HRC45, 3/16" Shank, Made In China

Buy Now

Specifications

attribute-list

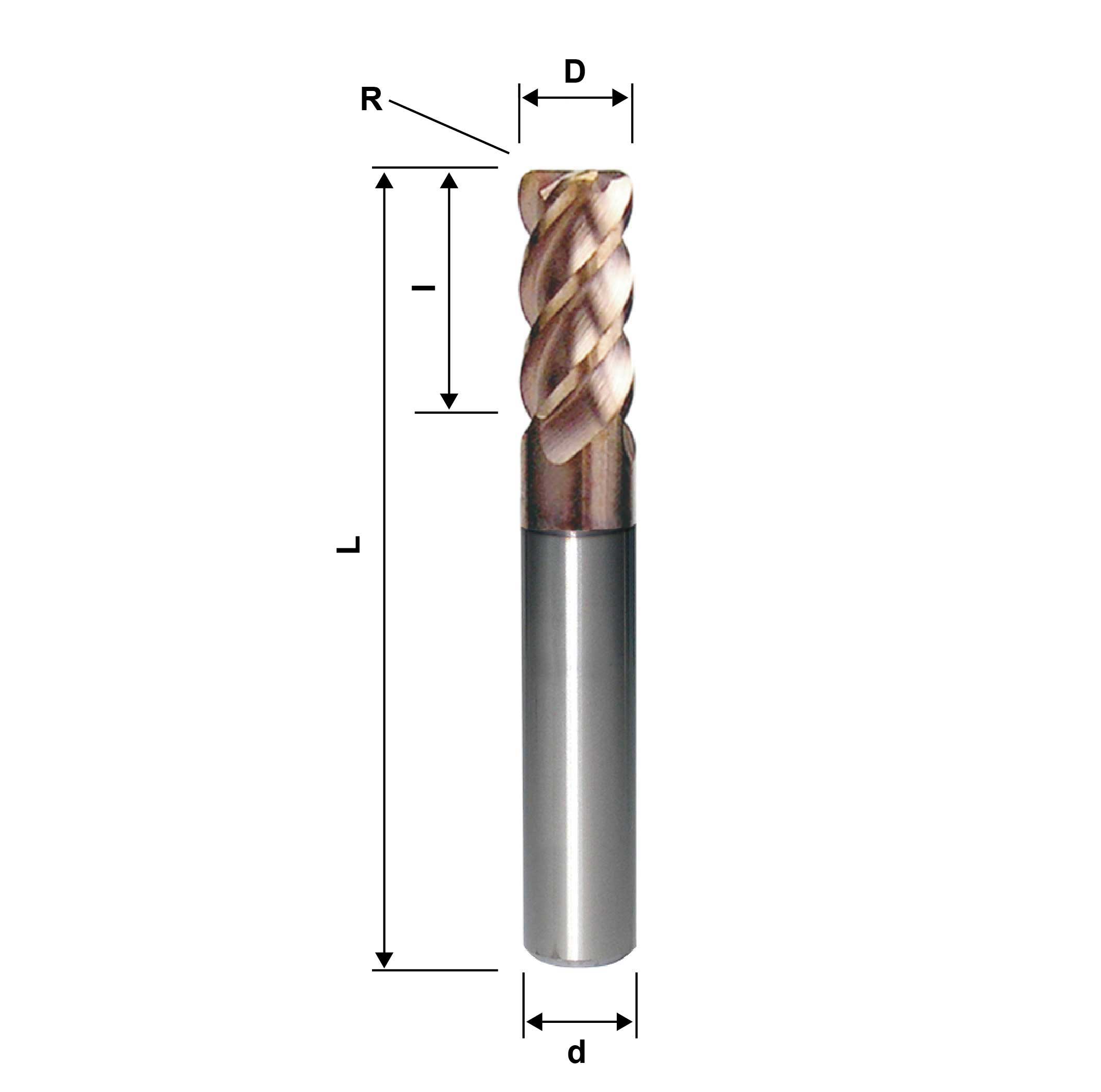

Order Code	2RTA030054
Mill Diameter (D)	3mm x 0.5R 1/8" x0.5R
Length of Cut (I)	6 mm / 1/4"
Number of Flutes (T)	4
Shank Diameter (d)	4 mm / 3/16"
Overall Length (L)	50 mm / 2"

Description

About this product

1. Mill Diameter (D): 3mm x 0.5R / 1/8" x 0.5R 2. Shank Diameter (d): 4mm / 3/16" 3. High Performance: Solid carbide end mill, General steel, Titanium alloy, Carbon steel, alloy steel~HRC45, Stainless steel. 4. Coating: TXM, Good for wet Cutting 5. Carbide Material: Micro Grain 0.6u m/m Co10% Tungsten steel molding,

6. Helix Angle: 45°

Net weight

16g 0.035 lbs

Gross Weight

20g 0.044 lbs

Packing Dimensions

67 x 10 x 14 mm

2.64" x 0.39" x 0.55" Inch

Product name: THE SUN SERIES

Micro Grain 0.6u m/m Co10% Tungsten steel molding,

match TS coating, good at wet cutting,

General steel, carbon steel, alloy steel
