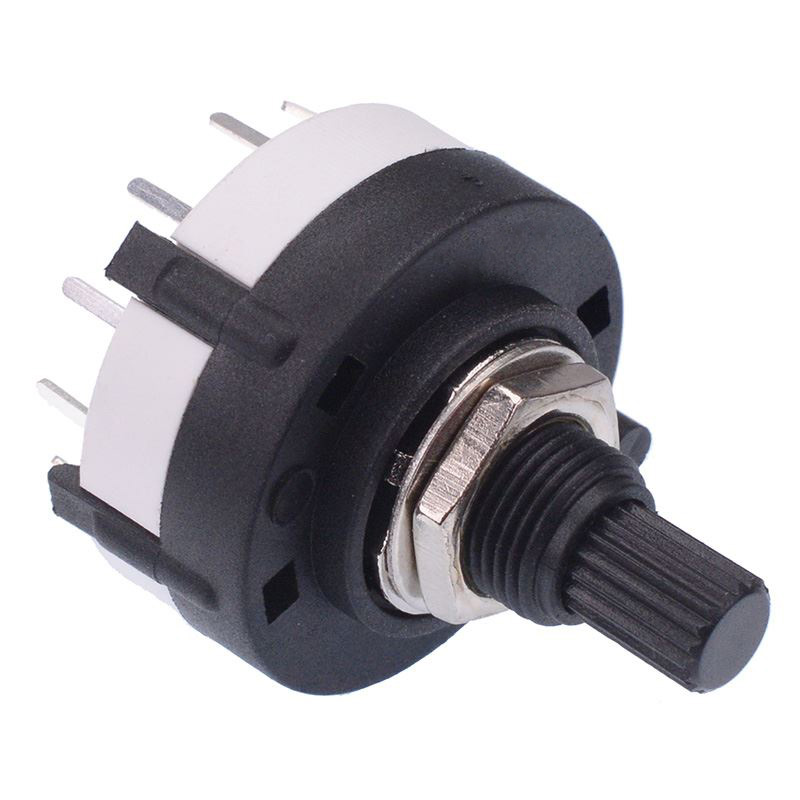

4 Pole 3 Way Rotary Switch Splined Shaft PCB Terminals

Buy Now

Specifications

Attributes List
Contact Configuration	4P3T
Contact Rating	2.5A 125VAC, 0.35A 125VDC
Current Rating	2.5A @ 125VAC
Electrical Life	15,000 Cycles
Material	Nylon
Mounting Style	PCB
Number of Poles	4
Number of Ways	3
Operating Force	400gf
Operating Temperature	-30°C to +85°C
Panel Cut Out	10mm
Terminal Type	Solder
Voltage Rating	125VAC

Description

4 pole break before make rotary switch featuring 3 ways and 18T splined 6mm shaft. The switch features PCB terminals and are suitable for a wide range of through hole applications.

4 pole 3 way

18T splined shaft

PCB terminals

Break before make

7.5mm shaft length

Complete with nut, washer and position stop

Dimensions: 33 x 26mm (Height x Diameter)
