from
$105.00
Ex Tax: $105.00
5 or more $90.00
  • Stock: In Stock
  • Model: SCJ004171
  • SKU: SCJ004171
Products Sold: 0
Product Views: 867
  • Description
40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved 1 set

About this product

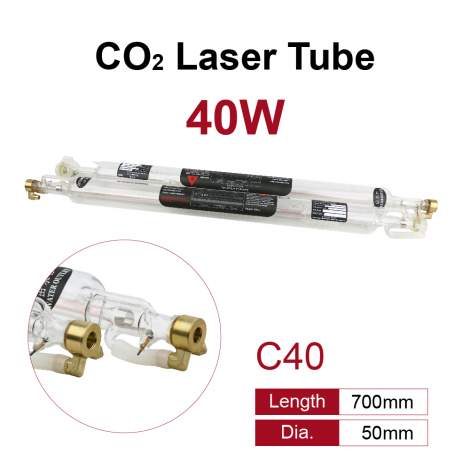

1.Model:C40;Power:40W;Length700mm;Diameter:50mm;Lifespan:5000 hours.
2.Universal model, great replacement for the same power or same length laser tube.You can install it very easy per the drawing on the label of each tube.
3.Advanced manufacturing technology effectively avoids leakage and sparks;High-quality boron silicate glass material,advanced coating technology and full of catalyst in the tube, effectively improve the service life and increase the laser power.
4.In order to make the installation more convenient,the high and low voltage port have been pre-welding and also been connected by the high voltage connector.
5.If it is damaged during transportation, please contact us to provide a new replacement free.

Model#C40

Model# C40 CL80 C80 C100 C130 C150 C170
Rated power(W) 40 80 80 100 130 150 170
Max power(W) 50 100 100 130 150 170 180
Length(mm) 700 1600 1250 1450 1650 1650 1850
Diameter(mm) 50 60 80 80 80 80 80
Catalyze or not yes yes yes yes yes yes yes
Wave length 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um 10.6um
Diode current(mA) 5 5 5 5 6 7 7
Diode voltage(KV) 17 28 23 24 28 30 32
Working voltage 10 18 16 17 18 22 23

Package Content: 1 × Laser Tube
Packing size  : 34.17 × 3.74 × 4.92 In
Gross weight:3.53 lbs
Good package : packing in double carton
FDA certificate is available

Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine.

It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials.

Note: After generally working 3-4 hours, it should pause for about 30 minutes.

High warranty and long lifespan co2 laser tube 40W (700mm × 50mm )

40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved

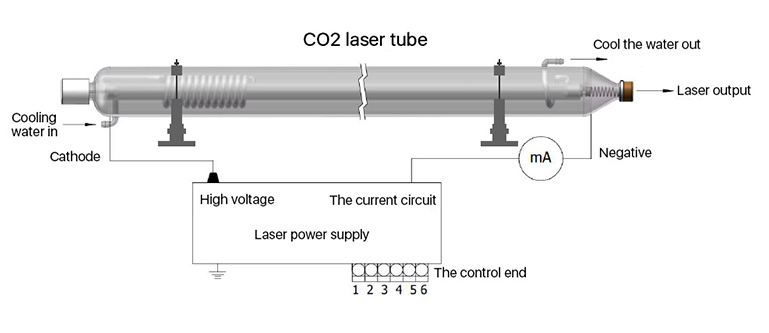

Installation Drawing

40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved

40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved 40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved 40W CO2 Laser Tube 700mm Long 50mm Diameter With Metal Head 5000hr Service Life for Laser Engraver Cutter Laser Engraving Machine FDA Approved
