45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set

45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
from
$12,000.00
Ex Tax: $12,000.00
  • Stock: In Stock
  • Model: SCJ006681
  • SKU: SCJ006681
Products Sold: 0
Product Views: 214

Available Options

  • Specifications
Other attributes
ConditionNew
Power SourceMechanical
CNC or NotCNC
Place of OriginGuangdong, China
warranty:1 Year
Weight (T)45
Key Selling PointsHigh-accuracy
Showroom LocationIndia, Malaysia
Applicable Industries:Manufacturing Plant, Other
Marketing TypeOrdinary Product
Machinery Test ReportNot Available
Video outgoing-inspectionProvided
Warranty of core components1 Year
Core ComponentsMotor, PLC, Other
Motor Power (kw)5.5kw
Slide Stroke (mm)60mm
Model NumberAPA-45E
Voltage380V
Dimension(L*W*H)1600*950*2555mm
Speed changing40-100 s.p.m
Die cushion capacity2.3ton
Slide area560*300*60mm
Bolster area850*440*80
Machine TypePunching Machine
Die cushion effective area300*230mm
Die Height290
Weight3.8 ton
Packaging and delivery
Packaging DetailsFilm package
PortShenzhen Port
Supply Ability
Supply Ability10 Set/Sets per Month
  • Description
45 Ton metal coil punching press machine mechanical hole stamping machine for sale 1 set
Product Description

 Specification

Model

Unit

APA-25E

APA-45E

APA-60E

APA-80E

Capacity

Ton

25

45

60

80

Rated tonnage point

mm

3

4

4

4

Stroke

mm

10.5-100

11.5-110

12.5-120

12.5-120

Speed changing

s.p.m

70-120

40-100

35-90

35-80

Die height

mm

250

290

300

300

Slide adjustment

mm

50

60

75

80

Slide area

mm

470x230x50

560x300x60

700x360x70

770x420x70

Bolster area

mm

680x300x70

850x440x80

900x500x80

1000x550x90

Shank hole

mm

38.1

38.1

50

50

Main motor

kw.p

3.7x4

5.5x4

5.5x4

7.5x4

Slide adjust device

HP

manual operation

electrial driving

Air pressure

kg/cm2

6

Press precision



GB/JIS 1 class

Presses dimension

mm

1280x850x2270

1600x950x2555

1595x1000x2790

1800x1100x2745

Weight

Ton

2.1

3.8

5.6

6.5

Die cushion capacity

Ton

-

2.3

3.6

3.6

Stroke

mm

-

50

70

70

Die cushion effective area

mm2

-

300x230

350x300

450x310

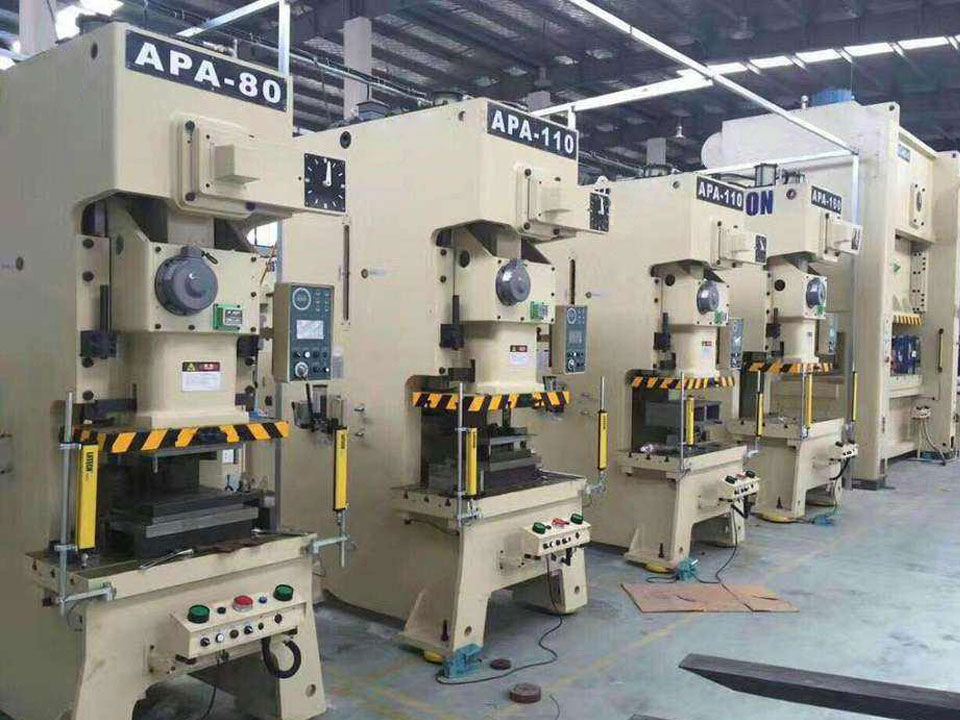

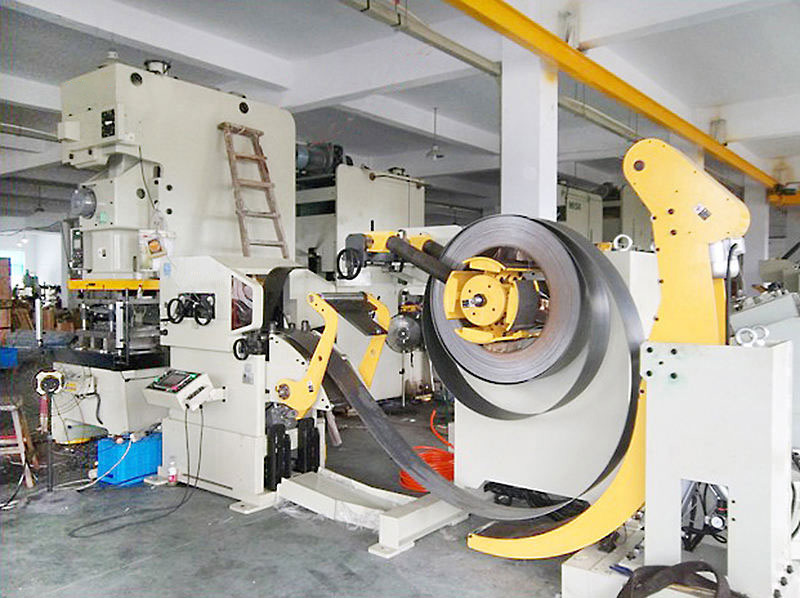

Detailed Images

 45 Ton metal coil punching press machine mechanical hole stamping machine for sale45 Ton metal coil punching press machine mechanical hole stamping machine for sale
