45mm Lever V4 Miniature Microswitch SPDT 5A

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Electrical Life	50,000 Cycles
Number of Positions	2
Operating Force	4.5N Max
Operating Temperature	-25°C to +85°C
Terminal Type	Through Hole
Voltage Rating	250VAC

Description

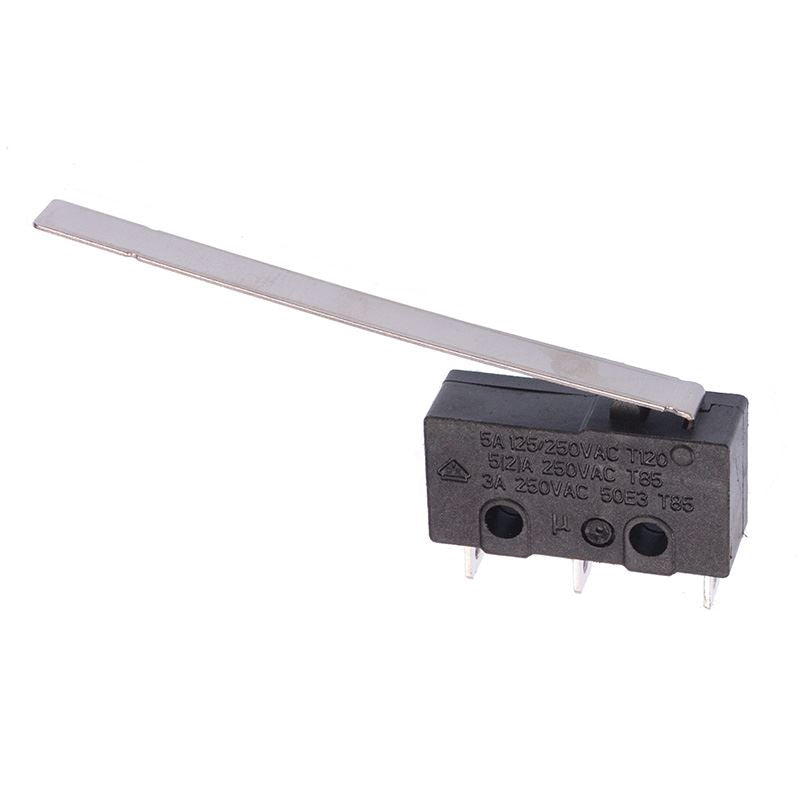

45mm Lever V4 Miniature Microswitch SPDT 5A
Miniature microswitch featuring a 45mm lever actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and solder terminals making them useful for a wide range of applications including industrial and domestic.

45mm lever actuator

Rating: 5A 250VAC

NO / NC contacts

Solder terminals

Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
