45mm Spherical Roller Bearing Double Row 1pc

45mm Spherical Roller Bearing Double Row 1pc
45mm Spherical Roller Bearing Double Row 1pc
45mm Spherical Roller Bearing Double Row 1pc
45mm Spherical Roller Bearing Double Row 1pc
45mm Spherical Roller Bearing Double Row 1pc
from
$81.85
Ex Tax: $81.85
  • Stock: In Stock
  • Model: SCJ009697
  • SKU: SCJ009697
Products Sold: 0
Product Views: 281
  • Description

45mm Spherical Roller Bearing Double Row 1pc

Brief

Lower cost double row spherical roller bearing features an inner diameter of 45mm, an outer diameter of 90mm and a width of 33mm, P5 accuracy class. The high-speed spherical roller bearing has the advantages of small size, low noise ad long service life.

Description

High-accuracy SOCOJE spherical roller bearing with a 45mm inner diameter, an outer diameter of 90mm, width of 33mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. The double-row spherical roller bearing is suitable for applications that support high radial and oscillating axial loads.

Specification

  • Model: ATO-22309
  • Inner diameter: 45mm
  • Outer diameter: 90mm
  • Width: 33mm
  • Accuracy class: P5
  • Oil lubrication limit speed: 3100 rpm
  • Grease lubrication limit speed: 2300 rpm
  • Cr: 1407 kN
  • Cor: 2860 kN
  • Bearing material: Bearing steel

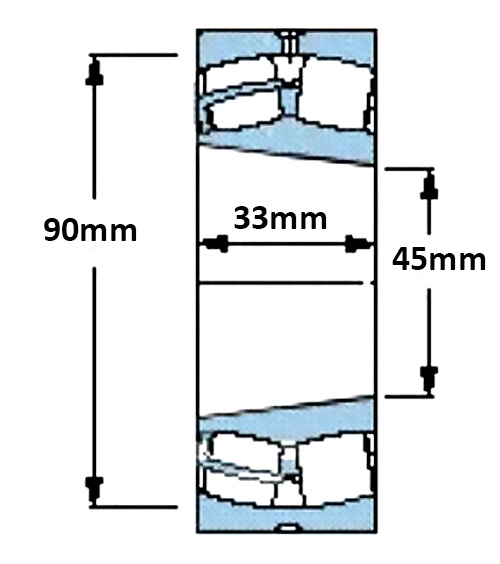

Dimension (mm)

45mm Spherical Roller Bearing, Double Row

Application

45mm Spherical Roller Bearing, Double Row

Tips: Spherical roller bearing vs. cylindrical roller bearing

Roller bearings are one type of bearing that uses rolling elements to support loads. These rolling elements, called rollers, can be cylindrical, needle-shaped, or spherical. Roller bearings can support heavy radial loads and moderate thrust loads in either direction. Cylindrical roller bearings are a subset of roller bearings that have cylindrical-shaped rollers. These rollers are typically wider than they are long and they have a barrel-shaped profile. Cylindrical roller bearings can support heavy radial loads and high thrust loads in one direction.
