5/16" Dia, 4 Flute, R4, Solid Carbide Ball Nose End Mill 1pc

Buy Now

Specifications

attribute-list

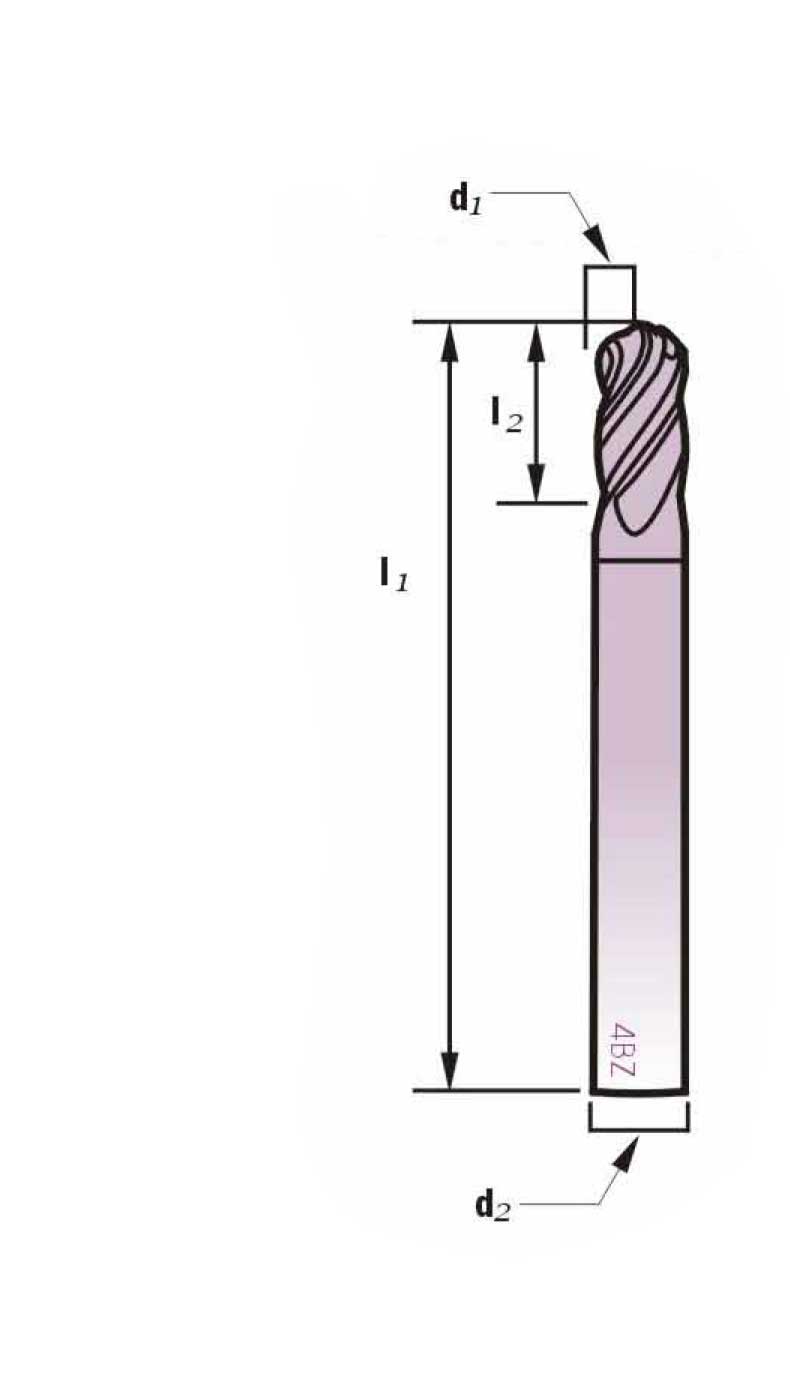

Order Code	4BZ080
Φd1 (h10)	R4 mm
I2	5/8"(16mm)
I1	2 3/8"(60mm)
Φd2(h6)	5/16" (8mm)

Description

5/16" Dia, 4 Flute, R4, Solid Carbide Ball Nose End Mill 1pc

About this product

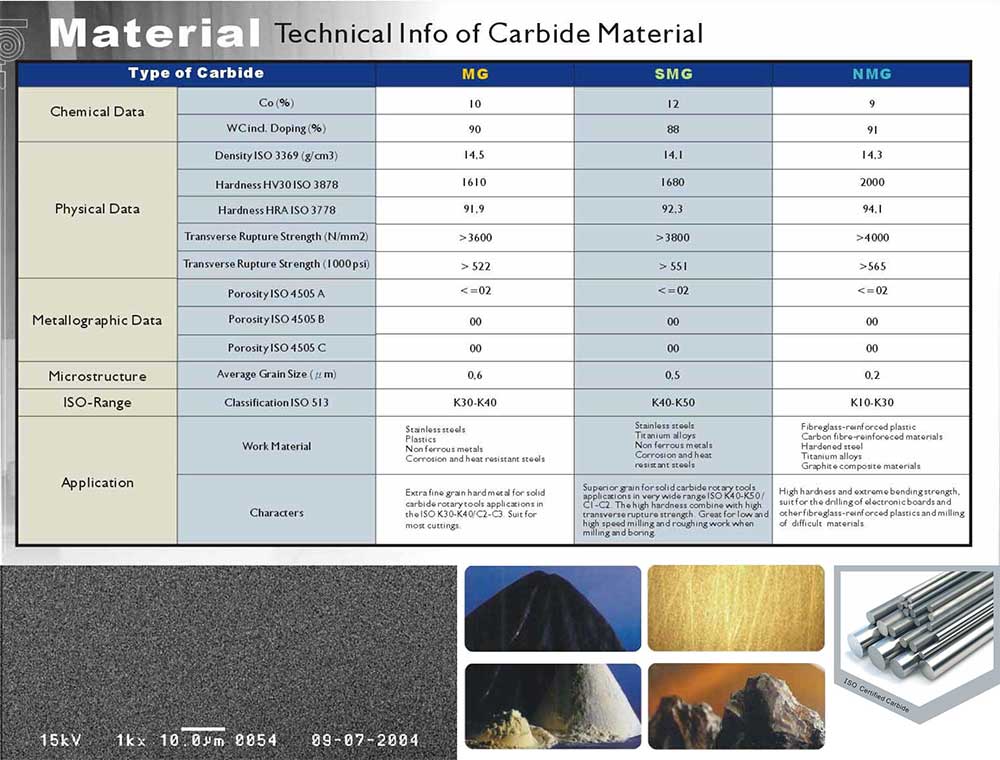

1. Chemical Data : Co(%):9/WC incl.Doping(%):91
2. Density ISO 3369 (g/cm3) : 14.3
3. Hardness HV30 ISO 3878 : 2000
4. Hardness HRA ISO 3778 : 94.1
5. Transverse Rupture Strength (N/mm2) : >4000
6. Transverse Rupture Strength (1000 psi) : >565
7. Microstructure : 0.2
8. ISO-Range: K10~K30
9. Work Material : Carbon fiber-reinforced material, Hardened steel, Titanium alloys, Graphite composite materials, Fiberglass-reinforced material

Net eight	42 g / 0.09 Ibs
GrossWeigh	45 g / 0.099 Ibs
PackingSize	13 x13 x 67 mm / 0.51 x 0.51 x 2.64 Inch

Material:

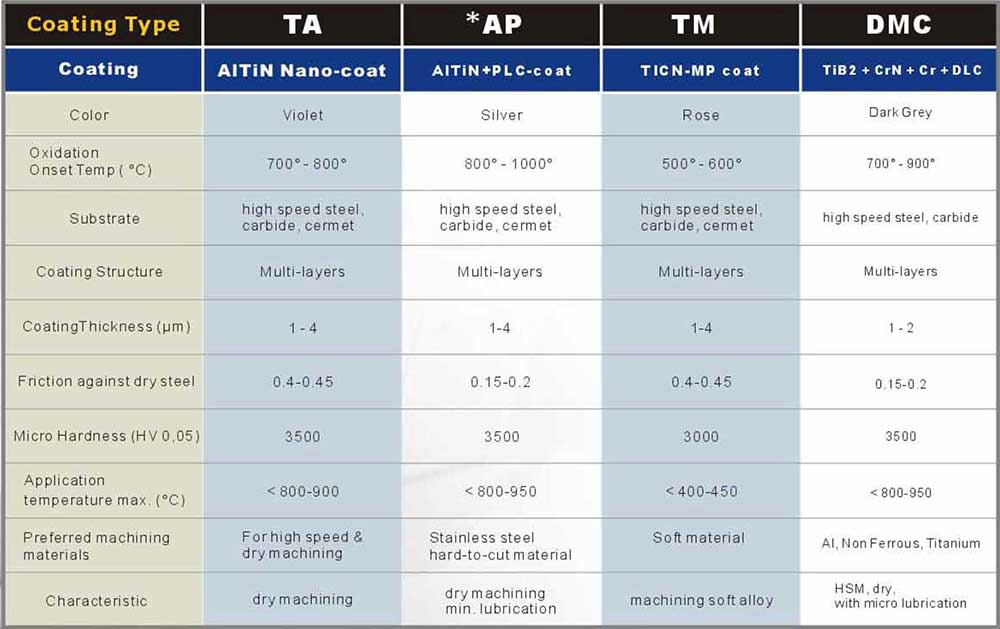

Coating:

Work Material:
