CO2 Laser Engraver Cutter Machine

Buy Now

Specifications

attribute-list
Laser Power	50W
Working Area	19 ¹¹/₁₆" ×11 ¹³/₁₆" (500 mm × 300 mm)
Laser Type	CO2 Sealed Glass 10.64 um
COOLING TYPE	Circulating Water Cooling and Protection System
Worktable	± 10" Electric Up & Down Aluminum Platform
Engraving Thickness	0 - 3/8" (0 - 10 mm) depends on material
Cutting Thickness	0 - 3/8" (0 - 10 mm) depends on material
Locating Precision	± 0.01 mm
Resolution ratio	≤ 1,000 dpi
Min. Character Size	1 mm × 1 mm
Min. Character Letter	2 mm × 2 mm
Operating Temperature	41 ℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	3/8"/s (10 mm/s)
Max. ENGRAVING SPEED	23-5/8"/s (600 mm/s)
System Environment	Windows XP/2000/7/8/10/11/12
Graphic Format Supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)

Description

50W 19 ¹¹/₁₆" ×11 ¹³/₁₆" CO2 Laser Engraver Cutter Machine With Auxiliary Rotary Compatible With Light Burn Software Autofocus Tool 1pc

About this product

1. Laser Power: CO2 Sealed Glass 50W

2. Working Area:19 ¹¹/₁₆" ×11 ¹³/₁₆" (500 mm × 300 mm)

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10/11/12

6.Autofocus Tool

7.Compatible With LightBurn Software

Packaging Method	Wooden Crate
Machine Dimension	40 ¹⁵/₁₆" L × 25 ⁶³/₆₄" W × 24 ¹/₆₄" H
Machine Weight	165 lbs
Package Dimension	46 ²⁷/₃₂" L × 31 ¹/₂" W × 34 ⁴¹/₆₄" H
Package Weight	231 lbs

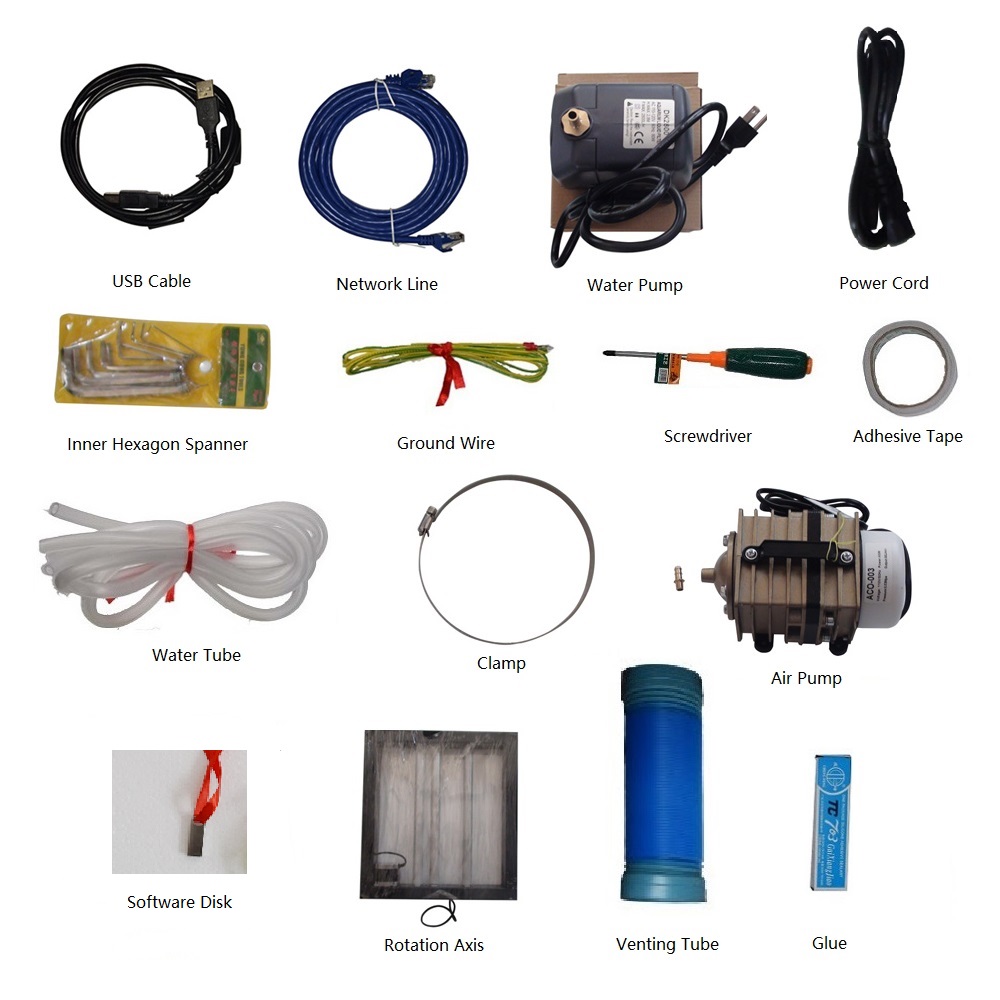

Package Included:

1 x CO2 Laser Engraver

1 x Air Pump

1 x Water Pump

1 x Set of Inner Hexagon Spanner

1 x Venting Tube

1 x Water Tube

1 x Screwdriver

1 x Power Cord

1 x Clamp

1 x Operation Manual

1 x USB Cable

1 x Ground Wire

1 x Screwdriver

1 x Glue

1 x Adhesive Tape

1 x Network Line

1 x Rotation Axis

This 50W water cooling CO2 laser engraver is suitable for the majority of smooth surface and has a red dot pointer to make even more precise engravings. The Rotation axis enables you to engrave cylindrical objects such as cups or musical instruments.
Machine supports multiple graphic formats (please see Technical Detailss) but only compatible with Win XP/2000/7/8/10/11/12. USB port connect to computer. The software is fully compatible with Core Laser, RDworksV8 & CAD Laser. None of these software is included in the package.

Features:

1. Quality CNC machined parts for durability Guaranteed

2. Upgraded control board for more accurate currency adjustments

3. Rotation axis enables you to engrave cylindrical objects

4. USB port to connect the engraver

5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)

6. FDA certified

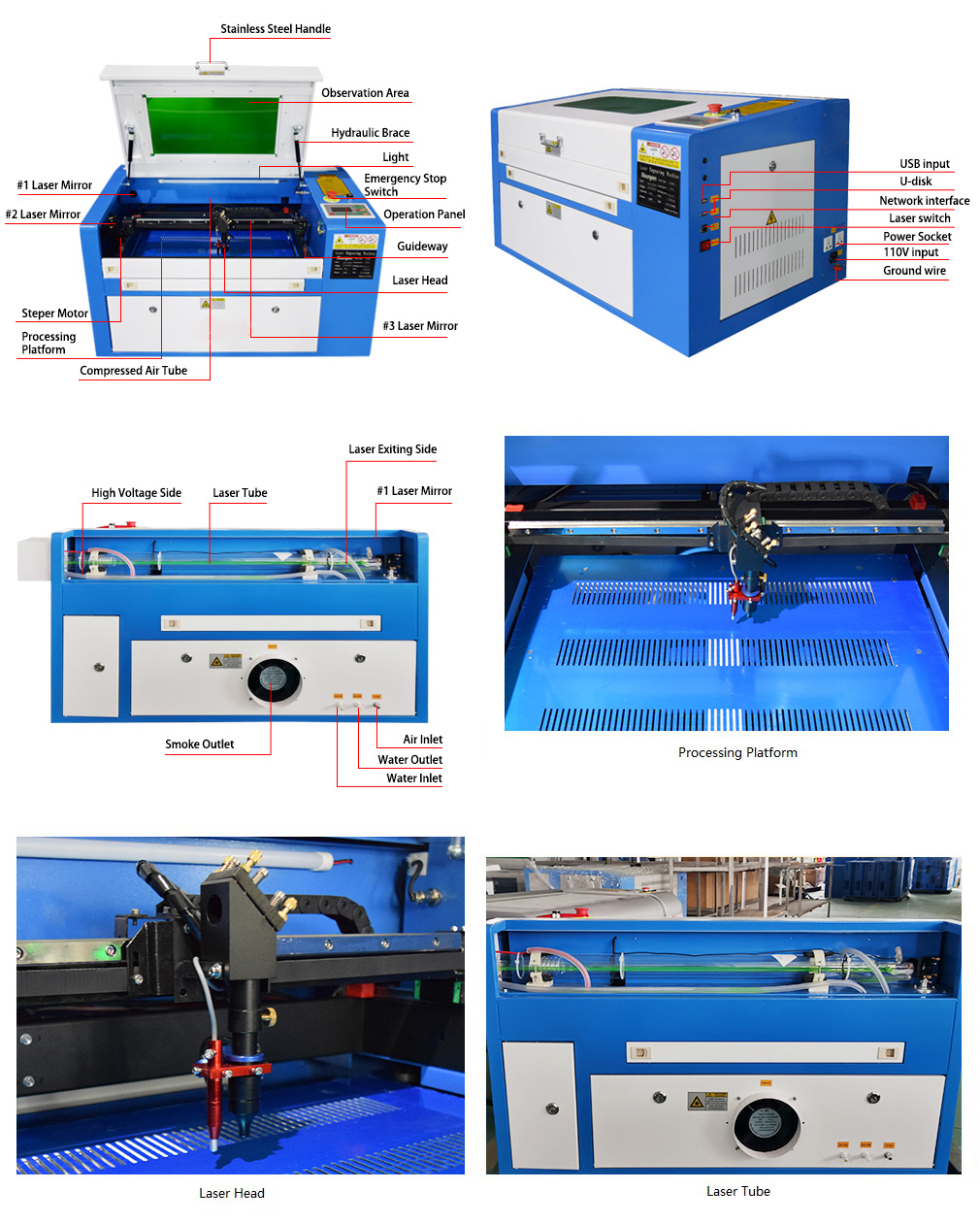

Product Illustration

Accessories
