50W 5040 Laser Engraving Machine 20" x 16" Cutter for Wood Acrylic FDA 1pc
from
$910.00
Ex Tax: $910.00
- Stock: In Stock
- Model: SCJ004092
- SKU: SCJ004092
Products Sold: 0
Product Views: 188
Ask a Question About This Product
- Specifications
attribute-list | |
Voltage | 1 phase 110 V ± 10%, 60 Hz |
Laser Power | 50w |
Power | 300w |
Working Area | 20" x 16 " (500 x 400mm) |
Laser Type | CO2 Sealed Glass 10.64 um |
Laser Tube Brand | SOCOJE |
Water Chiller | No |
Worktable | Honeycomb (Electric Lifting platform) |
Control system | M2 |
Lifting Worktable | Yes (Electric Lifting platform) |
Motor & Driver | 42 Stepper |
Worktable Lift Depth | 5-7/8" (150mm) |
Engraving Thickness | 0 - 3/16" (0 - 5 mm) depends on material |
Max. Engraver Speed | 23-5/8 inch/s (600 mm/s) |
Locating Precision | ± 0.0004" (0.01mm) |
Resolution ratio | ≤ 1,000 dpi |
Rotation Axis | Options |
Focus Mode | Red Light Focusing |
Min. Character Letter | 1 mm × 1 mm |
Operating Temperature | 41℉ - 122 ℉ (5 ℃- 50 ℃) |
Data Transfer Interface | USB 2.0 |
Max. CUTTING SPEED | 4 inch/s (100 mm/s) |
System Environment | Windows XP/2000/7/8/10 |
Guides | Wheel guide |
Color Separation | no |
Max. Current | 6A |
Graphic format supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
Cutting thickness | 0 - 25/64" (0 - 10 mm) depends on material |
Life time of laser tube | 2000-2500 hours |
Certificate: | CE, FDA |
Cooling Mode | Water Cooling |
Water Pump | Yes |
Air Pump | Yes |
- Description
50W 5040 Laser Engraving Machine 20" x 16" Cutter for Wood Acrylic FDA 1pc
About this product
1. Laser Power: CO2 Sealed Glass 50W
2. Working Area: 20" x 16"
3. Certification: FDA Certified
4. Power Supply: AC 110 V ± 10%, 60 Hz
5. System Environment: Windows XP/2000/7/8/10
6. Electric Lifting platform
7. Control System: M2
8. Red light indicates positioning
9. Air pump
1) Overall use of industrial design spare parts, quality stability.
2) Porcelain oxidation guide, wheel structure, low resistance, easy to debug
3) Using M2 Nano motherboard, Direct output using CorelDraw software
4) Adopt open design, can process the sheet of longer than 100cm, can before and after through processing.
5) With moving universal wheel, removable, small package size, low shipping cost, high cost performance.
This machine has red and white models and blue and white models, the spot is red and white models, there is no difference in description page color
Show details

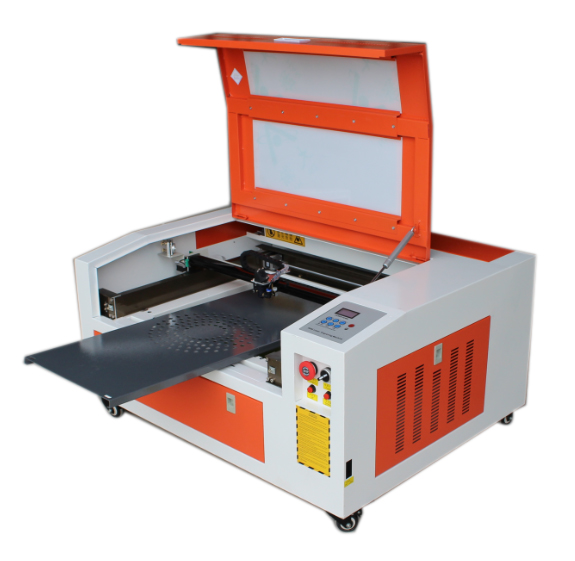

Open design,can process longer items extended on the front of the machine
