50W Desktop Fiber Laser Marking Engraving Machine With EZcad FDA
from
$8,199.00
Ex Tax: $8,199.00
- Stock: In Stock
- Model: SCJ004164
- SKU: SCJ004164
Products Sold: 0
Product Views: 206
Ask a Question About This Product
- Specifications
attribute-list | |
Speed | 472.44''in/s(12000mm/s) |
Laser Source | Optical maser |
Laser Wavelength | 1064nm |
Marking Area | 6.8''x6.8" (175 x 175mm) |
Output Power | 50W |
Modulation frequency range | 5%-100% |
Minimum height of characters | 0.007''in(0.2mm) |
GROSS WEIGHT | 345LB |
Precision | 0.00003''in(0.001mm) |
Laser power supply | AC220V(110V)/60HZ/2A |
Minimum line width | 0.0005''in(0.013mm) |
Working Temperature | 5℃-43℃ |
Laser lifetime | >100000 hours |
Cooling Way | Air cooling |
Graphic format supported | All kinds of Chinese and English fonts, vector graphics PLTDXF files, dot matrix graphics BMP files, sequence numbers (automatic sequence coding), bar codes and two-dimensional codes. |
Net weight | 209LB |
- Description
About this product
1. Laser Power for the Fiber Laser Marking : Fiber Laser 50W
2. Marking area: 6.9" x 6.9", Engraving Depth:≤1mm(0.024in)
3. Certification: FDA
4. The device supports Win7, Win10, 32Bit & 64Bit
5. Software: EZcad, Stable performance and high reliability.
Packaging Method | Wooden |
Package Dimension | 31-1/2" L × 25-3/5" W × 57H (1270 mm × 960 mm × 810 mm) |
Package Weight | 302 lbs (137kg) |

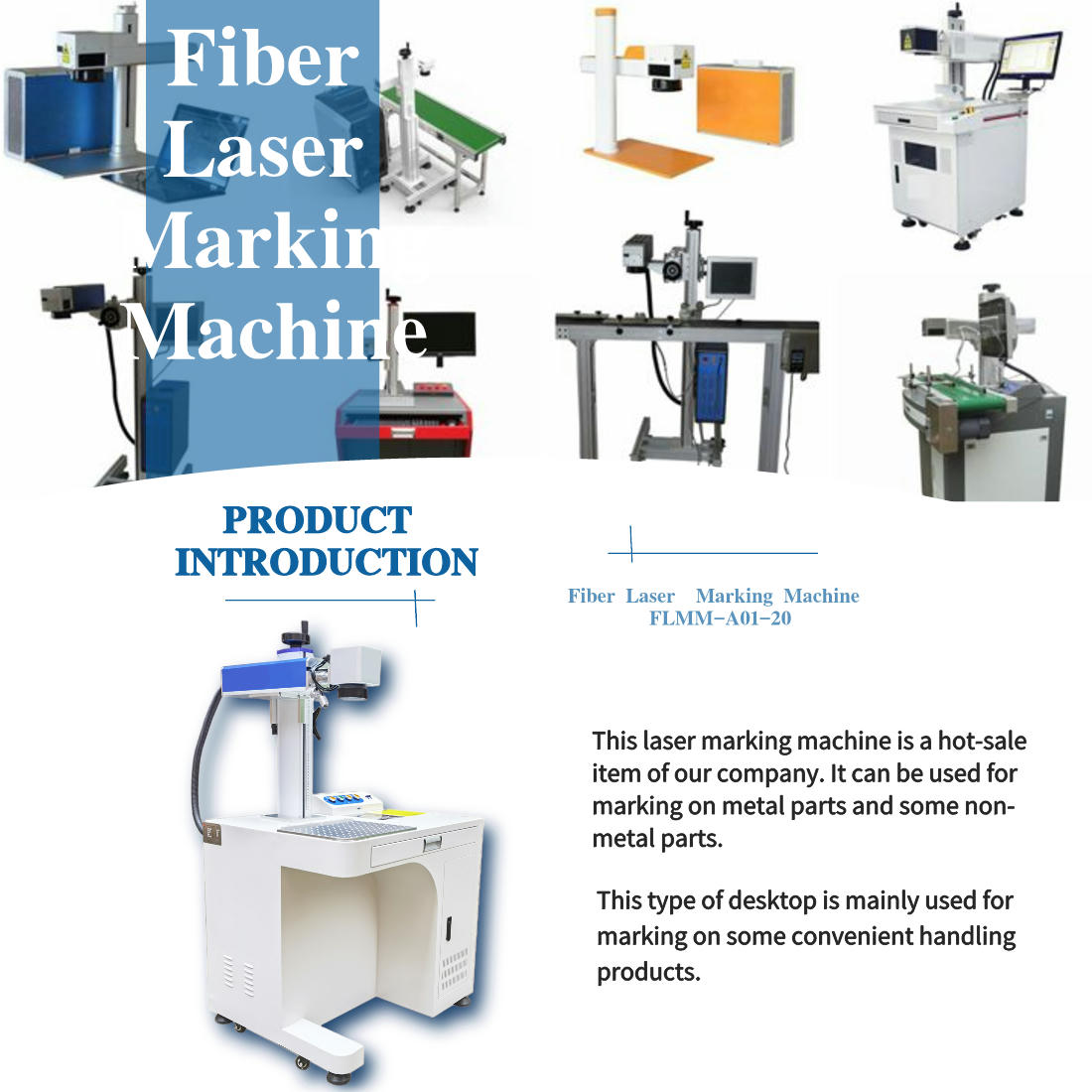

50W Fiber Laser Marking Machine
The laser engraving machine is using the laser beam to mark a permanent mark on a variety of different material surfaces. Or through the light of the physical changes in the surface material, "carved" traces, or through the light burning part of the material, showing the required etching pattern, text, bar code, and other types of graphics. It can be widely used in many fields, such as integrated circuit chip graphics, computer accessories, industrial bearings, watches, electronic and telecommunication products.
Features:
1. FDA certified
2. Adjustable marking height and position, flexible.
3. Adjustable marking height and position, flexible.
4. Service life is able to reach 100,000 hours.
