50mm Spherical Roller Bearing Double Row 1pc

spherical roller bearing comes with an inner diameter of 50mm, outer diameter of 90mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. Pressed steel cage of roller bearing has high wear resistance and spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise.

Specification

• Model: ATO-22310
• Inner diameter: 50mm
• Outer diameter: 110mm
• Width: 40mm
• Accuracy class: P5
• Oil lubrication limit speed: 2600 rpm
• Grease lubrication limit speed: 2300 rpm
• Cr: 1407 kN
• Cor: 795 kN
• Bearing material: Bearing steel

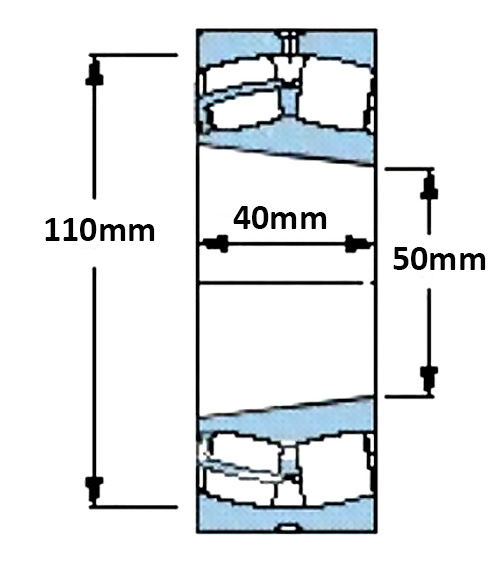

Dimension (mm)

Application

Tips: What is Spherical Roller Bearing?

Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle error or shaft bending of the shaft and the bearing housing, and is suitable for installation errors or shaft deflection that cause angle errors. In addition to bearing radial loads, the bearing can also bear axial loads acting in both directions.
