51 ³/₁₆x 35 ⁷/₁₆ Inches 130W CO2 Laser Engraver Machine Auto Focus With Ruida DSP RDWorks V8 Compatible With LightBurn Software

Buy Now

Specifications

attribute-list
Laser Power	130W
Working Area	51 ³/₁₆"x 35 ⁷/₁₆" (1300 mm × 900 mm)
Laser Type	CO2 Sealed Glass 10.64 um
COOLING TYPE	Circulating Water Cooling and Protection System
Worktable	± 20" Electric Up & Down Aluminum Platform
Engraving Thickness	0 - 3/8" (0 - 10 mm) depends on material
Cutting Thickness	0 - 3/8" (0 - 10 mm) depends on material
Locating Precision	± 0.01mm
Resolution ratio	≤ 1,000 dpi
Min. Character Size	1 mm × 1 mm
Min. Character Letter	2 mm × 2 mm
Operating Temperature	41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	15-3/4"/s (400 mm/s)
Max. ENGRAVING SPEED	11-3/4"/s (300 mm/s)
System Environment	Windows XP/2000/7/8/10/11/12
Graphic Format Supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation	Up To 256 Colors

Description

About this product

1. Laser Power for Laser Engraver Machine : CO2 Sealed Glass 130W

2. Working Area: 51 ³/₁₆"x 35 ⁷/₁₆" (1300 mm × 900mm)

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10/11/12

6. Water chiller and rotation axis included

Packaging Method	Wooden Crate
Machine Dimension	71-5/8" L × 52-1/8" W × 42-1/8" H (1,820 mm × 1,325 mm × 1,070 mm)
Machine Weight	-
Package Dimension	76-3/8" L × 57" W × 51-1/4" H (1,940 mm × 1,450 mm × 1,300 mm)
Package Weight	981 lbs (445kg)

Package Included

1 x Air Pump

1 x Water Chiller MP5000

1 x Set of Inner Hexagon Spanner

2 x Venting Tube

1 x Water Tube

1 x Screwdriver

1 x Power Cord

3 x Clamp

1 x Operation Manual

1 x USB Cable

1 x Ground Wire

1 x Screwdriver

1 x Glue

1 x Adhesive Tape

1 x Network Line

1 x Exhausting Fan

1 x Rotation Axis

Considering voltage fluctuations in different areas. We strongly recommend that power exhausting fans individually instead of plug on the machine.

51 ³/₁₆x 35 ⁷/₁₆ Inches 130W CO2 Laser Engraver Machine Auto Focus With Ruida DSP RDWorks V8 Compatible With LightBurn Software

The Laser Engraver Machine is a laser engraver and cutter equipped with 130W CO2 laser tube. It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software.
This machine is widely applicable in many Industries, including advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

Features:

1. Quality CNC machined parts for durability Guaranteed

2. Upgraded control board for more accurate currency adjustments

3. Powerful exhausting fan for fumes and smoke extraction

4. USB port to connect the engraver

5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)

6. FDA certified

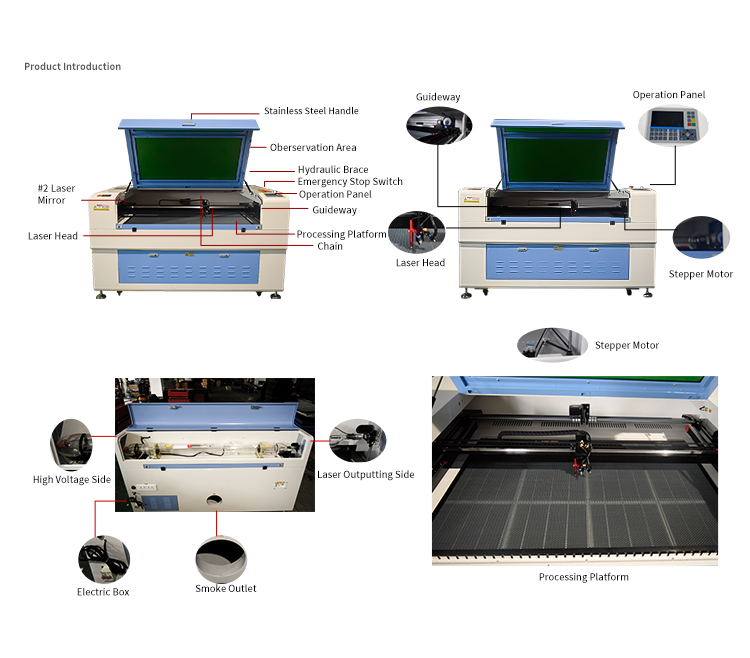

Product Introduction
