51 ³/₁₆x 35 ⁷/₁₆ Inches 130W Reci CO2 Laser Engraver Cutter Machine With Ruida DSP RDWorks V8 Compatible And LightBurn Software

Buy Now

Specifications

attribute-list
Laser Power	RECI W6 130W
Working Area	51 ³/₁₆x 35 ⁷/₁₆ Inches (1300 mm × 900 mm)
Laser Type	RECI W6 CO2 Sealed Glass Tube
COOLING TYPE	Circulating Water Cooling and Protection System
Worktable	± 20" Electric Up & Down Aluminum Platform
Engraving Thickness	0 - 3/8" (0 - 10 mm) depends on material
Cutting Thickness	0 - 3/8" (0 - 10 mm) depends on material
Locating Precision	± 0.01mm
Resolution ratio	≤ 1,000 dpi
Min. Character Size	1 mm × 1 mm
Min. Character Letter	2 mm × 2 mm
Operating Temperature	41℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface	USB 2.0
Max. CUTTING SPEED	15-3/4"/s (400 mm/s)
Max. ENGRAVING SPEED	11-3/4"/s (300 mm/s)
System Environment	Windows XP/2000/7/8/10
Graphic Format Supported	Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Color Separation	Up To 256 Colors

Description

About this product

1. Laser Power: 130W RECI W6 CO2 Sealed Glass Tube

2. Working Area for the engraver machine:51 ³/₁₆x 35 ⁷/₁₆ Inches

3. Certification: FDA Certified

4. Power Supply: AC 110 V ± 10%, 60 Hz

5. System Environment: Windows XP/2000/7/8/10

6. CW5000 Chiller and Rotation Axis included

Packaging Method	Wooden Crate
Machine Dimension	71-5/8" L × 52-1/8" W × 42-1/8" H (1,820 mm × 1,325 mm × 1,070 mm)
Machine Weight	-
Package Dimension	76-3/8" L × 57" W × 51-1/4" H (1,940 mm × 1,450 mm × 1,300 mm)
Package Weight	981 lbs (445kg)

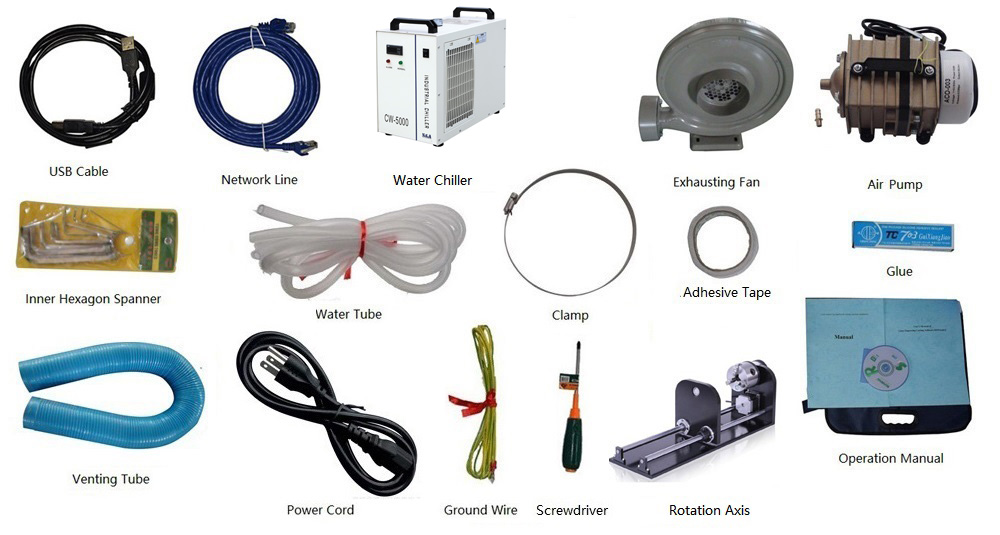

Package Included:

1 x Air Pump

1 x Water Chiller MP5000

1 x Set of Inner Hexagon Spanner

2 x Venting Tube

1 x Water Tube

1 x Screwdriver

1 x Power Cord

3 x Clamp

1 x Operation Manual

1 x USB Cable

1 x Ground Wire

1 x Screwdriver

1 x Glue

1 x Adhesive Tape

1 x Network Line

1 x Exhausting Fan

1 x Rotation Axis

Considering voltage fluctuations in different areas. We strongly recommend that power exhausting fans individually instead of plug on the machine.

51 ³/₁₆x 35 ⁷/₁₆ Inches 130W Reci CO2 Laser Engraver Cutter Machine With Ruida DSP RDWorks V8 Compatible With LightBurn Software

The laser cutting mchine is a laser engraver and cutter equipped with Famous Brand and High Quality RECI W6 130W CO2 laser tube. It is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
The laser engraver machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software.
The laser cutter machine is widely applicable in many Industries, including advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

Features:

1. Quality CNC machined parts for durability Guaranteed

2. Upgraded control board for more accurate currency adjustments

3. Powerful exhausting fan for fumes and smoke extraction

4. USB port to connect the engraver

5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)

6. FDA certified

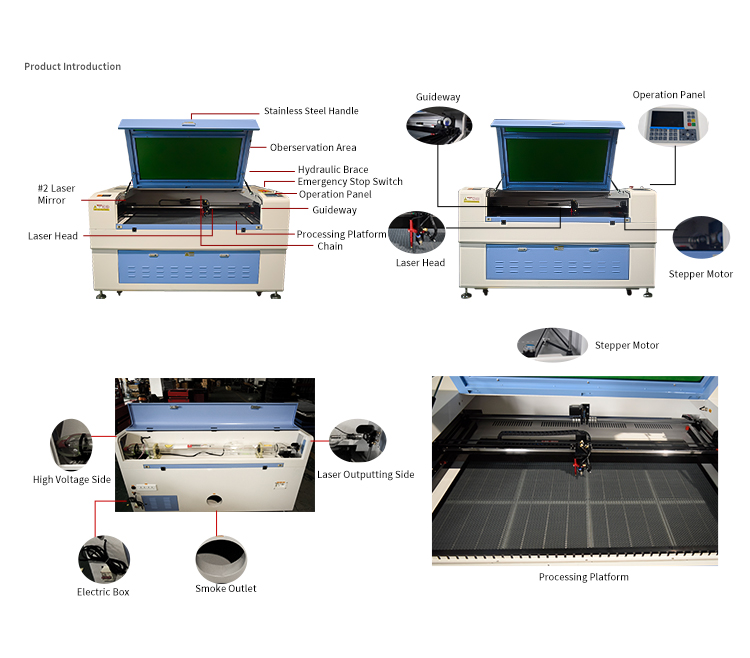

Product Illustration
