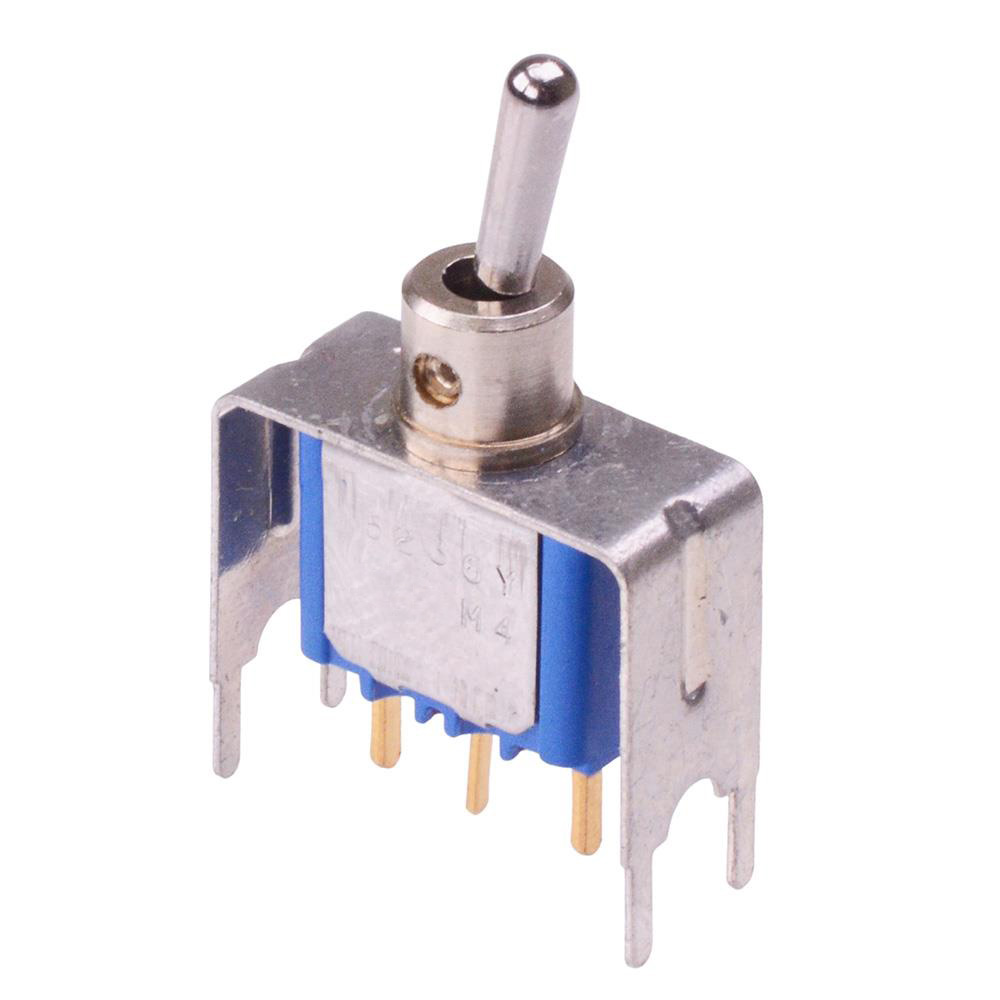

5236Y6CDB17 On-On Miniature PCB Toggle Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4VA 20VAC/DC
Current Rating	0.4VA
Illuminated	No
Electrical Life	50,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to +85°C
Pitch	4.7mm
Product Series	5000
Switch Operation	On-On
Terminal Type	Through Hole
Voltage Rating	20VAC/DC

Description

5236Y6CDB17 On-On Miniature PCB Toggle Switch SPDT
The 5236Y6CDB17 is a miniature toggle switch featuring a plain bushing and On-On SPDT contacts, from the socoje 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

SPDT contacts

On-On operation

Bracket mounting

PCB terminals

Lever: round 7mm length

4.7mm pitch terminal spacing

Rating: 0.4VA 20VAC/DC

Epoxy sealed terminals

socoje 5000 series
