On-On Miniature Toggle Switch Locking Lever DPDT - 5246AKB2V
from
$14.36
Ex Tax: $14.36
10 or more $12.78
25 or more $12.06
50 or more $11.35
100 or more $10.77
- Stock: In Stock
- Model: SCJ014953
- SKU: SCJ014953
Products Sold: 0
Product Views: 17
Ask a Question About This Product
- Description

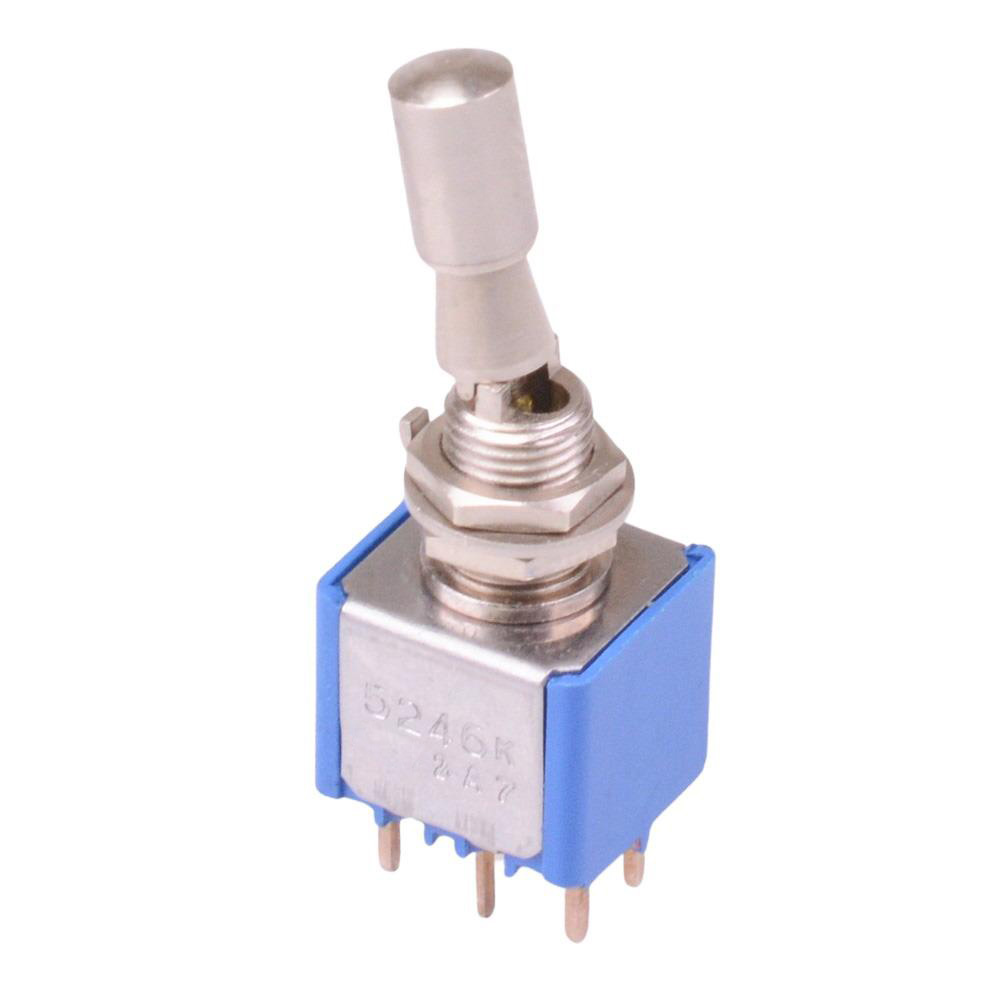

On-On Miniature Toggle Switch Locking Lever DPDT - 5246AKB2V
The 5246AKB2V is a miniature toggle switch featuring On-On DPDT contacts, from the socoje 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.
PCB solder terminals Contact rating: 4A 30VDC Panel cut-out: 6.5mm 2 position locking lever Silver contacts Epoxy sealed terminals Front panel sealing by one O-ring and washer 14.75mm length lever Terminal pitch: 4.75 x 4.7mm Body dimensions: 13.2 x 12.0 x 13.3mm (length x width x height) UL, CSA, CECC approved socoje 5000 series
